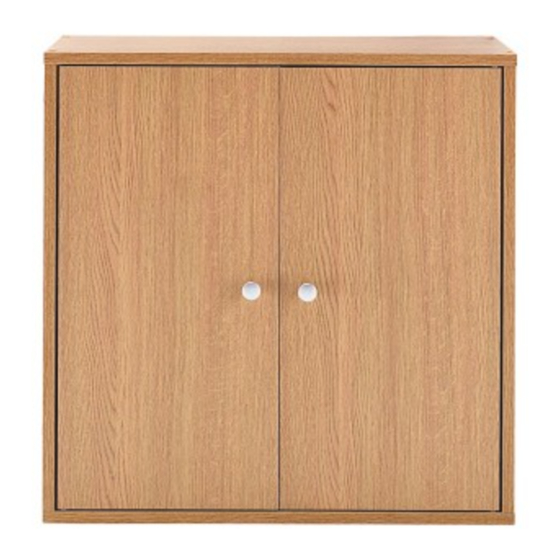

Boston Basic Modular 2 Door
Assembly Instructions
Dimensions
Width - 60cm
Depth - 30cm
Height - 60cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please keep for future reference
609/0045
609/2603
610/8913
413/6293
402/9568
Version 3 Date: 19/03/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 609/0045
Summary of Contents for Argos 609/0045
- Page 1 Width - 60cm Depth - 30cm Height - 60cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 3 Date: 19/03/15...
-
Page 2: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages. - Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for Pilot holes for guidance only guidance only Pilot holes for guidance only Top panel (60 x 29.5cm)
- Page 4 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. 25mm Screw x 2 Handle x 2 Metal plate x 2 Door hinge x 4 40mm Screw x 8 Nail x 16 12mm Screw x 4...
- Page 5 Assembly Instructions Step 1 Attaching side panels Bottom panel onto the Side panels Finished front edge Step 2 Attaching door Door stopper onto the Top panel Finished front edge Metal plate onto the Left door panel Insert the Door hinges into the Left door panel Repeat a with remaining Right door panel...
- Page 6 Assembly Instructions Step 2 - continued Carefully locate the Left door panel and Right door panel onto the the unit aligning the Door hinges with the corre- sponding holes. Finished Top panel onto the front edge unit. Note: Ensure the Door hinges are aligned with the corresponding holes.
- Page 7 Assembly Instructions Step 4 Attaching door handles Handles onto the Left door panel and Right door panel Step 5 Attaching shelf SIide Support covers onto Shelf supports lnsert Shelf supports (Support covers included) into the unit. before inserting the shelf. Note: Set the shelf supports to the desired height.
- Page 8 Note: It would be useful to ask someone to help you at the stage. With help, place the unit in the intended position. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
