METHVEN 01-8321 Installation Manual

Installation

1. Screw the breech set (1) into
1.
the mounting stud. Refer to
illustration 1. for minimum and
maximum tolerances. Plumb
the breech set (1) into system.
2. A hole diameter of 35mm will
be required for correct head
works (2) installation and a
hole diameter of 25mm will be
required for correct spout (8)
installation.
3. Screw head works (2) into
breech (1). 2.
4. Trim brass nipple (3) to length
with a max 15mm protruding
from wall lining.
5. Place the faceplate (6) over
the brass nipple (3) and
Ø 35mm
head works (2). Ensure that
faceplate (4) is flush with wall
surface It is recommended that
a clear bead of silicone sealant
Is applied on the back of the
faceplate (4) before fixing to
3a.
finished wall surface.
6. Fit inlet connector (5) to brass
nipple (3) and place spout over
inlet connector (8).
7. Tighten with a 2.5mm hex key
(9).
8. Screw locking nut (6) over Do not discard screws
spindle/head works (2).
9. Place handle (7) onto spindle
Note: It is the responsibility of the installer to ensure a water proof seal is
and fasten with a 2.5mm hex
achieved between the faceplate and the finished surface of the wall. If in any
key (9).
doubt about the quality of the seal, the faceplate should be removed and then
reinstalled using silicone to ensure a seal is achieved.
April 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Distance from mounting stud to
3b.
front of wall lining: Std - 54-64mm
Ext - 64-76mm
For deeper installations, remove short threaded
headworks collars, replace with long threaded
headworks collars and spindle extensions.
4.
Trim to 15mm Apply appropriate thread
sealant material
Ø 25mm
Ø 35mm
5.
2.5mm Allen key
MA018321

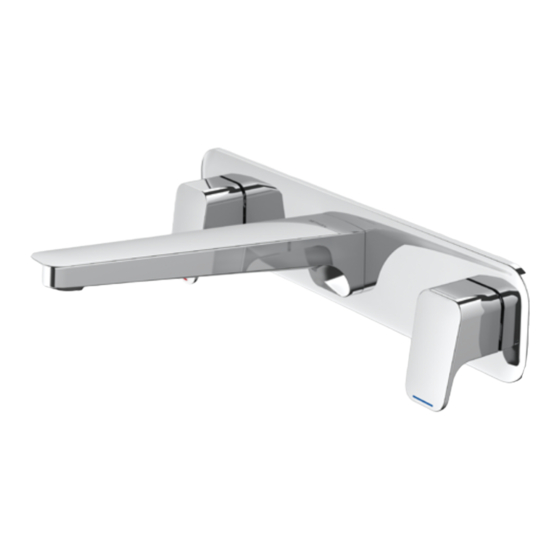

Waipori 3 Hole Wall Mounted
Basin Set with Plate
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
Domestic and commercial warranty terms and conditions vary. Please refer to the Methven website
for full warranty terms and conditions - www.methven.com
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic head works.
Do not remove the ceramic head works from the mixer when installing.
Damage caused by hydrostatic testing is not covered by Methven's warranty.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
01-8321
WMKA21005
