METHVEN SATINJET ESCAPE MKII Installation Manual

CLEANING
Water contains lime which remains on the
surface after the water has evaporated. These
lime deposits can be prevented from forming by
wiping immediately after use.
Do not use any
sharp objects to
clean nozzles
Important Installation Considerations
1. NOTE: Some showers may not provide an effective shower when used
with gravity fed heated water systems or where pressures are less
than 150kPa at the outlet. Additionally showers with flow rates of less
than 9L/min may not allow the following to function correctly:
_ some instantaneous water heaters
_ some tempering valves
_ some thermostatic mixing valves
2. Some shower heads only operate correctly when hot and cold water
supplies are both mains pressure and may not be suitable for some
instantaneous hot water services.
3. When water pressure is in excess of 500kPa a pressure limiting device
is required in accordance with AS/NZS 3500 1.12 recommendation.
4. Domestic and Commercial warranty terms and conditions vary.
For full warranty terms and conditions refer to
www.methven.com
Methven warrants this product against manufacturing defects and that it is suitable for use
under the operating conditions specified in this instruction sheet.
For your warranty please refer to www.methven.com/au or call Customer Service 1300 METHVEN
436670
To clean the chrome-plated surface use a soft
cloth, soap and warm water. Never use cleaning
agents that contain a corrosive acid or a scouring
additive.
Australia
1300 638 483

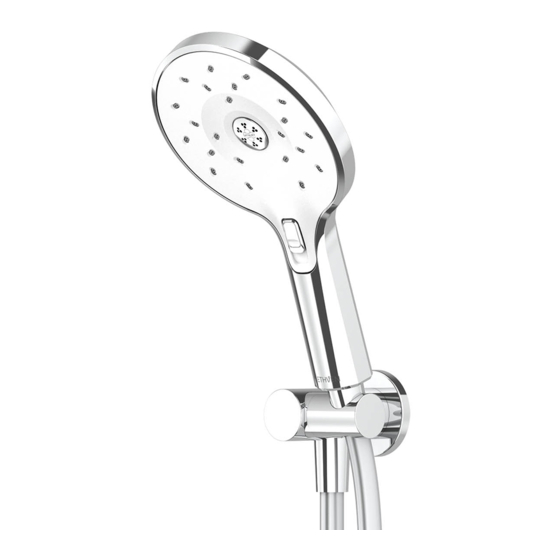

SATINJET ESCAPE MKII RAILSHOWER/
HANDSET
INSTALLATION GUIDE
TECHNICAL SPECIFICATIONS
Operating Pressure:
Min 150kPa, Max 500kPa.
Recommended installation of a pressure limiting
valve if supply exceeds 500kPa
Operating Temperature:
Recommended hot water supply 50°C,
maximum 70°C. AS 3500 requires all hot
water supplies to any sanitary fitting to be
tempered to 50°C.
Inlet connections: All 1/2" BSP
Notes:
●
After installation all connections must be checked
for leaks.
● All installations must be carried out in compliance
with relevant water regulations.
Issue B
