Cleaning
Your product has a high quality finish and should be treated with care to preserve the
visible surfaces.
Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly
with contamination free warm soapy water and a damp soft cloth. Do not use products
containing chlorine bleach or hydrochloric acid as these can damage the product.
Always rinse the product thoroughly after cleaning to remove cleaning products that
can damage the shower.
Warranty Info
Your product comes with a 5 year guarantee, This includes 2 years parts and labor
followed by a further 3 years parts only, subject to the following:
Please retain installation & maintenance guide for future reference.
Proof of purchase will be required
The guarantee does not cover faults or damage caused by incorrect installation and/or
maintenance, ordinary wear and tear, water composition etc. including:
supply pipes reversed, incorrect pressure or temperature, incorrect use, foreign
bodies and/or scale due to the water composition, incorrect cleaning.
We have a policy of continuous improvement and reserve the right to change
specifications without notice.
METHVEN UK LIMITED
METHVEN EXPERIENCE CENTRE
3/3A STONE CROSS COURT
YEW TREE WAY
GOLBORNE
WARRINGTON
WA3 3JD
UNITED KINGDOM
INST-AVTBSMNK, AVTBSMWMBO,
AVTBSMEF, AVTBSMEFLF
10.10.2023
TEL: 0800 195 1602
FAX: +44 (0) 1942 680 190
E: sales@uk.methven.com
www.methven.com
Avoca
Thermostatic Bath Shower Mixer
AVTBSMNK, AVTBSMWMBO, AVTBSMEF, AVTBSMEFLF
Installation Instructions & Maintenance Guide
Technical Specifications:
Supply:
Suitable for high pressure systems
Working Pressure:
1.0 bar - 5.0bar
Operating Temperature:
Hot: Max 65°C
Cold: Min 5°C
Inlet Connections:
3/4" BSP
Cartridge/Valve Type:
Thermostatic
Operation:
Separate flow and temperature
control
Features:
·38°C temperature hot stop with safety
override facility
·150mm valve centres
·180mm bath pillar centres
·Quality chromed brass finish
·Integrated diverter to shower head
·Separate flow and temperature controls
·Easy to use long paddle handle

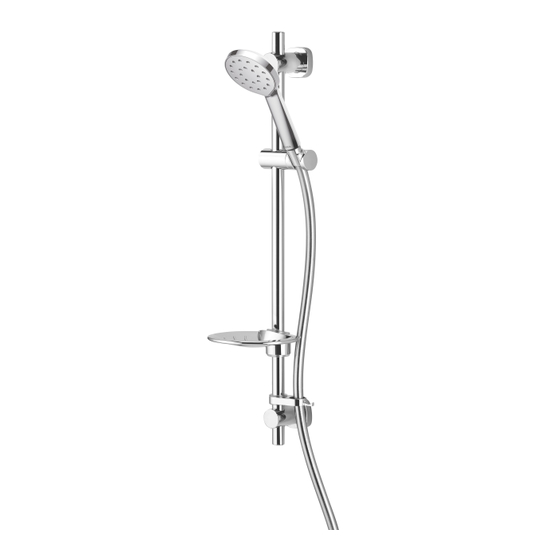

·AVTBSMEF & AVTBSMEFLF: Includes rail kit
with adjustable handset slider, 2m hose and
Satinjet water saving Kiri MK2/Kiri MK2 Low
Flow handset
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for METHVEN Avoca AVTBSMNK
Summary of Contents for METHVEN Avoca AVTBSMNK
- Page 1 Separate flow and temperature control Features: ·38°C temperature hot stop with safety override facility METHVEN UK LIMITED ·150mm valve centres METHVEN EXPERIENCE CENTRE ·180mm bath pillar centres 3/3A STONE CROSS COURT ·Quality chromed brass finish YEW TREE WAY ·Integrated diverter to shower head...
- Page 2 (2) General Characteristics Assemble the handset slider, soap dish Methven recommends this product is installed by a licensed plumber in compliance with and hose retainer on to the rail ensuring all relevant Water Authority Regulations, Water Supply (water fittings) regulations button is facing upward.
- Page 3 Line Drawing Calibration The bath shower mixer is set at 38°C. Check this is the case by using a thermometer in the water flow from the valve. If you require a hotter flow, re-set the calibration. Remove the cover (1), unscrew the screw (2). The control knob (6) can now be pulled off.
- Page 4 Exploded Diagram Recommended Outlet Temperature Pillar Mounted The NSF TMV Scheme recommends the following set maximum mixed water outlet temperatures for use in all premises: 44°C for bath fill but see notes below; 41°C for showers 41°C for washbasins 38°C for bidets The mixed water temperature must never exceed 46°C The maximum mixed water temperature can be 2°C above the recommended maximum set outlet temperatures.
- Page 5 Exploded Diagram Operating Rail kit if supplied When the diverter (B) is in the lower position, water will flow through the bath filler spout. To divert water through the hose to the shower head, raise the diverter handle to be in the raised position. The diverter will remain raised until Shower Hose manually lowered.
- Page 6 Installation Instructions - Wall Mounted Mixer (AVTBSMWMBO) Installation Instructions - Pillar Mounted (AVTBSMNK, AVTBSMEF, AVTBSMEFLF NOTE: The water outlets must be connected to the unions from behind the wall. If the water outlets are protruding through the wall an alternative union must be used. Important points to note before commencing installation of your bath shower mixer.
