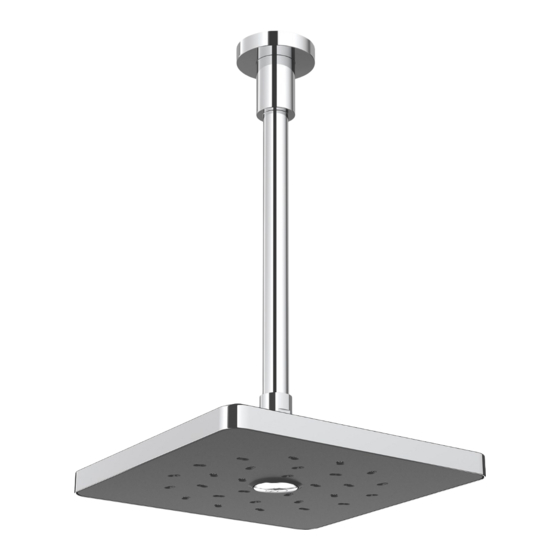

METHVEN SATINJET SQUARE OVERHEAD DRENCHER Installation Manual

With wall/ceiling arm

Download this manual

Methven warrants this product against manufacturing defects and that it is suitable for use

under the operating conditions specified in this instruction sheet.

For your warranty please refer to www.methven.com or call Customer Service

New Zealand

Australia

0800 804 222

1300 638 483

433236

USA

1800 975 5409

0800 195 1602

Issue A

SATINJET SQUARE OVERHEAD

DRENCHER WITH WALL/CEILING ARM

INSTALLATION GUIDE

TECHNICAL SPECIFICATIONS

Operating Pressure:

Min 35 kPa, Max 500 kPa.

Recommended installation of a pressure

limiting valve if supply exceeds 500kPa.

Operating Temperature:

Max 70°C.

NB: New Zealand Building Code Clause G12 -

Water Supplies specifies all outlets used

primarily for personal hygiene shall deliver

water at a safe temperature.
