METHVEN Minimalist 01-2206 Installation Manual

Ceramic Cartridge Adjustment
Do not remove the ceramic cartridge from the body assembly while carrying out the
following adjustments. Note, the cartridge is factory set for maximum temperature.
Remove half-dome (if attached)
"In situ" testing
The maximum working pressure of the ceramic cartridge is 1000kPa. Do not
hydrostatic test the installation with this mixer installed. Damage to the ceramic
cartridge may occur, voiding our warranty.
MAY 2016
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Mix temperature limiting adjustment
-
+
MA433036A ISSUE B

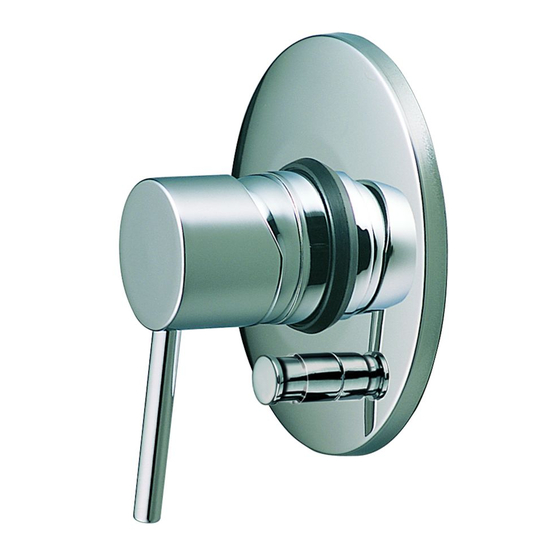

Minimalist Shower Mixer
With Diverter
Illustration may not reflect actual product shape.
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product in non-domestic applications voids warranty.
All pipe work must be thoroughly flushed prior to the installation of the mixer.
NEFA inline filters must be installed on both hot and cold supplies.
Do not remove the ceramic cartridge from the mixer when installing.
Damage caused by hydrostatic testing is not covered by our warranty.
www.methven.com
01-2206
WMKA 21005
