METHVEN Waipori 01-8345 Installation Manual

Installation

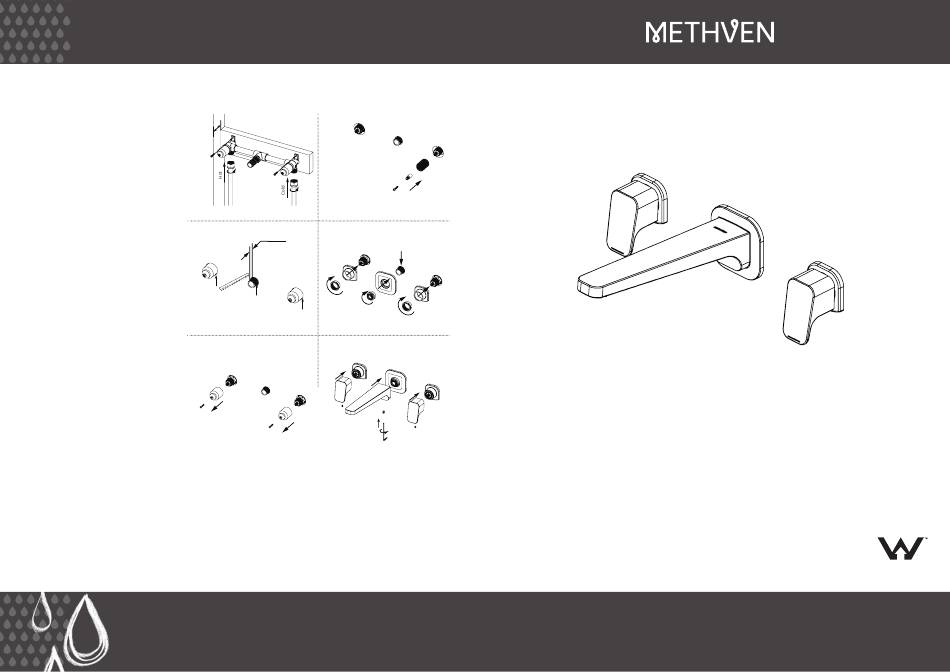

1. Screw the breech set (1 - not
1.
included) into the
mounting stud. Refer to
illustration 1. for minimum and
maximum tolerances. Plumb the
breech set (1) into system.
2. A hole diameter of 35mm will
be required for correct head
works (2) installation and a
hole diameter of 25mm will be
required for correct spout (10)
2.
installation.
3. Screw head works (2) into
breech (1).
4. Trim brass nipple (3) to length
with a max 15mm protruding
from wall lining.
Ø 35mm
5. Insert O-ring (4) into the groove
in the bottom of the base ring
(8) and place over spindle/head
works.
3.
6. Screw locking nut (7) over
spindle/ head works (2).
Do not discard screws
7. Place handle (9) onto spindle/
head works (2) and fasten with
a 2.5mm hex key (11).
8. Fit inlet connector (6) to brass
nipple (3) and place spout (10)
over inlet connector (6).
9. Tighten with a 2.5mm hex key
(11).
Note: It is the responsibility of the installer to ensure a water proof seal is
achieved between the faceplate and the finished surface of the wall. If in any
doubt about the quality of the seal, the faceplate should be removed and
then reinstalled using silicone to ensure a seal is achieved.
March 2013
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Distance f r om mounting stud to
front of wall lining:
Std - 54-64mm
Ext - 64-76mm
For deeper installations,
remove short threaded
headworks collars, replace
with long threaded headworks
collars and spindle extensions.
4.
Apply appropriate thread
Trim to 15mm
sealant material
Ø 25mm
Ø 35mm
5.
2.5mm hex key
MA018345

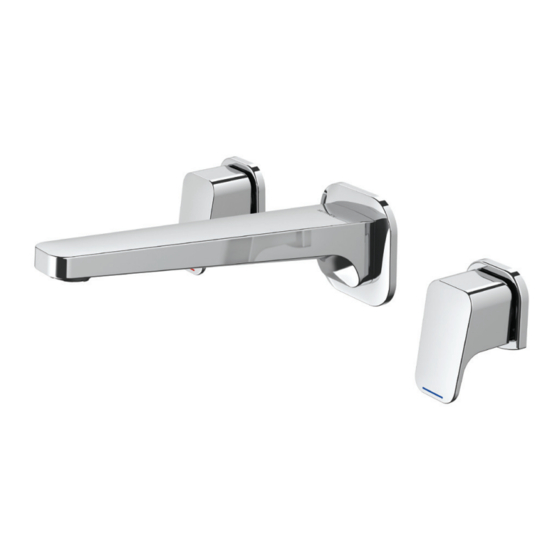

Waipori 3 Hole Wall Mounted
Bath Set
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
Domestic and commercial warranty terms and conditions vary. Please refer to the Methven website
for full warranty terms and conditions - www.methven.com
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic head works.
Do not remove the ceramic head works from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
01-8345
WMKA21005
