METHVEN Waipori 01-8260 Installation Manual

Installation
Tip: Install product on bench before
connecting second hose to mixer.

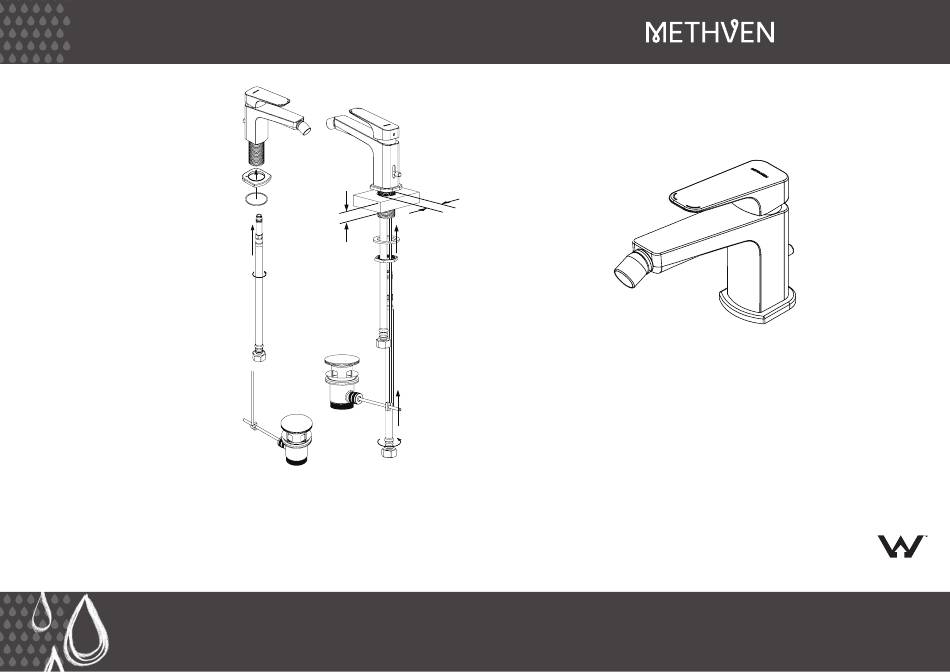

1. Cut a single 35mm diameter hole into
the mounting surface. The mounting
surface can be a maximum of 40mm
thick.
2. Insert o-ring (3) into the groove in the
bottom of the base ring (2) and fit the
base ring to the bottom of the mixer
body (1).
3. Feed the mixer's (1) threaded
fastening tube through the hole cut in
the mounting surface.
4. Position the mixer (1) as desired and
fit the rubber washer over
the threaded fastening tube. Tighten
in place using the tube spanner (9)
(from under the mounting surface).
5. Insert the flexible hoses (7) through
the hole in the mounting surface (from
the underside) and screw them into
the base of the mixer body (1).
6. Connect the flexible hoses to the hot
and cold supplies (hot on the left,
cold on the right).
Note: It is a condition of Methven's
warranty that the inline filter washers
supplied are fitted during this
connection.
7. Fit "pop-up" waste outlet (B) into
Bidet bowl.
8. Remove side nut (C) and insert rod with ball (D). Fit washer supplied and replace side nut
(C).
9. Join extension rod (E) to "pop-up" lever (A) under bowl.
10. Using "universal joint" provided (F) join and adjust rods to maintain "pop-up" action.
11. Connect the hoses to their respective water supplies (see over page). Two rubber washers
are provided for the flexible hose supplies connections. Machined nipple ends are required
to ensure a seal to the flexible hose nuts and the rubber washers.
12. Flush pipework thoroughly.
April 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Max 40mm ø35mm Min
ø38mm Max
Cold
Hot
MA018260
Waipori Bidet Mixer
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
Domestic and commercial warranty terms and conditions vary. Please refer to the Methven website
for full warranty terms and conditions - www.methven.com
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic head works.
Do not remove the ceramic head works from the mixer when installing.
Damage caused by hydrostatic testing is not covered by Methven's warranty.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
01-8260
