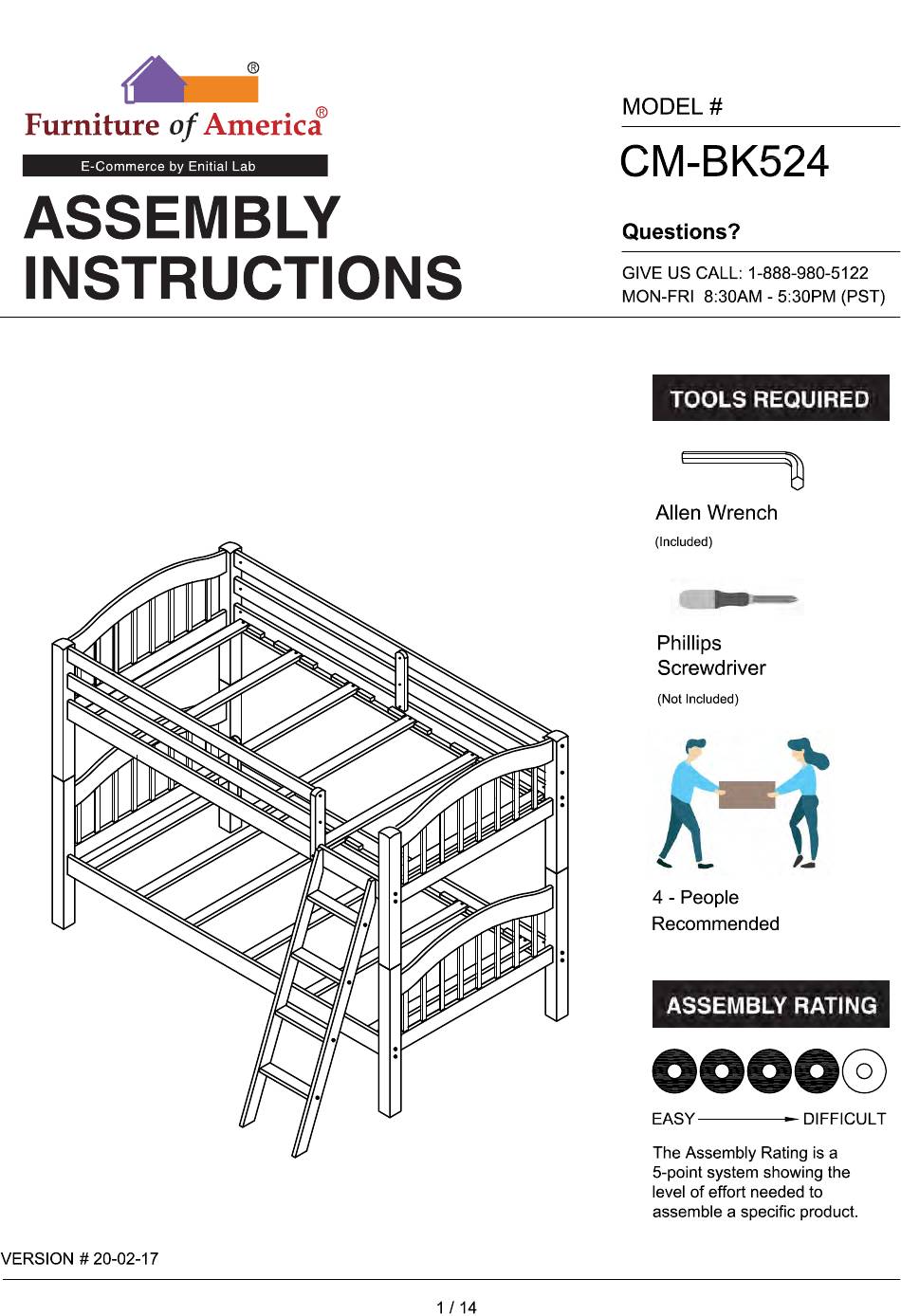

- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 4...
- Page 5 BUNK BED...
- Page 9 Align guardrails (#3) to the side rails (#6), then secure by using bolts (#A) onto barrel nuts (#I). Align slats (#9) to the side rails, then secure by using screws (#E).
- Page 10 Align side rails (#4,5) and guardrails (#7,8) to end guardrails (#1,2), then secure by using bolts (#A) onto barrel nuts (#I). Align guardrail supports (#11) to the rails, then secure by using screws (#E). Insert dowels (#H) to the rails. Align guardrail bar (#10) to the rails, then secure by using screws (#D) and bolts (#B).
- Page 11 Align brackets (#J) to the upper bunk bed, then secure by using screws (#F) and bolts (#C) with washers (#K). Align slats (#9) to the upper bunk, then secure by using screws (#E).
- Page 12 Insert dowels (#G) to lower bunk, then place upper bunk onto lower bunk. Align ladder rungs (#14) to the ladder rails (#12,13), then secure by using screws (#D).
- Page 13 Align ladder to bunk bed, then secure by using screws (#F).
- Page 14 14 / X X X X X X X 1 4...
