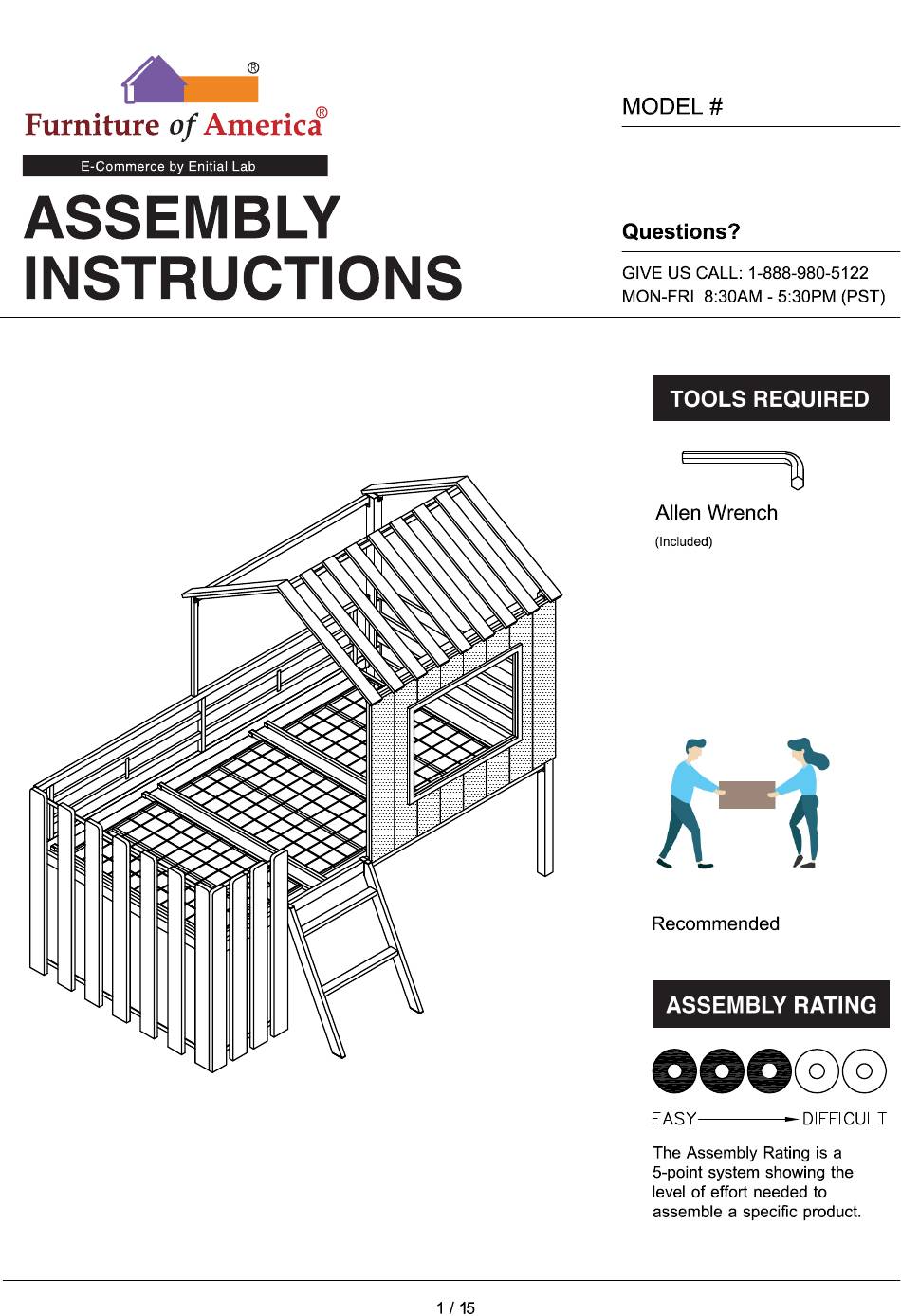

- Page 1 CM-BK969-UPS 3 - People VERSION # 20-02-12...
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 5 CM-BK969-UPS...
- Page 10 Align right guardrail (#7) to the right front and back bars (#1,2), then secure by using bolts (#B) with washers (#H). Align front support rail (#5) to the side support rail (#6), then secure by using bolts (#B) with washers (#H).
- Page 11 Align back guardrail (#11) and rail (#12) to the support rails and guardrail. Secure by using bolts (#B) and bolts (#D) with washers (#H). Align back bar (#4) to the back guardrail, then secure by using bolts (#F) with washer (#H). Align front bar (#3) to the rail, then secure by using bolts (#G) with washer (#H).
- Page 12 Align top support frames (#8,9) to the bars, then secure by using bolts (#C) with washers (#G). Align connect bar (#10) to the bars, then secure by using bolts (#C) with washers (#G).
- Page 13 Align top frame (#14) to the bars, then secure by using bolts (#C) with washers (#G). Align bed window (#15) to window frame (#16), then secure by using bolts (#D) .
- Page 14 Align window to the bed, then secure by using bolts (#A) with washers (#H). Align slats (#17) to the bed, then secure by using bolts (#B) with washers (#H).
- Page 15 Align ladder (#13) to the bed, then secure by using bolts (#E) with washers (#H).
