Furniture of America CM-BK588T Assembly Instructions Manual

Hide thumbs Also See for CM-BK588T:

Advertisement

Quick Links

Download this manual
CM-BK588T
VERSION 24-01-19
1/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM-BK588T and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America CM-BK588T

Summary of Contents for Furniture of America CM-BK588T

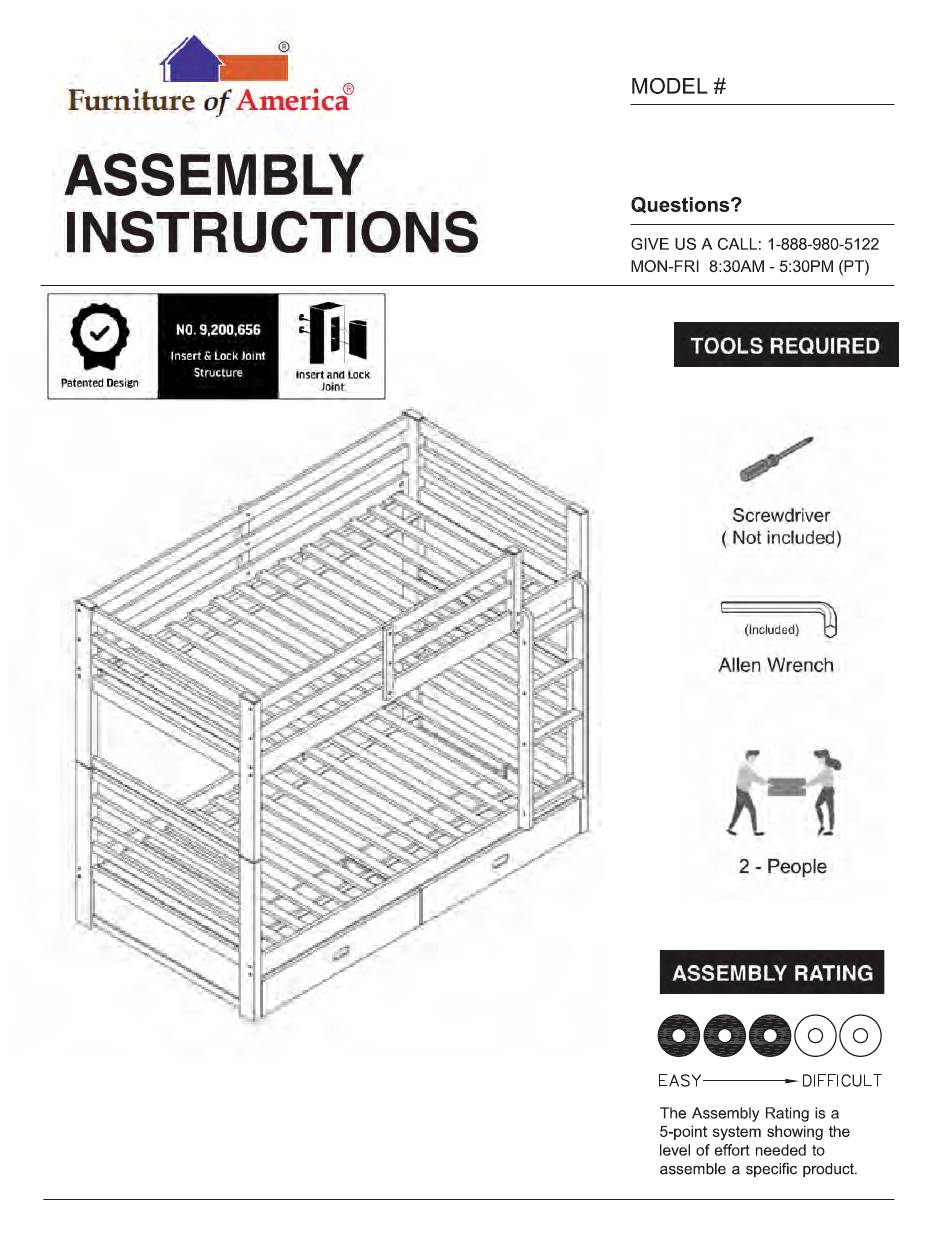

  • Page 1 CM-BK588T VERSION 24-01-19 1/17...
  • Page 2 2/17...
  • Page 3 3/17...
  • Page 4 4/17...
  • Page 5 BUNK BED PARTS Upper HB (Left) Upper HB (Right) Lower Headboard Front Upper Side Rail 1 pc. 1 pc. 2 pcs. 1 pc. Front Lower Side Rail Back Upper Side Rail Back Lower Side Rail Short Guardrail (Front) 1 pc. 1 pc.
  • Page 6 PARTS Drawer Back Panel Drawer Left Panel Drawer Right Panel Drawer Support Rail 2 pcs. 2 pcs. 2 pcs. 2 pcs. Drawer Bottom Panel 2 pcs. HARDWARE '"'"®""'"®"®"®@ Bolt 1/4" x 3-1/4" Screw Bolt Short Bolt Medium Bolt 16 pcs 5/16"...
  • Page 7 7/17...
  • Page 8 CM-BK588T is packed in 3 cases 8/17...
  • Page 9 CM-BK588T is packed in 3 cases 9/17...
  • Page 10 ASSEMBLY INSTRUCTIONS I. Align the Front/Back Upper Rails (#4/#6) to the Left/ Right Upper HB (#1/#2) and secure by using Bolt (#A) with Half round nut. #Ax 8sets II. Align the Long/Short Guardrail (#8/#9) to the Left/ #Bx 6pcs Right Upper HB(#1/#2). Use Allen wrench (#H) to secure by using Bolts (#B) as shown in the diagram.
  • Page 11 ASSEMBLY INSTRUCTIONS I. Align the Guardrail Attachment (#10) to the Front upper siderail (#4) and Short guardrails (#8). Use Allen wrench (#H) to secure to the short guardrails (#8) by using Bolts (#B). #Bx 2pcs #Dx 2pcs #Ex 2pcs II. Secure the Guardrail Attachment (#10) to he Front upper side rail (#4).
  • Page 12 ASSEMBLY INSTRUCTIONS Align the Guardrail Support (#11) to the Front/ Back Upper Rails (#4/#6) and Short/Long Guardrail(#8/#9). Use Allen wrench (#H) to secure using Bolts (#C) and threaded insert (#E). #Cx 6pcs #Ex 6pcs #Ax 8sets #Fx 6pcs LOCATION I. Use Screw (#F) to secure the Wood rail (#I) to WITH ARROW the Front lower rail (#5).
  • Page 13 ASSEMBLY INSTRUCTIONS Insert Metal Dowel (#G) to the Lower HB (#3). Align and set Top Bunk onto the Lower #Gx 4pcs Bunk. Align the ladder step (#14) to the #Dx 8pcs Left/Right ladder (#12/#13). Use Allen wrench (#H) to secure using Bolts (#D).
  • Page 14 ASSEMBLY INSTRUCTIONS Align the ladder to the Upper/ Lower Front rail (#4/#5). Use Allen wrench (#H) to secure #Dx 4pcs sing Bolts (#D). #Fx 4pcs Align the Slats (#15) to the Upper/ Lower bed. Use Screwdriver (Not included) to help secure onto frame by using Screw (#F).
  • Page 15 ASSEMBLY INSTRUCTIONS Align Drawer left panel (#18),(#19) to Drawer front panel (#16) and secure using the Phillips screwdriver. 2PLACES Insert drawer bottom panel (#21) to center drawer. 15/17...
  • Page 16 ASSEMBLY INSTRUCTIONS Align drawer support (#20) to drawer and secure using the Phillips screwdriver. 2PLACES II. Align Drawer right panel (#19) to drawer back panel (17). Secure using Screw (#F) and secure using the Phillips screwdriver. Ill. Align drawer right panel (#19) to drawer front panel (#16) and secure using the Phillips screwdriver.
  • Page 17 ASSEMBLY INSTRUCTIONS 17/17...
  • Page 18 17/17...
