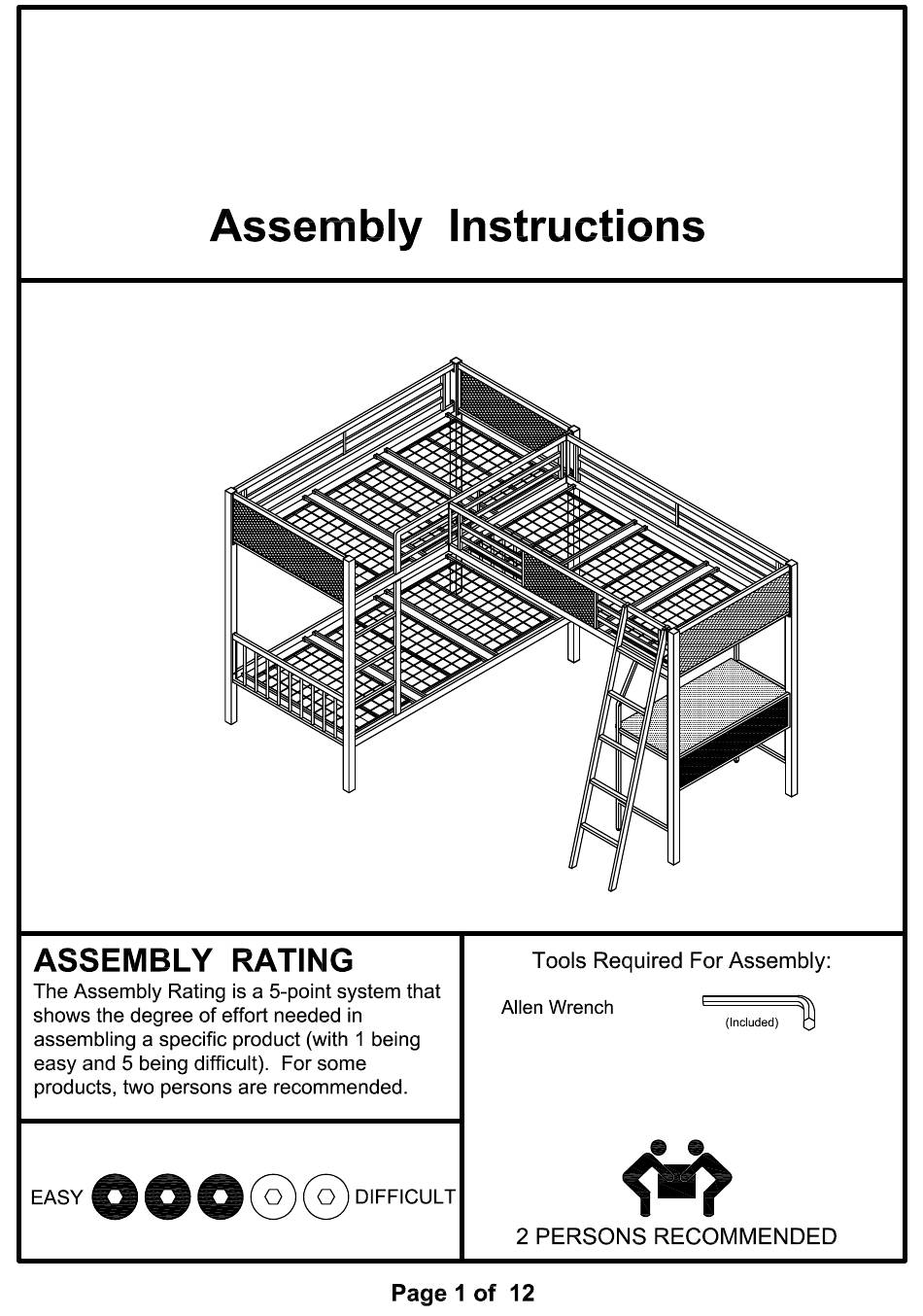

Furniture of America CM-BK1049 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM-BK1049 and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America CM-BK1049

Summary of Contents for Furniture of America CM-BK1049

  • Page 5 WRONG 1) Attach the top holes of the upper panel (#5) and bottom panel (#4) to the holes of the left and right back post (#2,3). 2) Prepare 4 bolts assembly by inserting flat washer (#G) onto bolts (#A).Align the bottom holes of the upper panel (#5) and bottom panel (#4) to the...
  • Page 6 1) Prepare 11 bolts assembly by inserting flat washer (#11) onto bolts (#A). Align back panel (#7) and front panel (#8) to the holes of the right and left side HB. Secure with bolts (#A). Right Side HB Left Side 2) Align bottom back and front rails (#9,10) to the bottom holes of the left and right side HB.
  • Page 7 1) Align ladder A (#11) to the holes in-between the bunk beds. Secure the top ladder (#11) hole with Bolts (#A) that contains lock washer (#G). 2) Secure ladder holes (#11) on the side of the left HB with bolts (#B) that contains washer (#G).
  • Page 8 Prepare 6 bolts assembly by inserting flat washer (#G) onto bolts (#D). Align desk right and left frame (#17,18) to the holes of the HB as shown in the picture. Secure with bolts (#D). Prepare 4 bolts assembly by inserting flat washer (#G) onto bolts (#A).
  • Page 9 Prepare 6 bolts assembly by inserting flat washer (#G) onto bolts (#C). Align top board (#21) to the holes of the desk. Secure with bolts (#C). 2) Secure top holes of the side rails (#15,14) onto bunk bed with bolts (#D) that conrains washer (#G). 1) Hook the bottom of holes of side rails (#15,14) onto the bunk bed.
  • Page 10 Prepare 4 bolts assembly by inserting flat washer (#G) onto bolts (#D). Secure bottom holes, where the side rails are resting on the desk, with bolts (#D). Prepare 12 bolts assembly by inserting flat washer (#G) onto bolts (#A). Place bed base frame (#6) onto the bunk bed on top of desk.
  • Page 11 Prepare 2 bolts assembly by inserting flat washer (#H) onto bolts (#F). Place ladder (#20) resting on the side rail of bunk bed with desk. Secure with bolts (#F). Assembly Completed...
