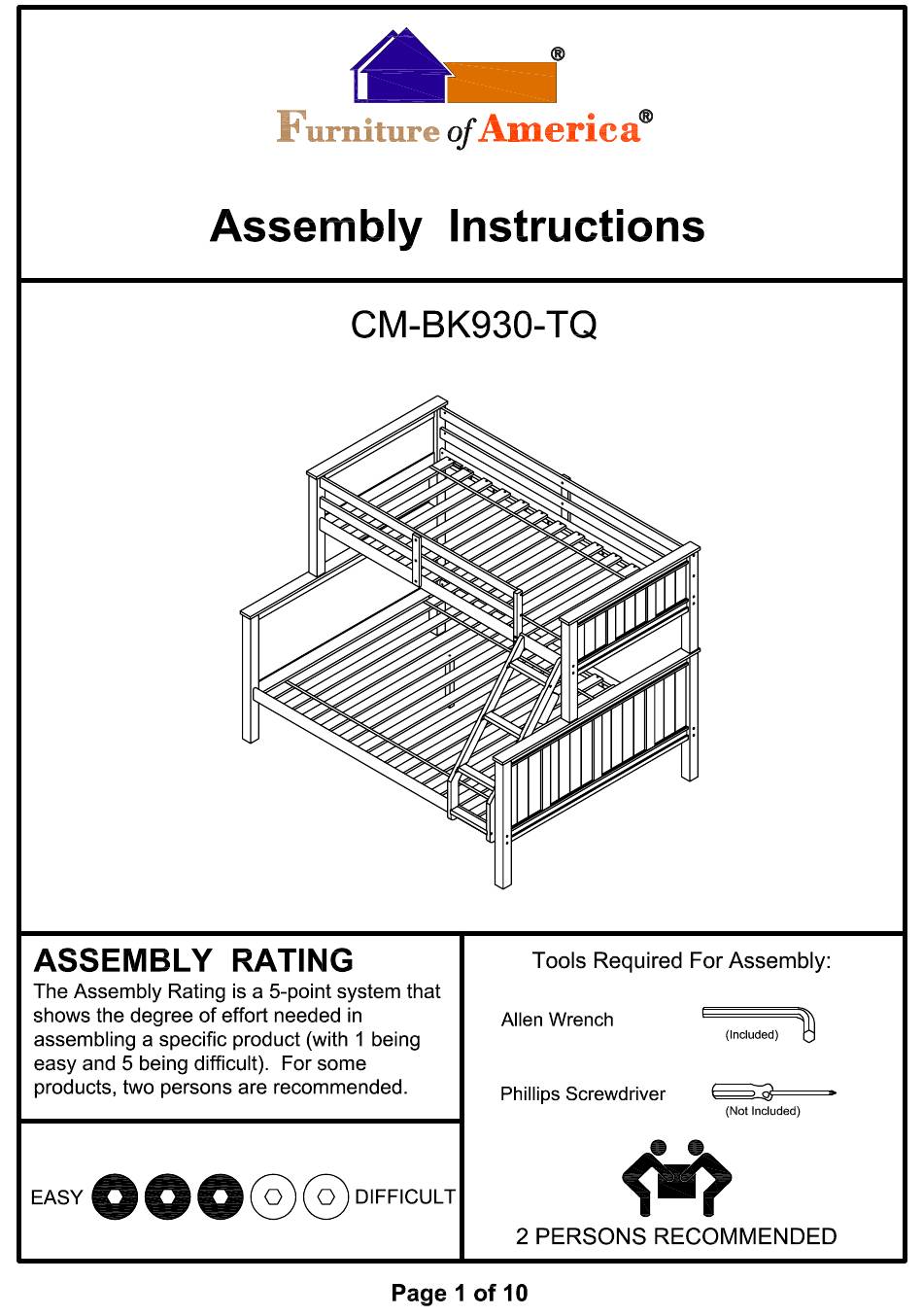

- Page 1 For more information contact our team: service.ec@foagroup.com Rev:17-12-22...
- Page 6 1. Insert the barrel nuts (#F) into the holes along the sides of the lower side rails (#11,12). Align the openings to the holes. 2. Insert the long bolts (#B) into the holes along the sides of the lower headboard/ footboard (#3,4).
- Page 7 Repeat process in step #2. Insert the metal pins (#H) into the holes along the top of the lower headboard and footboard (#3,4), then carefully place the top bed onto those pins.
- Page 8 Insert the dowels (#A) into each end of the steps (#16), then insert a bolt (#G) into each hole along the rails and secure using the Allen wrench (#K). Align the top of the ladder rails to the holes, then insert a short bolt (#D) from within. Secure using the Allen wrench (#K).
- Page 9 Place the slat set (#13) on to the top bed and slat set (#14) onto the lower bed. Insert a screw (#I) into each hole and secure using a screwdriver. Align the support legs (#18) to the bottom slat set, then insert a screw (#J) into the holes and secure.
- Page 10 Safety Warnings for Bunk Beds Safety Warnings for Bunk Beds 1. Read and follow the information on the WARNINGS shown on the end structure of the upper bunk and on the carton. 2. Do not remove warning label from the bed. 3.
