NRS Healthcare M00869 User Instructions

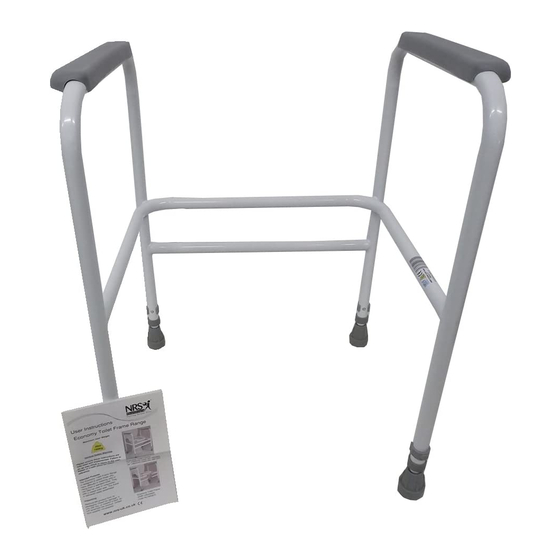

M00869 Economy Toilet Frame 17" (430mm)
M00870 Economy Toilet Frame Width Adjustable
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1. INTENDED USE
The height and width* adjustable Economy Toilet Frame is designed to assist users when lowering onto
and rising from the toilet. It provides comfortable and stable support when getting on and off the toilet and is
suitable for use in conjunction with a raised toilet seat. An optional fl oor fi xing kit is also available (M24308).
*M00870 only.
Figure 1: M00869
Figure 2: M00870
USER INSTRUCTIONS
ECONOMY TOILET FRAME RANGE
M87203 Economy Toilet Frame 19" (480mm)
Maximum User Weight
2. SAFETY
WARNING: The maximum user weight must not be
more than 190Kg (30st).
DO NOT: Attempt to stand or climb on the product.
MAKE SURE: All legs are set at an equal height to
avoid rocking.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
4. ASSEMBLY
These products are supplied fully assembled.
5. INSTALLATION
Adjust the height and width* for the toilet and user
before installation.
5.1 Adjust the Height - All Models
1. Remove the 4 x leg extension E-clips.
2. Slide the leg extensions to the required height,
align the holes and replace the E-clips.
Note: Make sure the side frame assemblies have all
been set to the same width.
Note: Make sure the leg extensions have all been
set to the same height.
1
30st
190kg
