Avocent Single port KVM over IP switch User Manual page 41

5-5
6.2.3.2 Create a New Device
Start KVM Vision Viewer
Click on "Device" and select "New Device" to create a new device
Device Name: Enter a name to your device.
Network Address: Enter an IP address the IP-KVM switch uses.
Authentication Port: This is a fixed number "443".
Username: The factory default Username is "super"
Password: The factory default Password is "pass".

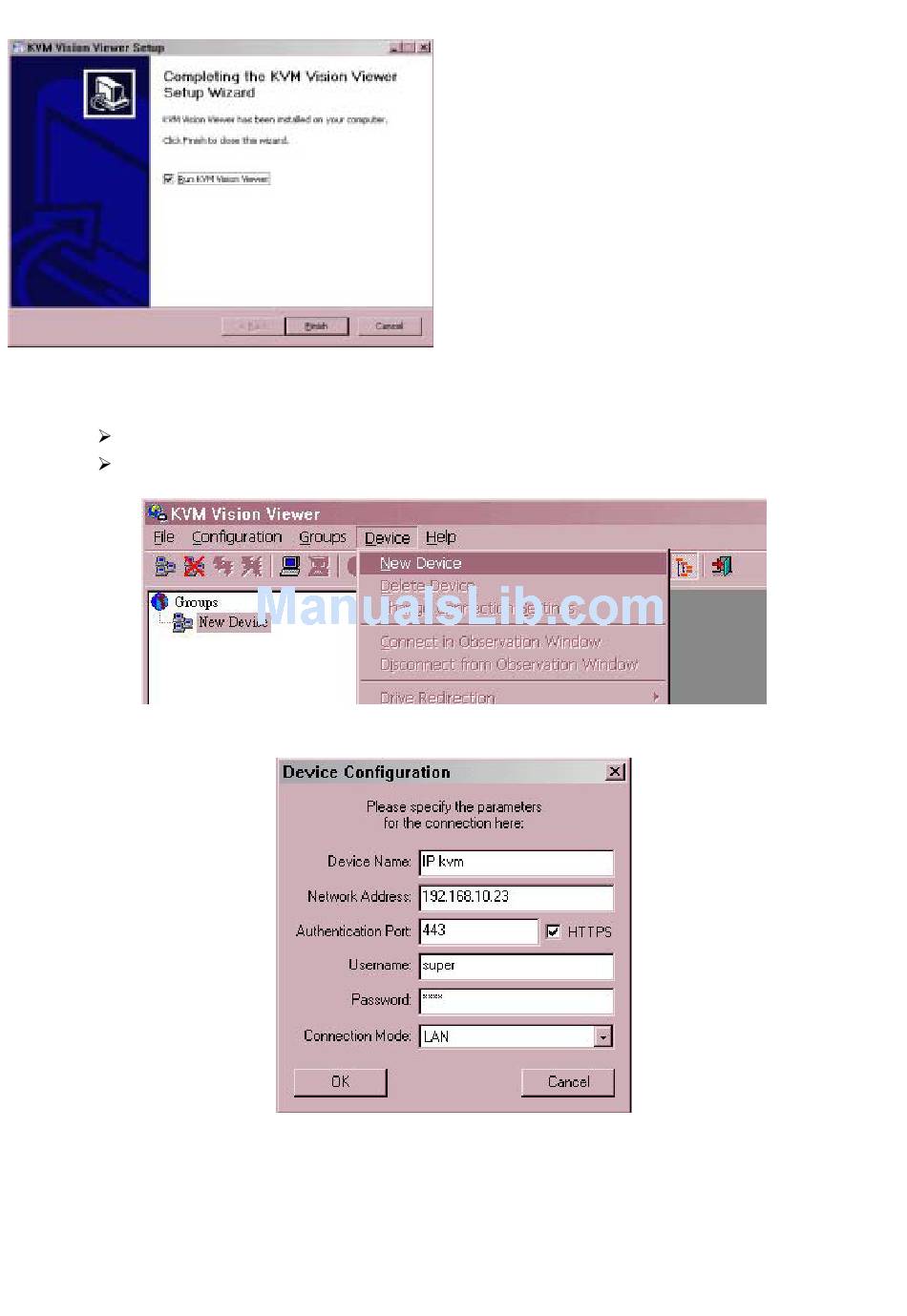

Figure 5-17. KVM Vision Viewer Setup step
Figure 5-17. Create a new Device
Figure 5-17. Device Configuration dialog
41
Single port KVM over IP switch
