US-English keyboard mapping. In this case you have to change the Local Keyboard
setting to the right language, manually.
• Hotkeys
Opens a list of hotkeys defined before. Choose one entry, the command will be sent to
the host system.
A confirmation dialog can be added that will be displayed before sending the selected
command to the remote host. Select "OK" to perform the command on the remote host.
5.4.2 Remote Console Status Line
Status line
Shows both console and the connection state. The size of the remote screen is displayed.
Figure 4-15 was taken from a Remote Console with a resolution of 800x600 pixels. The
value in brackets describes the connection to the Remote Console. "Norm" means a
standard connection without encryption, "SSL" indicates means a secure connection.
Furthermore, both the incoming ("In:") and the outgoing ("Out:") network traffic are visible
(in kb/s). If compressed encoding is enabled, a value in brackets displays the
compressed transfer rate.
For more information about Monitor Only and Exclusive Access settings, see the according sections

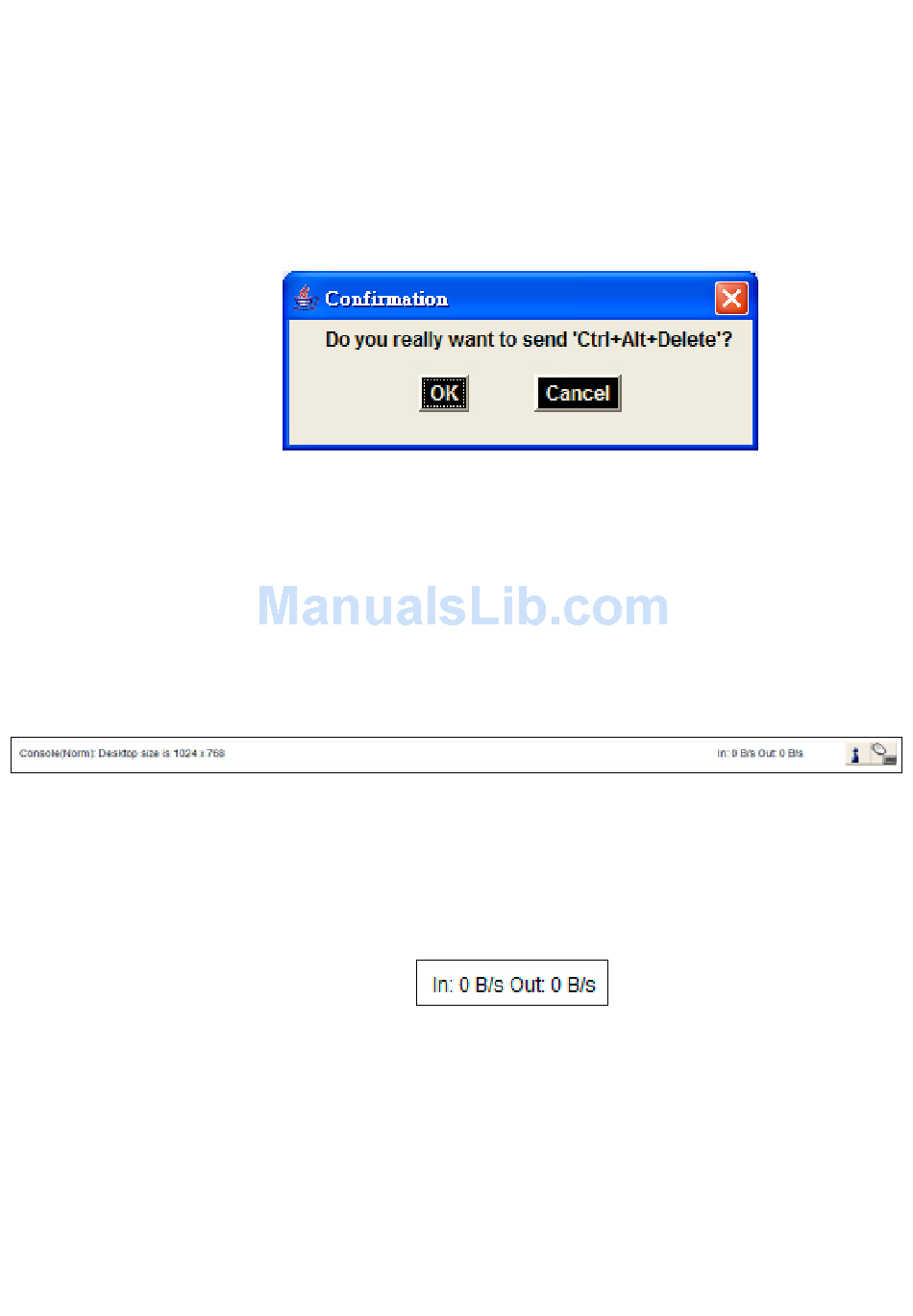

Figure 5-14. Remote Console Confirmation Dialog
Figure 5-15. Status line
Figure 5-16. Status line transfer rate
31
Single port KVM over IP switch
