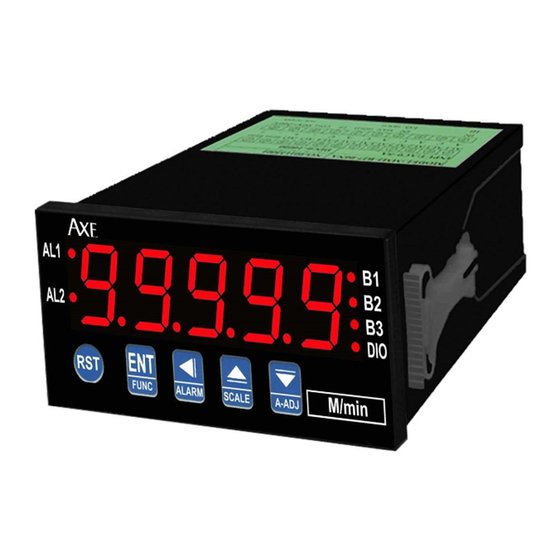

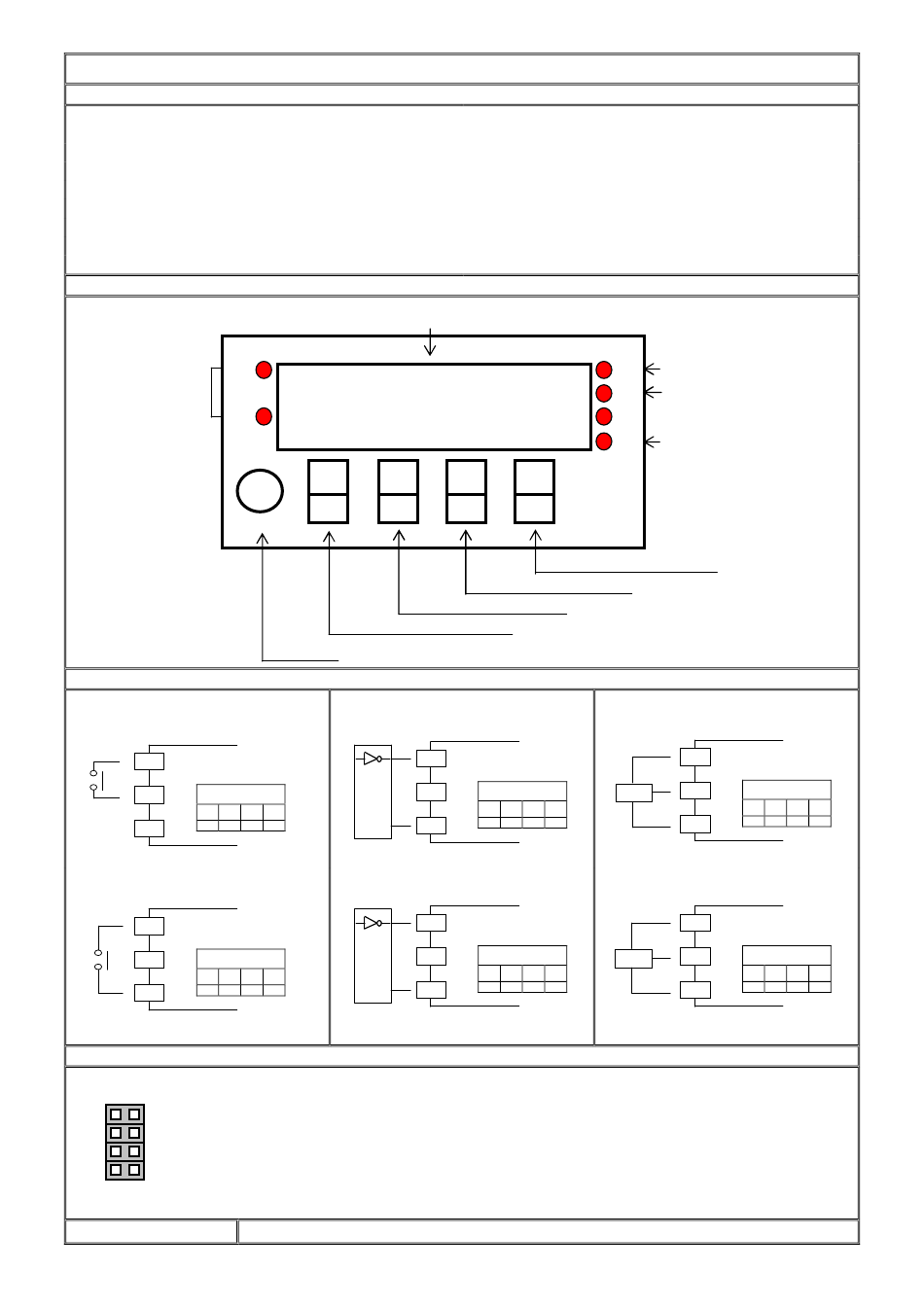

AXE Microprocess Length(Flow) Controller Meter
■FEATURES
◎ Accept more type sensors(switch,encoder,proximity
switch,...etc)finish length/flow control
◎ Readout Range from -19999 to 99999
◎ Four counting modes Up.Down,Up/Down,Quadrature
◎ Power down saving
◎ Decimal Point can be modified
◎ Input scaling multiplied 0.0001 to 9.9999 can be modified
◎ Reset by panel or connect terminal
◎ Quadrature sensing up to 4 times resolution
■Name of Parts
AL1
Alarm Indicate
AL2
■ Connect Diagram
◎Contact input(PNP)
IN
Inside jumper
12V
4
3
OFF ON ON OFF
COM
◎Contact input(NPN)
IN
Inside jumper
12V
4
3
OFF ON OFF ON
COM
■Input function jumper table
Position 4 ON: TTL
4
Position 3 ON: 0~50Hz OFF:0~10KHz
3
Position 2 ON: PNP
2
Position 1 ON: NPN
1
Key Introduce
Operation Manual
Display
ENT
RST
E
FUNC
ALARM
Cursor shift(Alarm adjustment call out)
Parameter Enter (Function call out)
Reset key
◎CMOS input(12V or 15V)
12V
2
1
GND
COM
◎TTL input(5V)
12V
2
1
GND
COM
OFF:CMOS
◎ 16BIT DAC analog output can be modified
◎ Two alarm function
◎ Man-machine interface,easy to operate
◎ 0.56" highlight display
◎ BAUD RATE:19200/9600/4800/2400
◎ RS485 Communication interface,Protocol MODBUS RTU MODE
◎ EEPROM Saving,data safekeeping about 10 years
◎ Modified inside parameter,must have pass code
A-ADJ
SCALE
Set-value down(Analog output adjustment call out)
Set-value up(Scale adjustment call out )
◎Sensor input(PNP 12V)
IN
Inside jumper
4
3
2
1
OFF OFF ON OFF
◎Sensor input(NPN 12V)
IN
Inside jumper
4
3
2
1
ON OFF ON OFF
MMC Series
RESET Indicate
B1
GATE Indicate
B2
B3
Communication Indicate
DIO
IN
Inside jumper
12V
Sensor
4
3
OFF OFF ON OFF
COM
IN
Inside jumper
12V
Sensor
4
3
OFF OFF OFF ON
COM
2
1
2
1
Rev 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AXE MMC Series
Summary of Contents for AXE MMC Series
- Page 1 AXE Microprocess Length(Flow) Controller Meter MMC Series ■FEATURES ◎ Accept more type sensors(switch,encoder,proximity ◎ 16BIT DAC analog output can be modified switch,…etc)finish length/flow control ◎ Readout Range from -19999 to 99999 ◎ Two alarm function ◎ Four counting modes Up.Down,Up/Down,Quadrature ◎...
- Page 2 Key Function 1.In normal display,The key function is call out setting group 2.In parameter setting page,The key function is data Enter , and goto next page Key Function 1.In normal display,The key function is call out alarm value setting page 2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can press shift key into setting procedure,The display is lock parameter data,this time must let off key about 0.2 sec,press again,the cursor(twinkle express)is cycle moving left.
- Page 3 DEL1(Alarm Delay 1 setting 1.Decide delay 1with or or key(0~99.9 sec) page) 2.Press key enter data and int o DEL2 setting page Value on EEPROM reset=0 DEL2(Alarm Delay 2 setting 1.Decide delay 2 with or or key(0~99.9sec) ...
- Page 4 MMC Modbus RTU Mode Protocol Address Map Data format 16Bit/32Bit,sign bit 8000~7FFF( –32768~32767 )/80000000~7FFFFFFF(-2147483648~2147483647) Address Name Description Accept 0000 Decimal point position,range0000~0004(0~4)0:10 ,1:10 ,2:10 ,3:10 ,4:10 0002 TYPE Input type,range0000~0002(0~2)0:1U2D,1:1P2D,2:1A2B 0004 ACT1 Alarm active 1,range0000~0001(0~1)0:HI,1:LO 0006 ACT2 Alarm active 2,range0000~0001(0~1)0:HI,1:LO 0008 HYS1 Alarm hysteresis 1,range0000~03E7(0~999) 000A...
