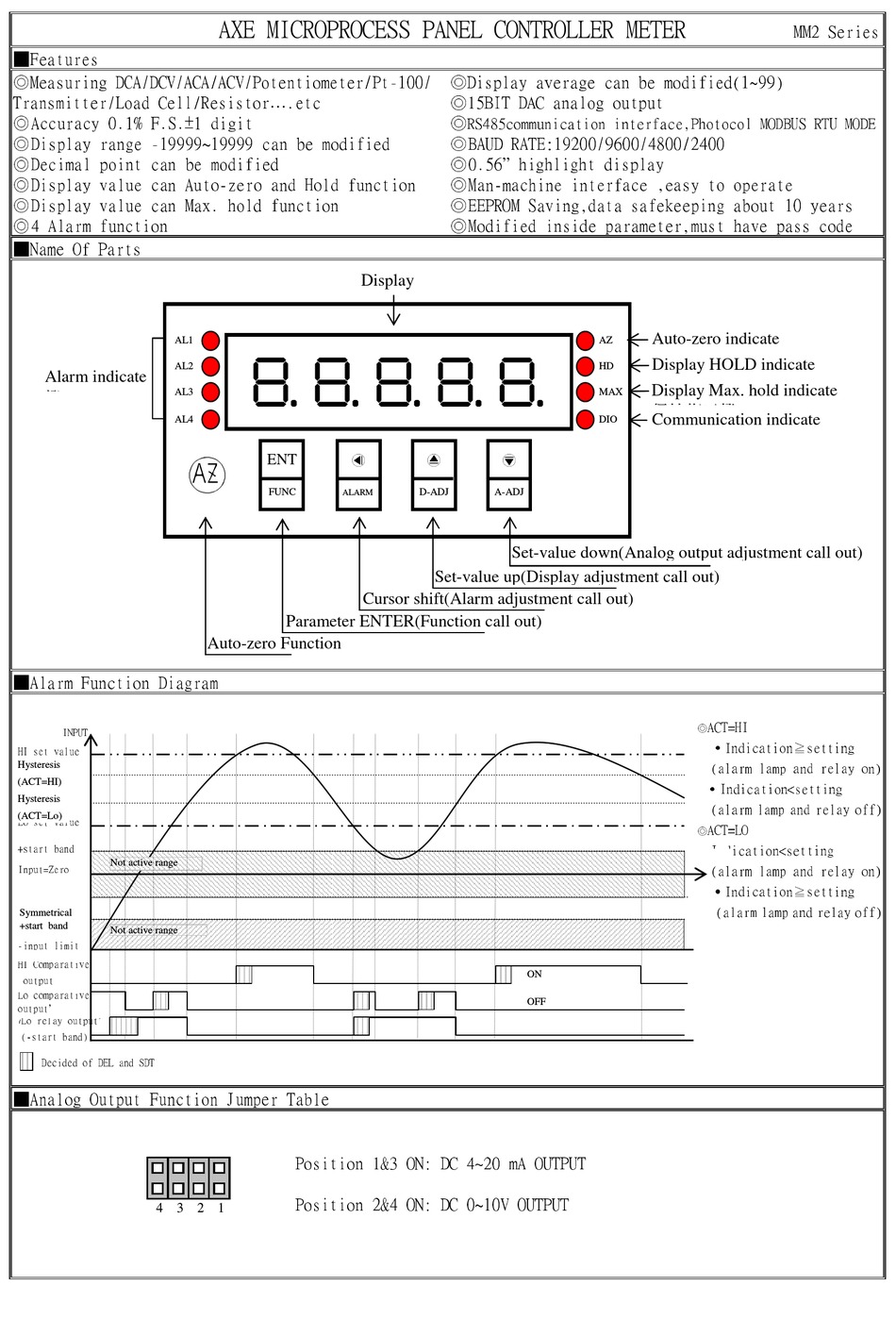

AXE MM2 Series Manual

■ F e a t u r e s
◎ M e a s u r i n g D C A / D C V / A C A / A C V / P o t e n t i o m e t e r / P t - 1 0 0 /
T r a n s m i t t e r / L o a d C e l l / R e s i s t o r ... . e t c
◎ A c c u r a c y 0 . 1 % F . S . ± 1 d i g i t
◎ D i s p l a y r a n g e - 1 9 9 9 9 ~ 1 9 9 9 9 c a n b e m o d i f i e d
◎ D e c i m a l p o i n t c a n b e m o d i f i e d
◎ D i s p l a y v a l u e c a n A u t o - z e r o a n d H o l d f u n c t i o n
◎ D i s p l a y v a l u e c a n M a x . h o l d f u n c t i o n
◎ 4 A l a r m f u n c t i o n
■ N a m e O f P a r t s
AL1
AL2
Alarm indicate
AL3
燈
AL4
■ A l a r m F u n c t i o n D i a g r a m
I N P U T
H I s e t v a l u e
Hysteresis
(ACT=HI)
Hysteresis
(ACT=Lo)
L o s e t v a l u e
+ s t a r t b a n d
Not active range
I n p u t = Z e r o
Symmetrical
- s t a r t b a n d
+start band
Not active range
- i n p u t l i m i t
H I C o m p a r a t i v e
o u t p u t
L o c o m p a r a t i v e
o u t p u t '
L o r e l a y o u t p u t '
( - + t a r t b a n d )
( - s t a r t b a n d )
D e c i d e d o f D E L a n d S D T
■ A n a l o g O u t p u t F u n c t i o n J u m p e r T a b l e
4 3 2 1
AXE MICROPROCESS PANEL CONTROLLER METER

ENT 

E
FUNC
ALARM
Parameter ENTER(Function call out)
Auto-zero Function
P o s i t i o n 1 & 3 O N : D C 4 ~ 2 0 m A O U T P U T
P o s i t i o n 2 & 4 O N : D C 0 ~ 1 0 V O U T P U T
◎ D i s p l a y a v e r a g e c a n b e m o d i f i e d ( 1 ~ 9 9 )
◎ 1 5 B I T D A C a n a l o g o u t p u t
◎
R S 4 8 5 c o m m u n i c a t i o n i n t e r f a c e , P h o t o c o l M O D B U S R T U M O D E
◎ B A U D R A T E : 1 9 2 0 0 / 9 6 0 0 / 4 8 0 0 / 2 4 0 0
◎ 0 . 5 6 " h i g h l i g h t d i s p l a y
◎ M a n - m a c h i n e i n t e r f a c e , e a s y t o o p e r a t e
◎ E E P R O M S a v i n g , d a t a s a f e k e e p i n g a b o u t 1 0 y e a r s
◎ M o d i f i e d i n s i d e p a r a m e t e r , m u s t h a v e p a s s c o d e
Display
 
D-ADJ A-ADJ
Set-value down(Analog output adjustment call out)
Set-value up(Display adjustment call out)
Cursor shift(Alarm adjustment call out)
ON
OFF
Auto-zero indicate
AZ
Display HOLD indicate
HD
Display Max. hold indicate
MAX
Communication indicate 保 持 指 示 燈
DIO
◎
A C T = H I
˙ I n d i c a t i o n ≧ s e t t i n g
( a l a r m l a m p a n d r e l a y o n )
˙ I n d i c a t i o n < s e t t i n g
( a l a r m l a m p a n d r e l a y o f f )
◎
A C T = L O
I n d i c a t i o n < s e t t i n g
( a l a r m l a m p a n d r e l a y o n )
˙ I n d i c a t i o n ≧ s e t t i n g
( a l a r m l a m p a n d r e l a y o f f )
M M 2 S e r i e s
