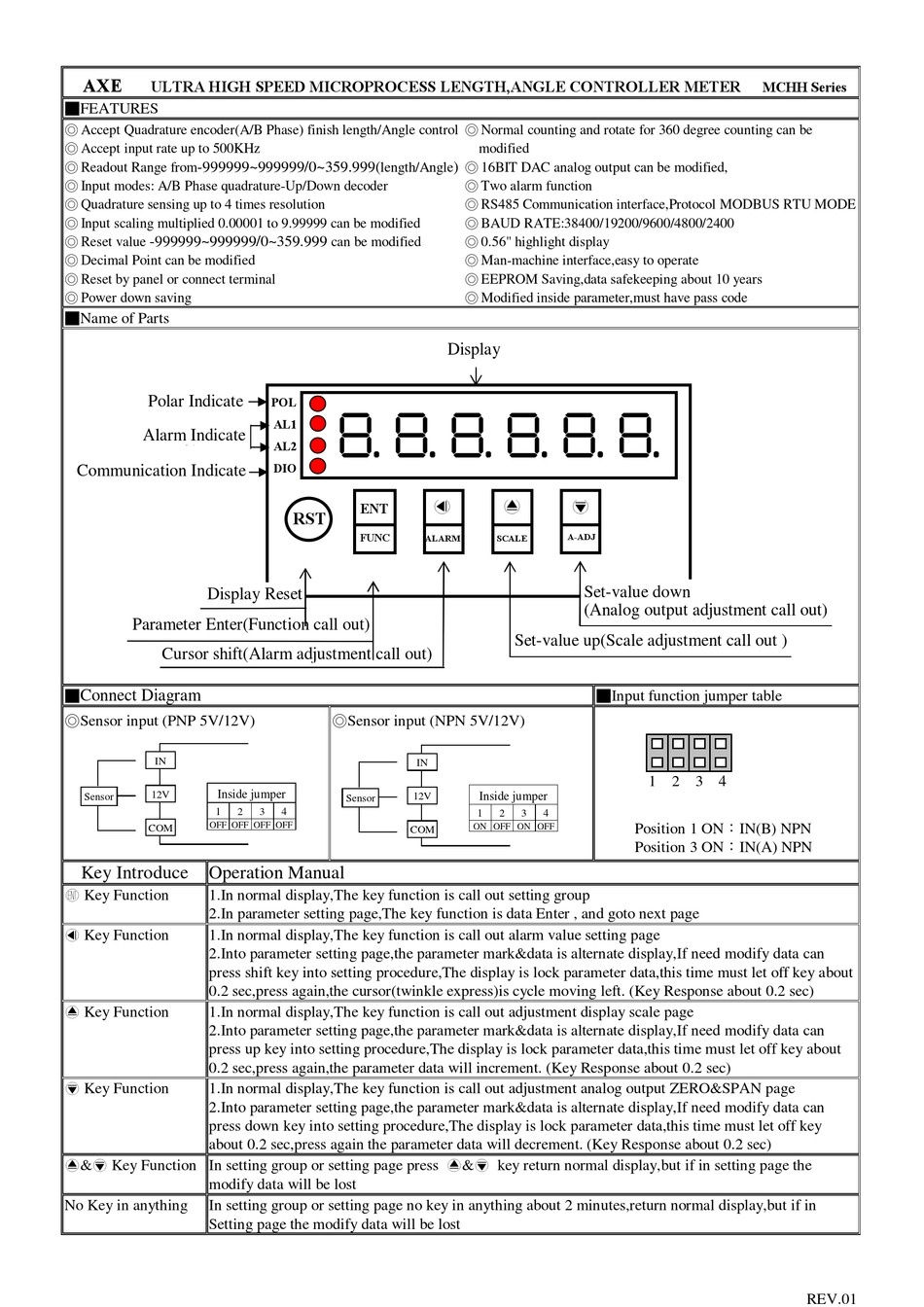

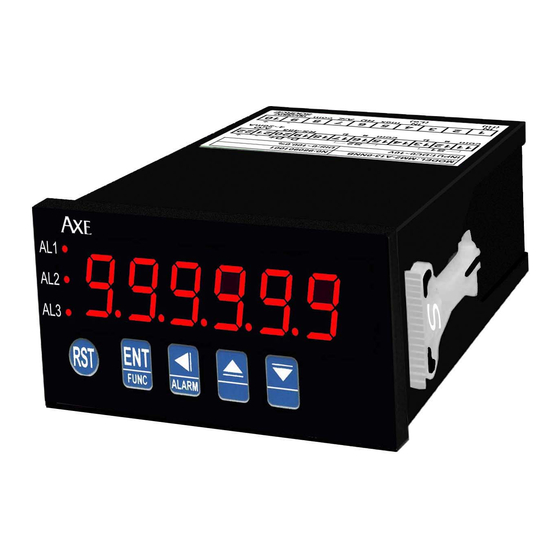

AXE MCHH Series Operation Manual

AXE
ULTRA HIGH SPEED MICROPROCESS LENGTH,ANGLE CONTROLLER METER
■FEATURES
◎ Accept Quadrature encoder(A/B Phase) finish length/Angle control ◎ Normal counting and rotate for 360 degree counting can be
◎ Accept input rate up to 500KHz
◎ Readout Range from
-999999~999999/0~359.999(
◎ Input modes: A/B Phase quadrature-Up/Down decoder
◎ Quadrature sensing up to 4 times resolution
◎ Input scaling multiplied 0.00001 to 9.99999 can be modified
◎ Reset value
-999999~999999/0~359.999
◎ Decimal Point can be modified
◎ Reset by panel or connect terminal
◎ Power down saving
■Name of Parts
Polar Indicate
Alarm Indicate
燈
Communication Indicate
Display Reset
Parameter Enter(Function call out)
Cursor shift(Alarm adjustment call out)
■
Connect Diagram
◎Sensor input (PNP 5V/12V)
IN
Inside jumper
12V
Sensor
1 2
OFF OFF OFF OFF
COM
Key Introduce Operation Manual
 Key Function
1.In normal display,The key function is call out setting group
2.In parameter setting page,The key function is data Enter , and goto next page
 Key Function
1.In normal display,The key function is call out alarm value setting page
2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can
press shift key into setting procedure,The display is lock parameter data,this time must let off key about
0.2 sec,press again,the cursor(twinkle express)is cycle moving left. (Key Response about 0.2 sec)
 Key Function
1.In normal display,The key function is call out adjustment display scale page
2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can
press up key into setting procedure,The display is lock parameter data,this time must let off key about
0.2 sec,press again,the parameter data will increment. (Key Response about 0.2 sec)
 Key Function
1.In normal display,The key function is call out adjustment analog output ZERO&SPAN page
2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can
press down key into setting procedure,The display is lock parameter data,this time must let off key
about 0.2 sec,press again the parameter data will decrement. (Key Response about 0.2 sec)
& Key Function In setting group or setting page press & key return normal display,but if in setting page the
modify data will be lost
No Key in anything In setting group or setting page no key in anything about 2 minutes,return normal display,but if in
Setting page the modify data will be lost
length/Angle
can be modified
POL

AL1
AL2
DIO

ENT
RST
EN
FUNC
ALARM
◎Sensor input (NPN 5V/12V)
IN
12V
Sensor
3 4
COM
modified
◎ 16BIT DAC analog output can be modified,
)
◎ Two alarm function
◎ RS485 Communication interface,Protocol MODBUS RTU MODE
◎ BAUD RATE:38400/19200/9600/4800/2400
◎ 0.56" highlight display
◎ Man-machine interface,easy to operate
◎ EEPROM Saving,data safekeeping about 10 years
◎ Modified inside parameter,must have pass code
Display
 
A-ADJ
SCALE
Set-value down
(Analog output adjustment call out)
Set-value up(Scale adjustment call out )
■Input function jumper table
Inside jumper
1 2 3 4
ON OFF ON OFF
MCHH Series
1 2 3 4
Position 1 ON：IN(B) NPN
Position 3 ON：IN(A) NPN
