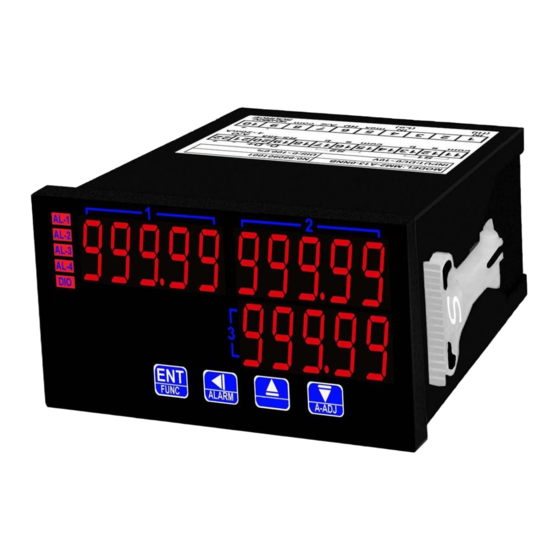

AXE MMRD-M Series Operation Manual

AXE
MICROPROCESS DUAL INPUT(MATH FUNCTION) RPM & LINE-SPEED CONTROLLER METER

■ Features

◎Dual input measure and display sensor pulse or AC signal
◎Accuracy 0.03% F.S.
◎Input range(0~25KHz)
◎Readout range D1/D2(0~99999),D3(-19999~99999)
◎RPM or LINE-SPEED can be modified
◎
Dual input math function(B-A,(B+A)/2,B/A,(B/A)-1,1-(B/A),B/(A+B))
◎Input pulse per revolution can be modified(1~99999)
◎
Diameter(LINE-SPEED)/Scale(RPM) can be modified(0.0001~9.9999)
◎Display average times can be modified(1~99)

■ Name of Parts

■ Connect Diagram

◎ Contact input (PNP)
IN
Inside jumper
SW1 SW2
12V
1 2
OFF ON OFF
COM
◎ Contact input (NPN)
IN
Inside jumper
SW1 SW2
12V
1 2
ON ON
COM

■ Alarm Function description

◎ When ACT=HI,DEL= 0 :
◎ When ACT=LO,DEL= 0 :
◎ When ACT=HI,DEL= 1 ~ 99 sec.: Display value > Setting value(AL) + Hysteresis (HYS) + Delay time(DEL) à (Relay on)
◎ When ACT=LO,DEL= 1 ~ 99 sec.: Display value >= Setting value(AL) + Hysteresis (HYS) à (Relay off)
◎ When ACT=HI,DEL= -1 ~ -99 sec.:Display value > Setting value(AL) + Hysteresis (HYS) à (Relay one shoot(DEL) and then off)
◎ When ACT=LO,DEL= -1~ -99 sec.:Display value >= Setting value(AL) + Hysteresis (HYS)à(Relay restore normal after the procedure)

Key Introduce

Operation Manual
 Key Function
1.In normal display,The key function is call out setting group
2.In parameter setting page,The key function is data Enter , and goto next page
 Key Function
1.In normal display,The key function is call out alarm value setting page
2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can press
 key into setting procedure,The display is lock parameter data,this time must let off key about 0.2
sec,press again,the cursor(twinkle express)is cycle moving left. (Key Response about 0.2 sec)
◎ Sensor input (PNP 5V/12V)
Sensor
1 2
ON
◎ Sensor input (NPN 5V/12V)
Sensor
1 2
ON ON
Display value > Setting value(AL) + Hysteresis (HYS) à (Relay on)
Display value <= Setting value(AL) - Hysteresis (HYS) à (Relay off)
Display value >= Setting value(AL) + Hysteresis (HYS) à (Relay off)
Display value < Setting value(AL) - Hysteresis (HYS) à (Relay on)
Display value <= Setting value(AL) - Hysteresis (HYS) à (Relay off)
Display value < Setting value(AL) - Hysteresis (HYS) + Delay time(DEL) à (Relay on)
Display value <= Setting value(AL) - Hysteresis (HYS) à (Relay restore normal after the procedure)
Display value < Setting value(AL) - Hysteresis (HYS) à (Relay one shoot(DEL) and then off)
◎16BIT DAC analog output can be modified,
◎Four independent alarm with delay and hysteresis function
◎
RS485 Communication interface, Protocol MODBUS RTU MODE
◎BAUD RATE:38400/19200/9600/4800/2400
◎0.4" LED highlight display
◎Decimal point can be modified
◎Man-machine interface, easy to operate
◎EEPROM Saving, data safekeeping about 10 years
◎Modified inside parameter, must have pass code

■Input function jumper table

IN
Inside jumper
SW1 SW2
12V
1 2 1 2
OFF OFF OFF OFF
COM
◎ Position 1 ON:IN(A)/IN(B) -> (NPN)
◎Position 1 OFF:IN(A)/IN(B) -> (PNP)
IN
Inside jumper
◎Position 2 ON :IN(A)/IN(B) -> (0~50HZ)
SW1 SW2
12V
1 2 1 2
◎Position 2 OFF:IN(A)/IN(B) -> (0~25KHZ)
ON OFF ON OFF
COM
MMRD-M Series
SW1
SW2
4 3 2 1
4 3 2 1
Rev.00
