AXE MC48 Series Operation Manual

5 digit high speed microprocess counter(48x48mm)
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
AXE
5 DIGIT HIGH SPEED MICROPROCESS COUNTER(48x48mm)

■ FEATURES

◎ Accepts input rates up to 50KHz
◎ Accept more type sensors(switch, encoder, proximity switch ◎ 16BIT DAC analog output can be modified
,...etc)finish length/flow control
◎ Readout Range from -19999~99999
◎ Seven counting modes:Front/after edge,Up,Down,Up/Down,
direct-Up/Down ,Quadrature-Up/Down can be modified
◎ Power down saving
◎ Decimal point can be modified
◎ Input scaling multiplied 0.0001~9.9999 can be modified
◎ Reset by panel or connect terminal

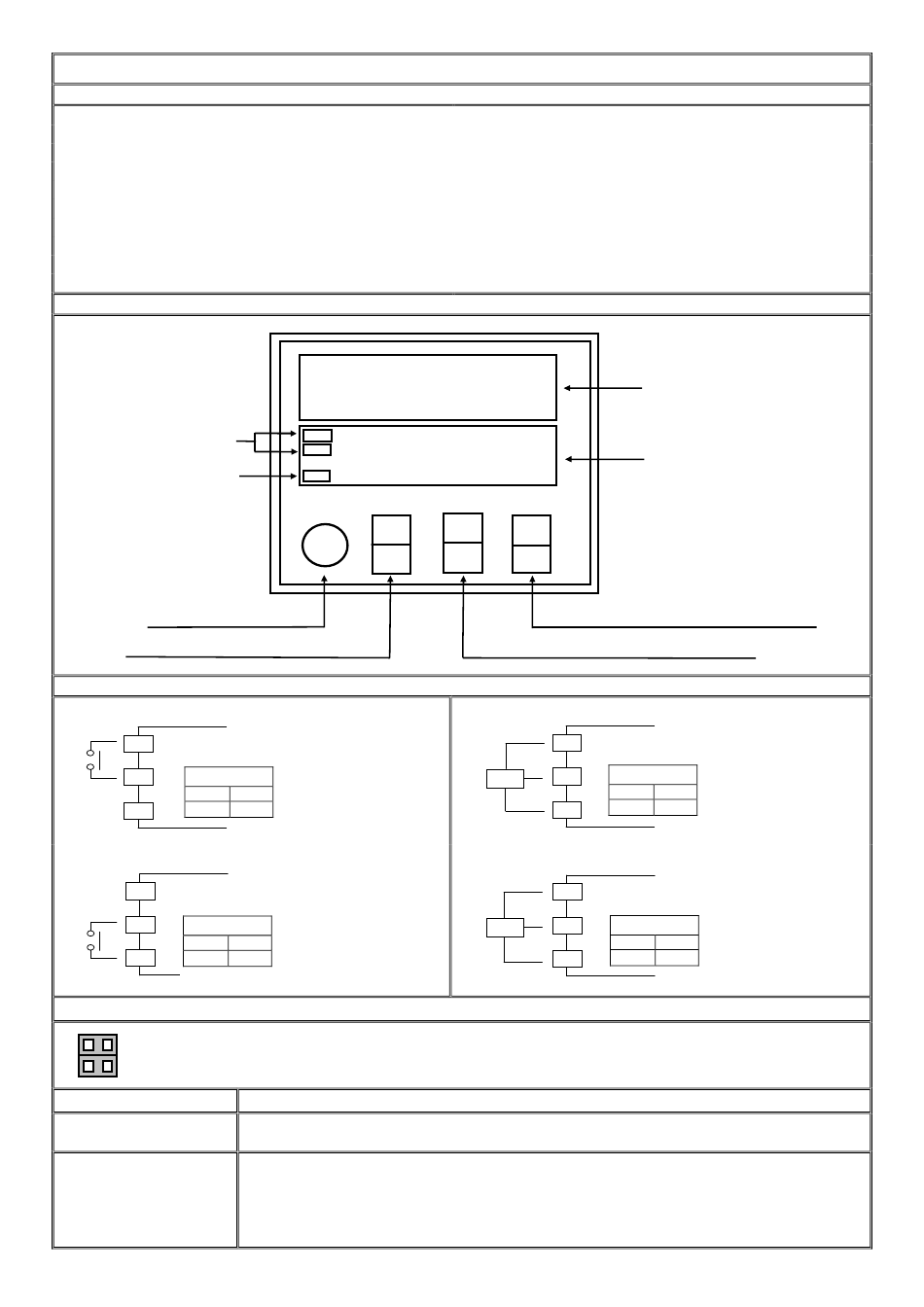

■ Name of Parts

Alarm Indicate
Communication Indicate
Count value/Alarm
Parameter Enter(Function call out)

Connect Diagram

■
◎ Contact input (PNP)
12V
Inside jumper
IN
1
OFF
COM
◎ Contact input (NPN)
12V
IN
Inside jumper
1
ON
COM

■ Inside jumper illustrates

Position
1 IN1 Input, ON = NPN,OFF = PNP
1
2
Position
2 IN2 Input, ON = NPN,OFF = PNP
Key Introduce

Key Function

Key Function

AL1

AL2
DIO
ENT
RST
FUNC
Reset
2
OFF
2
ON
1.In normal display, The key function is call out setting group
2.In parameter setting page, The key function is data Enter , and go to next page
1.In normal display, The key function is call out alarm value setting page
2.Into parameter setting page, the parameter mark & data is alternate display, If need modify data
can press  key into setting procedure, The display is lock parameter data, this time must let off
key about 0.2 sec, press again, the cursor(twinkle express)is cycle moving left. (Key Response
about 0.2 sec)
◎ Quadrature sensing up to 4 times resolution
◎ Seven alarm control mode (N/F/R/Q/C/P/K) can be modified
◎ RS485 Communication interface, Protocol MODBUS RTU
MODE
◎ BAUD RATE:38400/19200/9600/4800/2400
◎ 0.4" highlight display
◎ Man-machine interface, easy to operate
◎ EEPROM Saving, data safekeeping about 10 years
◎ Modified inside parameter, must have pass code
ALARM
SCALE
Set-value up(Scale adjustment call out )
Cursor shift(Alarm adjustment call out)
◎ Sensor input (PNP 5V/12V)
12V
Inside jumper
IN
Sensor
COM
◎ Sensor input (NPN 5V/12V)
12V
IN
Inside jumper
Sensor
COM
Operation Manual
MC48 series
Count value display
AL1 Setting value display
1
2
OFF
OFF
1
2
ON
ON
Rev.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC48 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXE MC48 Series

Summary of Contents for AXE MC48 Series

  • Page 1 5 DIGIT HIGH SPEED MICROPROCESS COUNTER(48x48mm) MC48 series ■ FEATURES ◎ Accepts input rates up to 50KHz ◎ Quadrature sensing up to 4 times resolution ◎ Accept more type sensors(switch, encoder, proximity switch ◎ 16BIT DAC analog output can be modified ◎...
  • Page 2  Key Function 1.In normal display, The key function is call out adjustment display scale page 2.Into parameter setting page, the parameter mark & data is alternate display,If need modify data can press  key into setting procedure, The display is lock parameter data, this time must let off key about 0.2 sec, press again, the parameter data will increment.
  • Page 3 1.Press  key decide AOP setting group , press  key into ANLO AOP(Analog output setting  group) setting page 1. Decide ANLO with  or  key (-19999~99999) ANLO(Analog Output Zero-  2. Press  key enter data and into ANHI setting page According to Display) ...
  • Page 4 ■ I n p u t T y p e a n d C o u n t V a l u e U P ( I n c r e m e n t ) T y p e 1 U 2 G ( P N P ) 1 G 2 U ( N P N ) I N ( A ) : C o u n t i n p u t ;...
  • Page 5 ■ Alarm Output Mode Setting Input Type Operation Description DOWN UP/DOWN Alarm The display value continues to Output increase/decrease. Mode Reset The OUT1 output setting are held until 9 9 9 9 9 Reset is input. OUT2 OUT1 As soon as OUT1 has active,the display value are Reset...
  • Page 6 Input Type Operation Description DOWN UP/DOWN Alarm As soon as the Output count reaches Mode Reset AL1,the display setting value return to the 9 9 9 9 9 reset start status The output repeat OUT1 one-shot operation. OUT2 self-holding output turns OFF after the OUT1 one-shot OUT2...
  • Page 7 MC48 Modbus RTU Mode Protocol Address Map Data format 16Bit/32Bit, sign bit 8000~7FFF(-32768~32767),80000000~7FFFFFFF(-2147483648~2147483647) Accept Address Name Description 0000 P.OFF.M Power Off Mode, Input Range 0000~0001 (0~1)(0: RESET,1:MEMOR) 0001 Decimal Point, Input Range 0000~0004 (0~4)(0:10 ,1:10 ,2:10 ,3:10 ,4:10 0002 TYPE Input Type, Input Range 0000~0006 (0:1U2G,1:1G2U,2:1D2G,3:1G2D,4:1U2D,5:1P2D,6:1A2B) 0003 LOCK...
