AXE

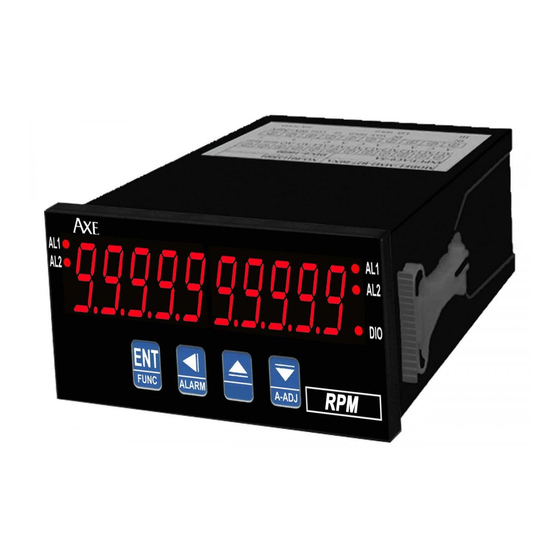

MICROPROCESS DUAL INPUT RPM & LINE-SPEED CONTROLLER METER
■ Features
◎Dual input measure and display sensor pulse or AC signal ◎16BIT DAC analog output can be modified,
◎Accuracy 0.03% F.S.
◎Input range(0~25KHz)
◎Readout range(0~99999)
◎RPM or LINE-SPEED can be modified
◎Input pulse per revolution can be modified(1~99999)
◎Diameter(LINE-SPEED)/Scale(RPM) can be modified
(0.0001~9.9999)
◎Display average times can be modified(1~99)
■ Name of Parts
IN2 Alarm Indicate
■ Connect Diagram
◎ Contact input (PNP)
IN
Inside jumper
SW1 SW2
12V
1
2
OFF
ON
OFF
COM
◎ Contact input (NPN)
IN
Inside jumper
SW1 SW2
12V
1
2
ON
ON
COM
■ Alarm Function description
◎ When ACT=HI,DEL= 0 :
◎ When ACT=LO,DEL= 0 :
◎ When ACT=HI,DEL= 1 ~ 99 sec.: Display value > Setting value(AL) + Hysteresis (HYS) + Delay time(DEL) à (Relay on)
◎ When ACT=LO,DEL= 1 ~ 99 sec.: Display value >= Setting value(AL) + Hysteresis (HYS) à (Relay off)
◎ When ACT=HI,DEL= -1 ~ -99 sec.:Display value > Setting value(AL) + Hysteresis (HYS) à (Relay one shoot(DEL) and then off)
◎ When ACT=LO,DEL= -1~ -99 sec.:Display value >= Setting value(AL) + Hysteresis (HYS)à(Relay restore normal after the procedure)
IN2 Display
AL1
AL2
ENT
E
FUNC
ALARM
Parameter Enter (Function call out)
◎ Sensor input (PNP 5V/12V)
Sensor
1
2
ON
◎ Sensor input (NPN 5V/12V)
Sensor
1
2
ON
ON
Display value > Setting value(AL) + Hysteresis (HYS) à (Relay on)
Display value <= Setting value(AL) - Hysteresis (HYS) à (Relay off)
Display value >= Setting value(AL) + Hysteresis (HYS) à (Relay off)
Display value < Setting value(AL) - Hysteresis (HYS) à (Relay on)
Display value <= Setting value(AL) - Hysteresis (HYS) à (Relay off)
Display value < Setting value(AL) - Hysteresis (HYS) + Delay time(DEL) à (Relay on)
Display value <= Setting value(AL) - Hysteresis (HYS) à (Relay restore normal after the procedure)
Display value < Setting value(AL) - Hysteresis (HYS) à (Relay one shoot(DEL) and then off)
◎2 set independent alarm outputs with delay/hysteresis function
◎
RS485 Communication interface, Protocol MODBUS RTU MODE
◎BAUD RATE:38400/19200/9600/4800/2400
◎Decimal point can be modified
◎0.4" LED highlight display
◎Man-machine interface, easy to operate
◎EEPROM Saving, data safekeeping about 10 years
◎Modified inside parameter, must have pass code
IN1 Display
A-ADJ
Set-value down(Analog output adjustment call out)
Set-value up
Cursor shift(Alarm adjustment call out)
IN
Inside jumper
SW1 SW2
12V
1
2
1
2
OFF
OFF
OFF
OFF
COM
IN
Inside jumper
SW1 SW2
12V
1
2
1
2
ON
OFF
ON
OFF
COM
AL1
IN1 Alarm Indicate
AL2
Communication Indicate
DIO
■Input function jumper table
SW1
SW2
4 3 2 1
4 3 2 1
◎ Position 1 ON:IN(A)/IN(B) -> (NPN)
◎Position 1 OFF:IN(A)/IN(B) -> (PNP)
◎Position 2 ON :IN(A)/IN(B) -> (0~50HZ)
◎Position 2 OFF:IN(A)/IN(B) -> (0~25KHZ)
MMRD Series
Rev.00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AXE MMRD Series
Summary of Contents for AXE MMRD Series
- Page 1 MICROPROCESS DUAL INPUT RPM & LINE-SPEED CONTROLLER METER MMRD Series ■ Features ◎Dual input measure and display sensor pulse or AC signal ◎16BIT DAC analog output can be modified, ◎Accuracy 0.03% F.S. ◎2 set independent alarm outputs with delay/hysteresis function ◎Input range(0~25KHz)
- Page 2 Key Introduce Operation Manual Key Function 1.In normal display,The key function is call out setting group 2.In parameter setting page,The key function is data Enter , and goto next page Key Function 1.In normal display,The key function is call out alarm value setting page 2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can press ...
- Page 3 2.Press key enter data and into CODE setting page times) Default = 5 1.Decide pass code with && key(0~99999) CODE(Pass Code) 4-10 2.Press key enter data and into LOCK setting page Default = 0 1.Decide panel lock with & key(NO or YES) ...
- Page 4 1.Decide parity check with or key(n82,n81,even,odd) PARI(Communication Parity 2.Press key enter data and return DOP setting group Check setting page) Default = n82 Press key decide AOP setting group , press key into AO.SEL ...
- Page 5 MMRD Modbus RTU Mode Protocol Address Map Data format 16Bit/32Bit, sign bit 8000~7FFF(-32768~32767),80000000~7FFFFFFF(-2147483648~2147483647) Address Name Description Accept 0000 IN1 Decimal Point,Input Range 0000~0004(0~4)(0:10 ,1:10 ,2:10 ,3:10 ,4:10 0001 IN2 Decimal Point,Input Range 0000~0004(0~4)(0:10 ,1:10 ,2:10 ,3:10 ,4:10 0002 TYPE Input Type,Input Range 0000~0001(0~1)(0:RPM,1:LINE) 0003 LOCK Panel Lock,Input Range 0000~0001(0~1)(0:NO,1:YES)
