AXE MFRTS Series Operation Manual

AXE
MICROPROCESS PULSE INPUT RATE & TOTALIZER METER (SELF-POWER)

■FEATURES

◎Accept Non-voltage input (Contact/NPN) or DC voltage
input(NPN/PNP)or magnetic pick up 0.5~15V signal
◎ Accuracy 0.05% F.S.
◎Rate display range 0~99999 can be modified
◎ Totalizer display range 0~99999999
◎ Input range 0.01Hz~1KHz
◎ Rate and Totalizer decimal point can be modified
◎ Totalizer timebase can be modified(1/60/3600sec)

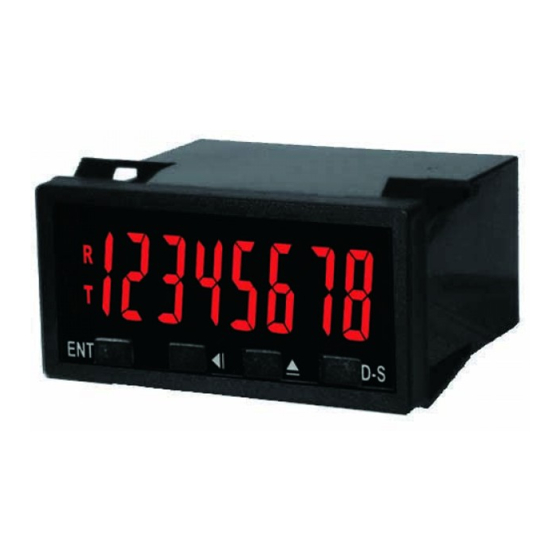

■Name of Parts

Rate Display indicate
Totalizer Display indicate

■ Signal input terminal wiring and internal jumper diagram

◎Contact input (No-voltage input)
)
INPUT(+
)
INPUT(-
RESET(+
RESET(-)
◎PNP/NPN input(DC voltage input 1V~15V)
V+
V+
INPUT(+
INPUT(-
RESET(+
RESET(-)

■ External power jumper diagram

◎
Internal battery power "OFF"
PIN
"OFF"
POWER

R
T

ENT
Cursor shift
Parameter ENTER(Function call out)
Inside jumper
1 2
)
ON ON
)
Inside jumper
)
1 2
)
OFF OFF
JUMP
◎Scale can be modified(0.0001 to 9999.9999)
◎Totalizer over automatic reset or external reset
◎Display average can be modified(1~99)
◎ Man-machine interface,easy to operate
◎ EEPROM Saving ,data safekeeping about 10 years
◎ Modified inside parameter ,must have pass code
◎ Battery life about 9 year minimum with continuous
Display

D-S
Set-value up
◎NPN input (No-voltage input)
◎Magnetic pick-up 0.5~15V input
Sensor
◎Internal battery power"ON"
PIN
"ON"
POWER
1
MFRTS series
Display manual form selection button
(Rate/ Totalizer is changed in turn)
)
INPUT(+
) Inside jumper
INPUT(-
1 2
)
RESET(+
ON OFF
RESET(-)
)
INPUT(+
)
INPUT(- Inside jumper
1 2
)
RESET(+
OFF OFF
RESET(-)
JUMP
Rev.1.0
