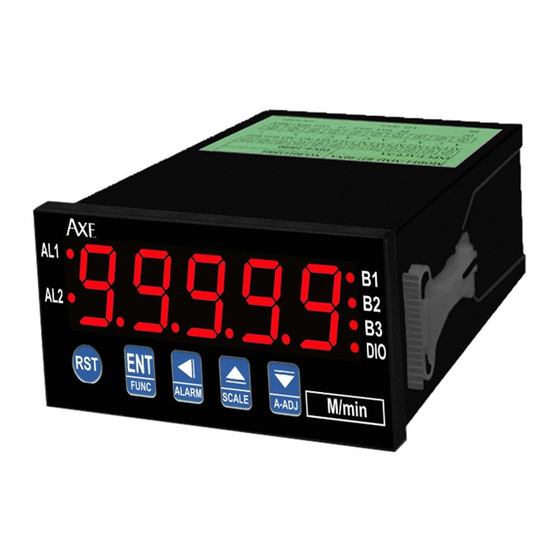

6 digit high speed microprocess counter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
AXE
■ FEATURES
◎ Accept more type sensors(switch, encoder, proximity switch
,...etc)finish length/flow control
◎ Readout Range from -999999~999999
◎ Seven counting modes:Front/after edge,Up,Down,Up/Down,
direct-Up/Down ,Quadrature-Up/Down can be modified
◎Power down saving
◎ Decimal point can be modified
◎ Input scaling multiplied 0.00001~9.99999 can be modified
◎ Reset by panel or connect terminal
◎ Quadrature sensing up to 4 times resolution

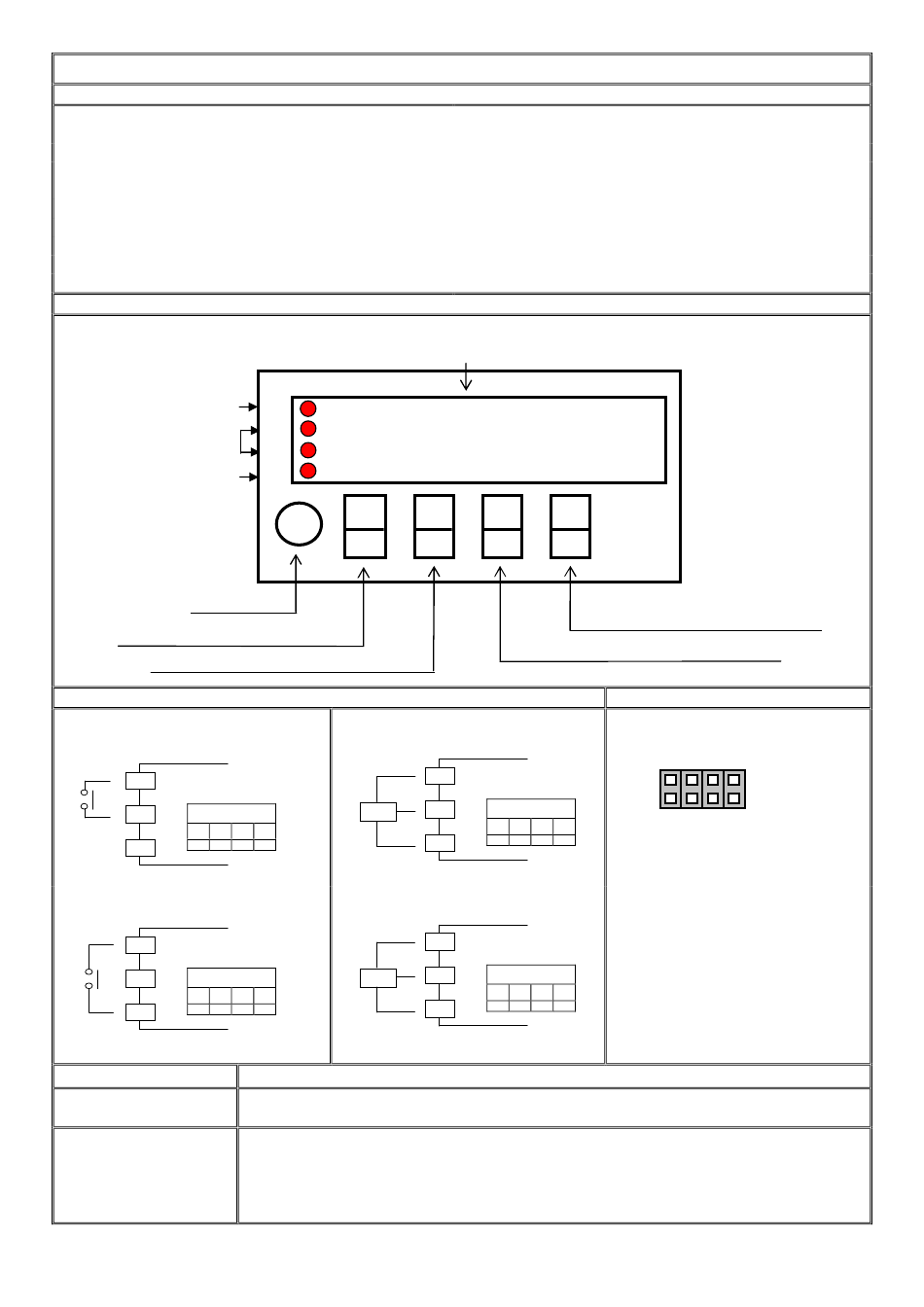

■ Name of Parts
Polar Indicate
Alarm Indicate
燈
Communication Indicate
Display Reset
Parameter Enter(Function call out)
Cursor shift(Alarm adjustment call out)
■ Connect Diagram
◎Contact input (PNP)
IN
Inside jumper
12V
1
2
OFF OFF OFF OFF
COM
◎Contact input (NPN)
IN
Inside jumper
12V
1
2
ON OFF ON OFF
COM
Key Introduce
Key Function
Key Function
6 DIGIT HIGH SPEED MICROPROCESS COUNTER
POL

AL1
AL2
DIO
ENT
RST
FUNC
◎Sensor input (PNP 5V/12V)
Sensor
3
4
◎Sensor input (NPN 5V/12V)
Sensor
3
4
1.In normal display, The key function is call out setting group
2.In parameter setting page, The key function is data Enter , and go to next page
1.In normal display, The key function is call out alarm value setting page
2.Into parameter setting page, the parameter mark & data is alternate display, If need modify data
can press shift key into setting procedure, The display is lock parameter data, this time must let off
key about 0.2 sec, press again, the cursor(twinkle express)is cycle moving left. (Key Response
about 0.2 sec)
◎ 16BIT DAC analog output can be modified
◎ Seven alarm control mode (N/F/R/Q/C/P/K) can be modified
◎ RS485 Communication interface, Protocol MODBUS RTU
MODE
◎ BAUD RATE:38400/19200/9600/4800/2400
◎ 0.56" highlight display
◎ Man-machine interface, easy to operate
◎ EEPROM Saving, data safekeeping about 10 years
◎ Modified inside parameter, must have pass code
Display
EN
A-ADJ
ALARM
SCALE
Set-value down
(Analog output adjustment call out)
Set-value up(Scale adjustment call out )
IN
Inside jumper
12V
1
2
3
4
OFF OFF OFF OFF
COM
IN
Inside jumper
12V
1
2
3
4
ON OFF ON OFF
COM
Operation Manual
MCH series
■
Input function jumper table
1 2 3 4
Position 1 ON：IN(B) NPN
Position 3 ON：IN(A) NPN
Rev.1.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCH Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXE MCH Series

Summary of Contents for AXE MCH Series

  • Page 1 6 DIGIT HIGH SPEED MICROPROCESS COUNTER MCH series ■ FEATURES ◎ Accept more type sensors(switch, encoder, proximity switch ◎ 16BIT DAC analog output can be modified ,…etc)finish length/flow control ◎ Readout Range from -999999~999999 ◎ Seven alarm control mode (N/F/R/Q/C/P/K) can be modified ◎...
  • Page 2  Key Function 1.In normal display, The key function is call out adjustment display scale page 2.Into parameter setting page, the parameter mark & data is alternate display, If need modify data can press up key into setting procedure, The display is lock parameter data, this time must let off key about 0.2 sec, press again, the parameter data will increment.
  • Page 3 1. Decide ANLO with  or  or  key (-999999~999999) ANLO(Analog Output Zero-   According to Display) 2. Press key enter data and into ANHI setting page  Default = 0 1. Decide ANHI with  or  or  key (-999999~999999) ANHI(Analog Output Span- ...
  • Page 4 ■ I n p u t T y p e a n d C o u n t V a l u e U P ( I n c r e m e n t ) T y p e 1 U 2 G ( P N P ) 1 G 2 U ( N P N ) I N ( A ) : C o u n t i n p u t ;...

  • Page 5: Input Type

    ■ Alarm Output Mode Setting Input Type Operation Description DOWN UP/DOWN Alarm The display value continues to Output increase/decrease. Mode Reset The OUT1 output setting are held until 9 9 9 9 9 9 Reset is input. OUT2 OUT1 As soon as OUT1 has active,the display value are Reset...
  • Page 6 Input Type Operation Description DOWN UP/DOWN Alarm As soon as the Output count reaches Mode Reset AL1,the display setting value return to the 9 9 9 9 9 9 reset start status The output repeat OUT1 one-shot operation. OUT2 self-holding output turns OFF after the OUT1 one-shot OUT2...
  • Page 7 MCH Modbus RTU Mode Protocol Address Map Data format 16Bit/32Bit, sign bit 8000~7FFF(-32768~32767),80000000~7FFFFFFF(-2147483648~2147483647) Accept Address Name Description Decimal Point,Input Range 0000~0005 (0~5)(0:10 0000 ,1:10 ,2:10 ,3:10 ,4:10 ,5:10 0001 TYPE Input Type,Input Range 0000~0006 (0:1U2G,1:1G2U,2:1D2G,3:1G2D,4:1U2D,5:1P2D,6:1A2B) 0002 LOCK Panel Lock,Input Range 0000~0001 (0~1)(NO/YES) 0003 OP.MODE Output Mode,Input Range 0000~0006 (0~6)(0:N,1:F,2:R,3:Q,4:C,5:P,6:K) 0004...
