AXE MMRH Series Manual

AXE Microprocess RPM & Line-speed maths controller meter

■ Features

◎ Accept more type sensors(switch,encoder,proximity
switch,...etc)finish RPM/LINE SPEED transmit
◎ Accuracy 0.03% F.S.
◎ Input range(0~200KHz)
◎ Readout range(- 1 9 9 9 9 ~99999)
◎ RPM/LINE or LINE-SPEED unit can be modified
◎ Daul input math function, B-A,B/A,(B/A)-1,1-(B/A),B/(A+B) ◎ Decimal point can be modified
◎ Input pulse of revolution can be modified(1~99999)
◎ Diameter(LINE-SPEED)/scale(RPM) can be modified
(0.0001~9.9999)
◎ Display avrage times can be modified(1~99)

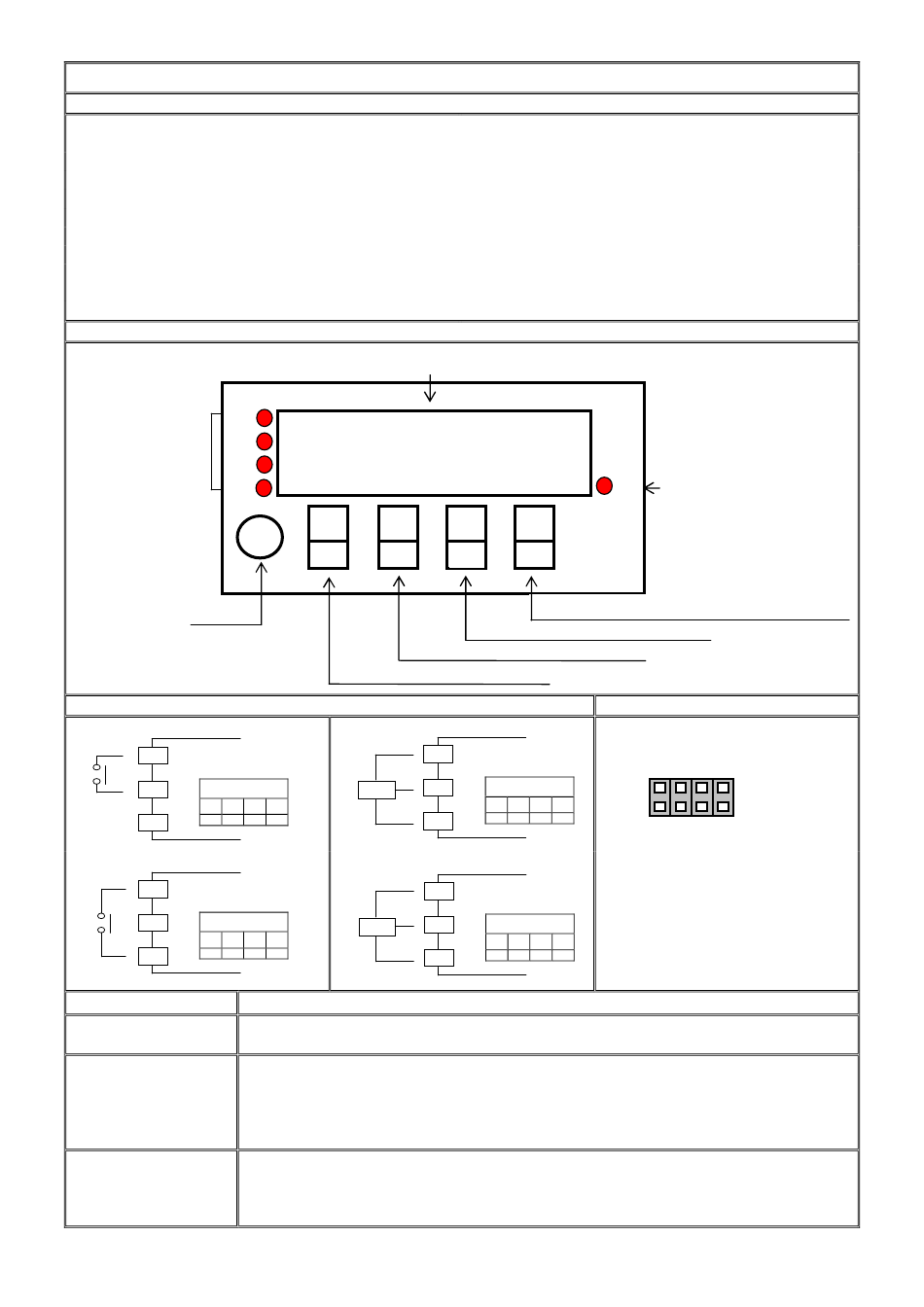

■ Name of Parts

AL1
AL2
Alarm Indicate
AL3
AL4
No Use

■ Connect Diagram

◎Contact input (PNP)
IN
12V Inside jumper
1 2
OFF OFF OFF OFF
COM
◎Contact input (NPN)
IN
Inside jumper
12V
1 2
ON OFF ON OFF
COM
Key Introduce Operation Manual

 Key Function

1.In normal display,The key function is call out setting group
2.In parameter setting page,The key function is data Enter , and goto next page
 Key Function
1.In normal display,The key function is call out alarm value setting page
2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can
press shift key into setting procedure,The display is lock parameter data,this time must let off key
about 0.2 sec,press again,the cursor(twinkle express)is cycle moving left. (Key Response about 0.2
sec)
 Key Function
1.In normal display,The key function is call out adjustment display scale page
2.Into parameter setting page,the parameter mark&data is alternate display,If need modify data can
press up key into setting procedure,The display is lock parameter data,this time must let off key
about 0.2 sec,press again,the parameter data will increment. (Key Response about 0.2 sec)
Display


ENT
AZ E
FUNC
ALARM
Cursor shift(Alarm adjustment call out)
Parameter Enter(Function call out)
◎Sensor input (PNP 5V/12V)
Sensor
3 4
◎Sensor input (NPN 5V/12V)
Sensor
3 4
◎ 16BIT DAC analog output can be modified,
◎ Four alarm function
◎ 0.8" highlight display
◎ RS485 Communication interface,Protocol MODBUS RTU MODE
◎ BAUD RATE:38400/19200/9600/4800/2400
◎ Man-machine interface,easy to operate
◎ EEPROM Saving,data safekeeping about 10 years
◎ Modified inside parameter,must have pass code
 
D-ADJ A-ADJ
Set-value down(Analog output adjustment call out)
Set-value up(Scale adjustment call out)

■Input function jumper table

IN
Inside jumper
12V
1 2 3 4
OFF OFF OFF OFF
COM
IN
Inside jumper
12V
1 2 3 4
ON OFF ON OFF
COM
MMRH Series
Communication Indicate
DIO
1 2 3 4
Position 1 ON：IN(B) NPN
Position 3 ON：IN(A) NPN
Rev.1.1
