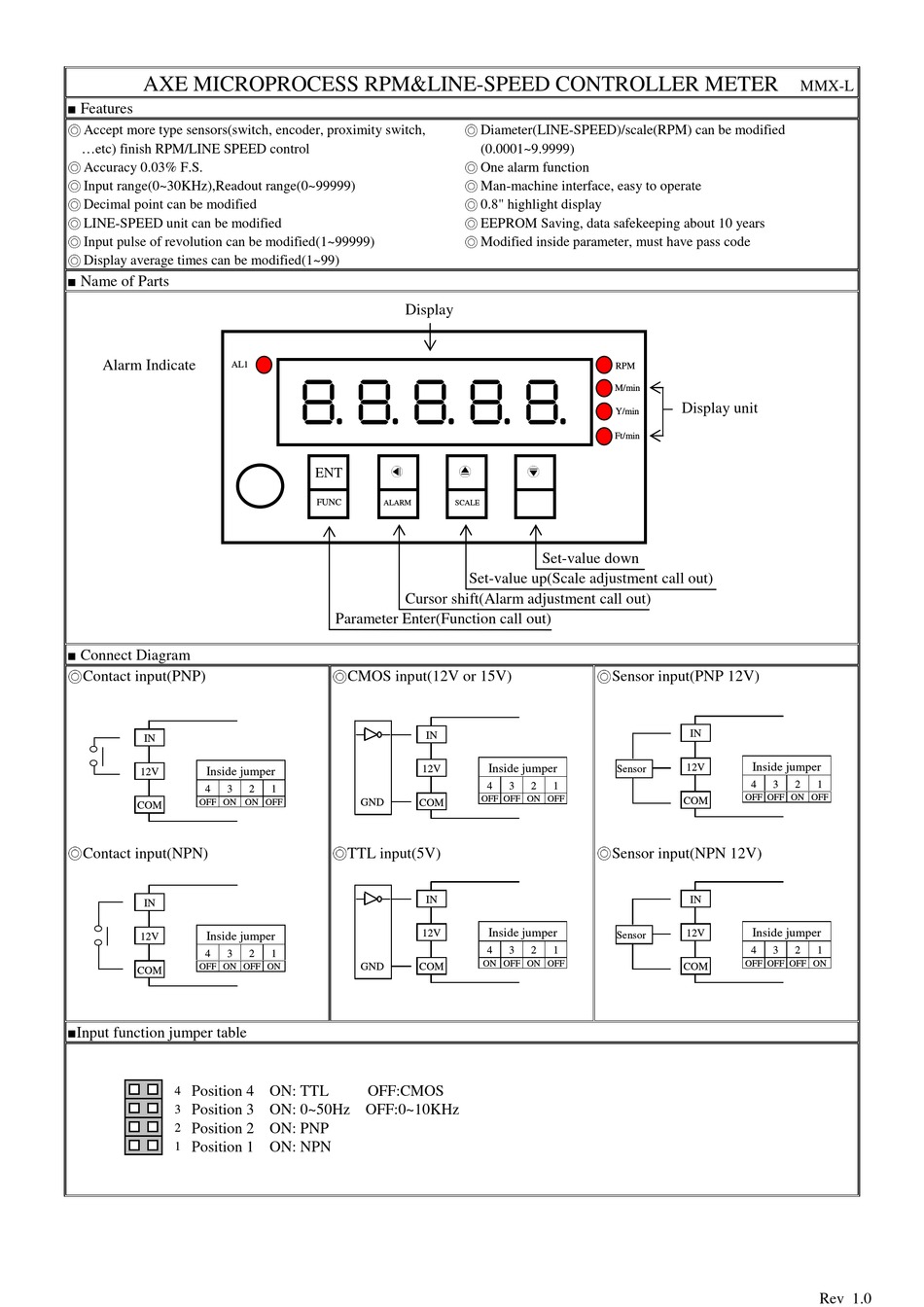

AXE MICROPROCESS RPM&LINE-SPEED CONTROLLER METER
■ Features
Accept more type sensors(switch, encoder, proximity switch,
...etc) finish RPM/LINE SPEED control
Accuracy 0.03% F.S.
Input range(0~30KHz),Readout range(0~99999)
Decimal point can be modified
LINE-SPEED unit can be modified
Input pulse of revolution can be modified(1~99999)
Display average times can be modified(1~99)
■ Name of Parts
Alarm Indicate
AL1
■ Connect Diagram
Contact input(PNP)
IN
Inside jumper
12V
4
3
OFF ON ON OFF
COM
Contact input(NPN)
IN
Inside jumper
12V
4
3
OFF ON OFF ON
COM
■Input function jumper table
Position 4 ON: TTL
4
Position 3 ON: 0~50Hz OFF:0~10KHz
3
Position 2 ON: PNP
2
Position 1 ON: NPN
1
Display

ENT
FUNC
ALARM
Cursor shift(Alarm adjustment call out)
Parameter Enter(Function call out)
CMOS input(12V or 15V)
12V
2
1
GND
COM
TTL input(5V)
12V
2
1
GND
COM
OFF:CMOS
Diameter(LINE-SPEED)/scale(RPM) can be modified
(0.0001~9.9999)
One alarm function
Man-machine interface, easy to operate
0.8" highlight display
EEPROM Saving, data safekeeping about 10 years
Modified inside parameter, must have pass code
SCALE
Set-value down
Set-value up(Scale adjustment call out)
IN
Inside jumper
4
3
2
1
OFF OFF ON OFF
IN
Inside jumper
4
3
2
1
ON OFF ON OFF
RPM
M/min
Display unit
Y/min
Ft/min
Sensor input(PNP 12V)
IN
Inside jumper
12V
Sensor
4
3
OFF OFF ON OFF
COM
Sensor input(NPN 12V)
IN
Inside jumper
12V
Sensor
4
3
OFF OFF OFF ON
COM
MMX-L
2
1
2
1
Rev 1.0
