Pro-Form 1100 E User Manual page 9

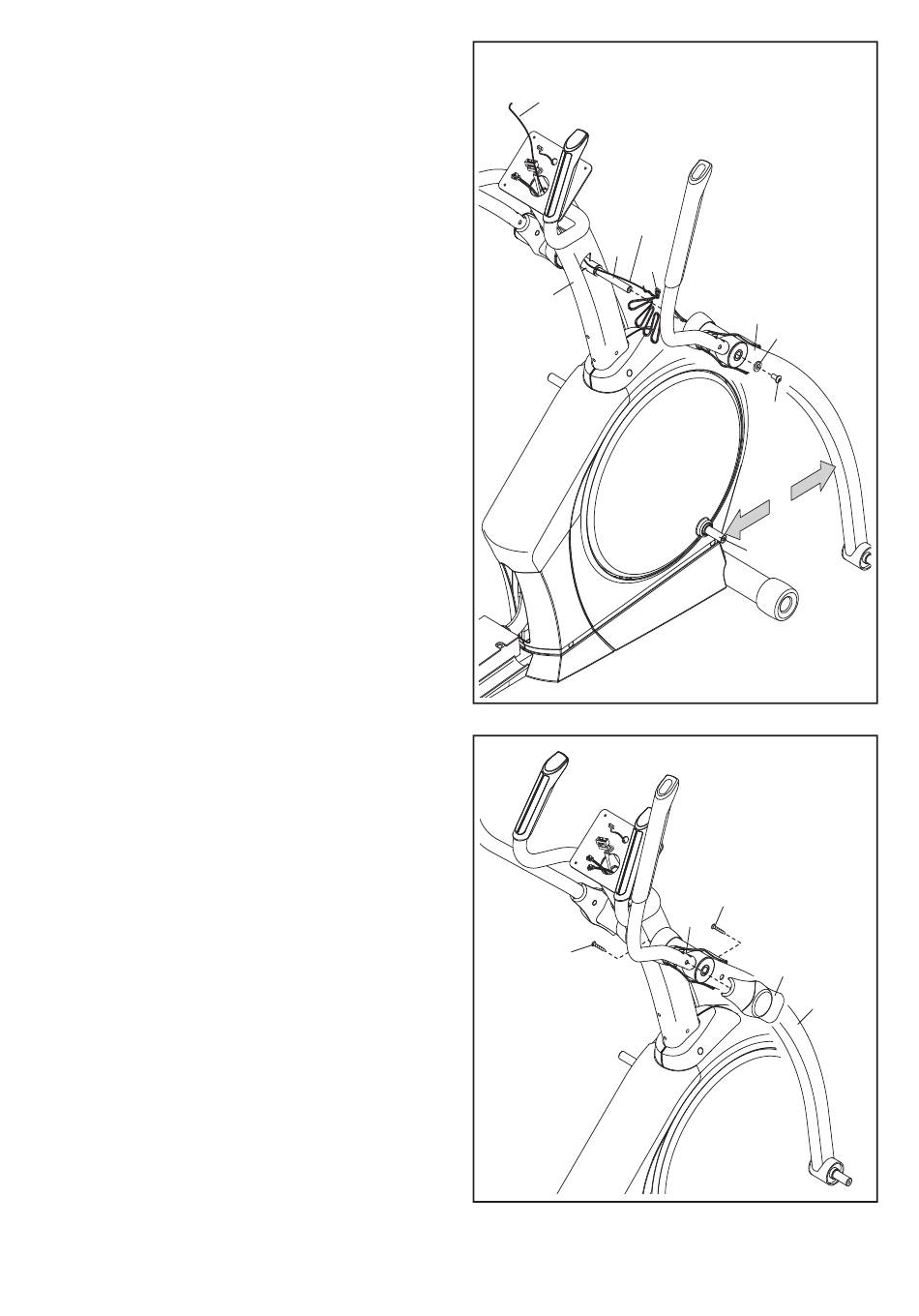

7. Have a second person hold the Right Upper
Body Leg (60) near the right side of the Upright
(4).
Locate the wire tie in the right side of the
Upright (4). Tie the wire tie to the Right Control
Wire (41) in the Right Upper Body Leg (60).
Tip: Do not pinch the Right Control Wire
(41). Pull the upper end of the wire tie until the
Right Control Wire is routed through the Upright
(4). At the same time, slide the Right Upper
Body Leg (60) onto the Pivot Axle (35); make
sure that the right Upper Body Leg is in
front of the right Crank Arm (20). Then, untie
and discard the wire tie.
Tip: To prevent the Right Control Wire (41)
from falling into the Upright (4), secure the
Right Control Wire with a rubber band or
tape.
Attach the Right Upper Body Leg (60) with an
M8 x 19mm Patch Screw (82) and an M8 x
25mm Washer (98).
Repeat this step on the other side of the
elliptical.
8. Attach an Outer Cover (67) to the Inner Cover
(68) on the Right Upper Body Leg (60) with two
M4 x 16mm Screws (104).
Repeat this step on the other side of the
elliptical.
All manuals and user guides at all-guides.com
9
7
Wire Tie
Wire
Tie
35
41
4
8
104
Avoid pinching
the wires
60
98
82
20
104
68
67
60
