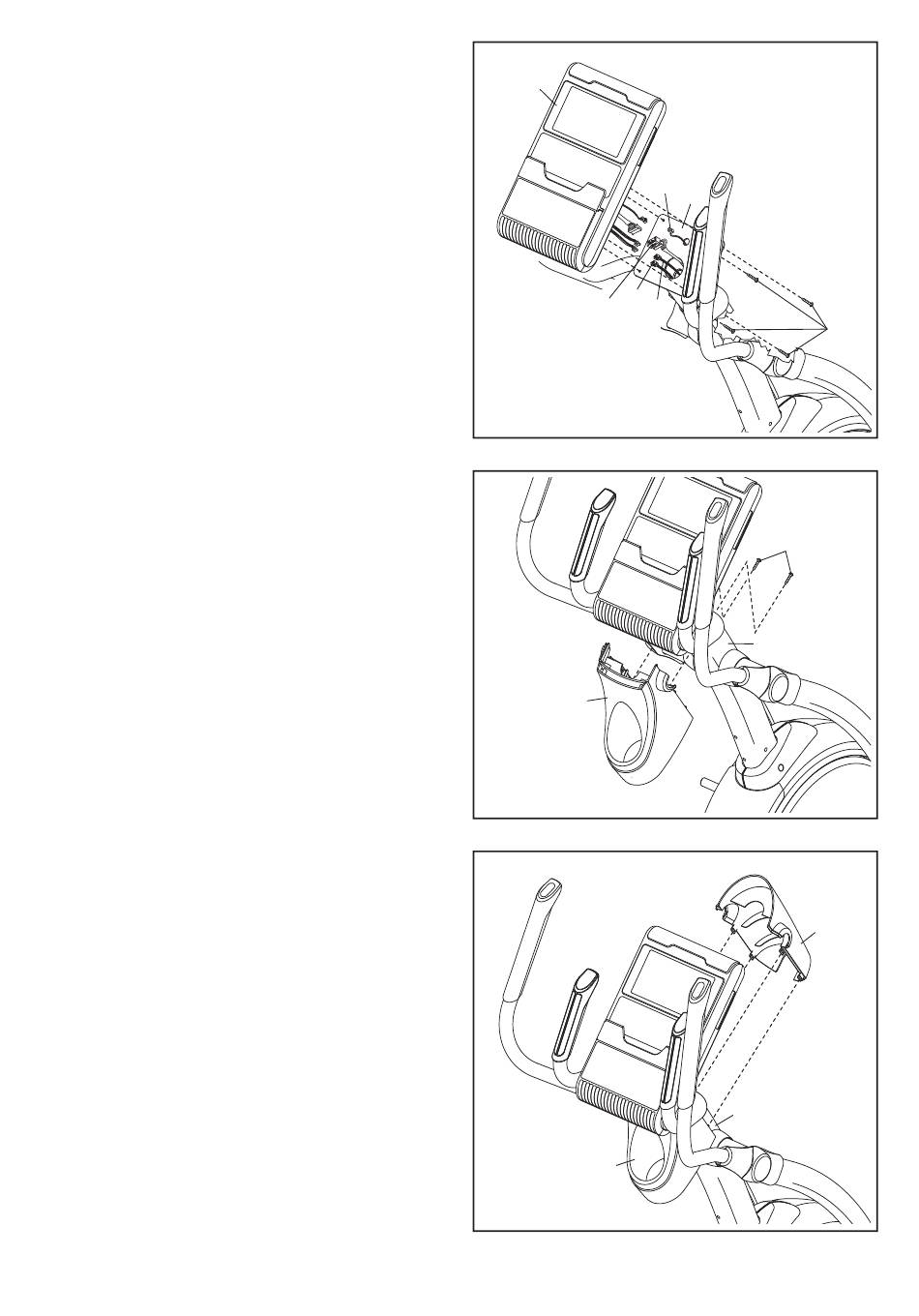

9. Have a second person hold the Console (7)
near the Upright (4).
Connect the wires on the Console (7) to the
Wire Harness (110), to the Pulse Wire (63), and
to the Right and Left Control Wires (41, 48).
Make sure to connect the console wire that
has a tag to the Control Wire that has a tag.
Insert the excess Pulse Wire (63) upward into
the Console (7) while inserting the other wires
downward into the Upright (4).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (104).
10. Orient the Rear Upright Cover (80) as shown.
Attach the Rear Upright Cover (80) to the
Upright (4) with two M4 x 16mm Screws (104).
11. Orient the Front Upright Cover (91) as shown.
Attach the Front Upright Cover (91) around the
Upright (4) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (80).
