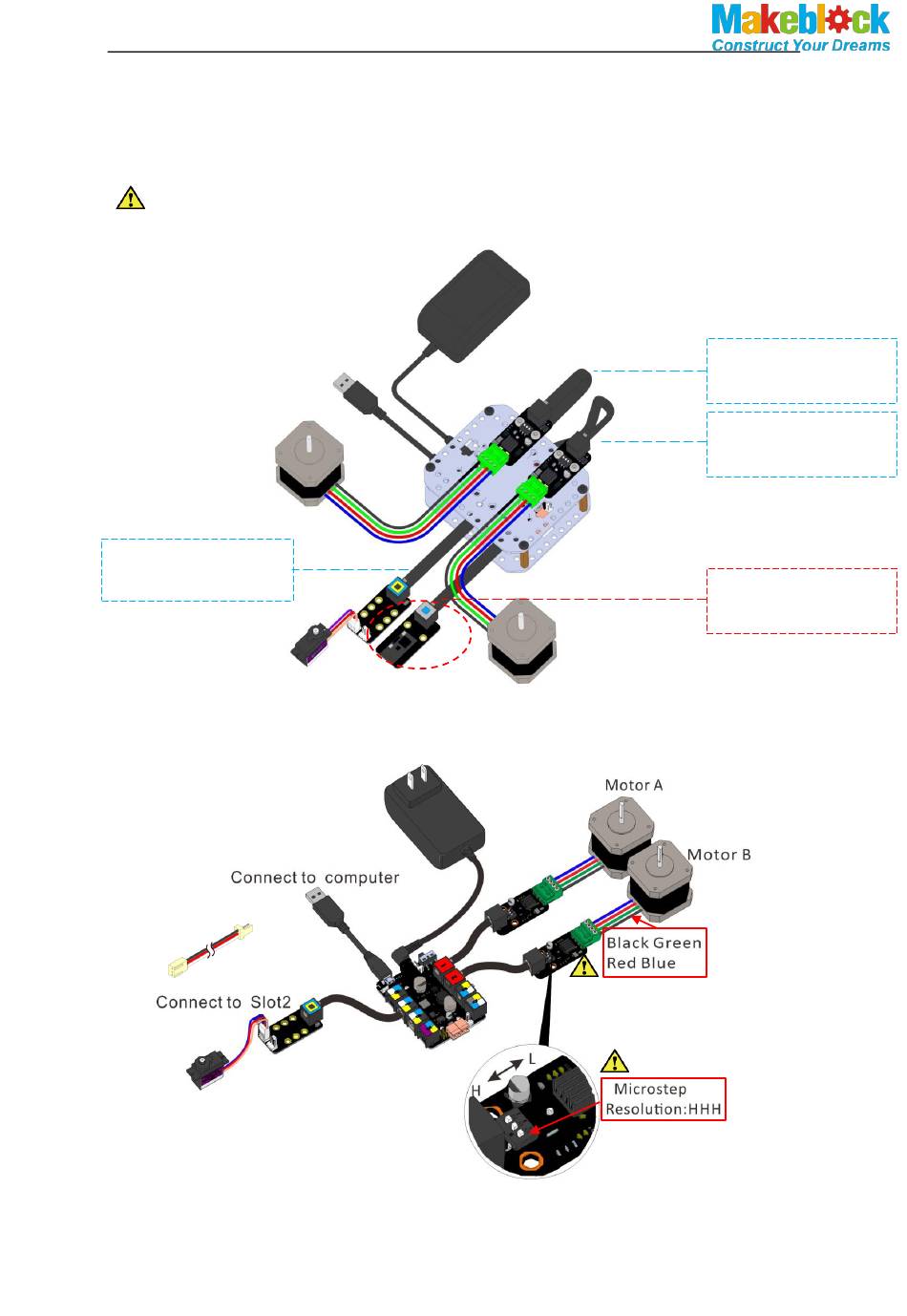

IV、 Recommended wiring diagram (Bluetooth
communication for Bluetooth version)
( Note: When Bluetooth is used as serial port, connect Bluetooth with port 5 OF Makeblock
Orion board.
Stepper motor A
6P6C RJ25 cable-35cm
Connect to Port 7
V、

Definition of mSpider electronic wiring

9g Servo
Extension Cord
mSpder User Guide
+
2/ 12
A
B
Stepper motor B
6P6C RJ25 cable-20cm
Connect to Port 1
6P6C RJ25 cable-20cm
Connect to Port 2
6P6C RJ25 cable-20cm
Connect to Port 5
