For more add-on packs please visit:
http://learn.makeblock.com/en/mbot-add-on-packs/
For more information, please scan the QR code
bellow with your smart device:

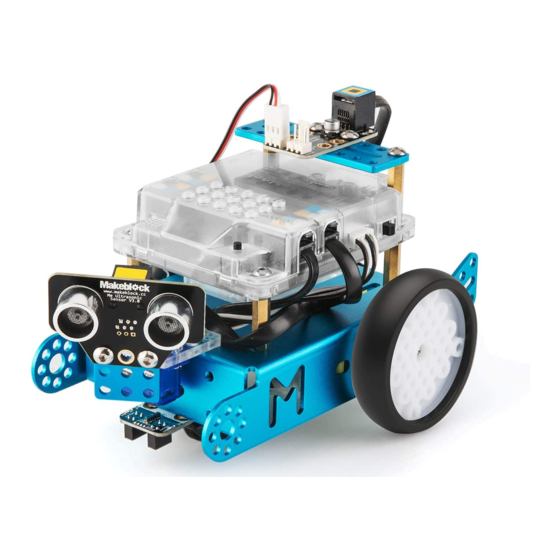

mBot Servo Pack
If you have any questions or concerns about our products,
please do not hesitate to contact us!
Makeblock Co., Ltd.
Technical support: www.makeblock.com/support
Tel: +86(0)755-26392228
Address: 4th Floor, Building C3, Nanshan iPark, No.1001 Xueyuan Avenue,
Nanshan District, Shenzhen, Guangdong Province, China 518055
+Makeblock
@Makeblock
@Makeblock
www.makeblock.com
D2.1.9_7.40.3637
Advertisement
Related Manuals for Makeblock mBot Servo Pack
Summary of Contents for Makeblock mBot Servo Pack
- Page 1 For more add-on packs please visit: http://learn.makeblock.com/en/mbot-add-on-packs/ For more information, please scan the QR code bellow with your smart device: mBot Servo Pack If you have any questions or concerns about our products, please do not hesitate to contact us! Makeblock Co., Ltd.
-
Page 2: Table Of Contents
Index mBot Add-on Pack Contents (1:1) ··········································· Construction Knowledge for the add-on pack························ Dancing Cat················································································ Head-Shaking Cat······································································ Light-Emitting Cat······································································... -
Page 3: Mbot Add-On Pack Contents (1:1)
You need to adjust the servo in order to make it rotate to a certain angle as precisely as you want. You can adjust it with mBlock, mBlockly and MakeBlock in three steps, as follow: M4 Nut 1.1 Wire connections Befor adjusting servo, you need to prepare mCore, RJ25 adapter M2.2×6.5mm Self-drilling Screw... - Page 4 90°. 3.Controlling and programming 1.3 Install servo arm You can use mBlock or Makeblock App to program your cat after the Intall servo arm to the servo as follows (pay attention to their angle). construction. Then the adjustment is completed.
-
Page 5: Dancing Cat
Dancing Cat mBot Servo Pack- Dancing Cat mBot Class mBot Add-On Pack If your mBot already has an mCore case, please keep it for later construction. Step 1 M4×25mm Brass Stud ×2 M4×8mm Screw ×2 Step 2 Plate I1-Blue ×1 Bracket 3×3... - Page 6 Step 3 Step 5 M4×8mm Screw ×2 Me Ultrasonic Sensor ×1 Me RJ25 Adapter Module ×1 M4×8mm Screw ×2 M4 Nut ×2 The ultrasonic sensor is included in mBot. Step 6 Firstly,you should adjust servo to 90 degrees with software, then Step 4 install servo arm to the servo (pay attention to their angle).
- Page 7 Step 7 Step 9 Wire connections This is the reference picture of wire connections in construction Cuttable Linkage-Blue ×1 examples. You can also change the ports according to your own M2.2×8mm Self-drilling Screw ×2 program. Plastic Spacer 4×7×2mm ×2 Me Ultrasonic Sensor Me RJ25 Adapter Module Please insert self-drilling screw through the hole...
-
Page 8: Head-Shaking Cat
Head-Shaking Cat mBot Servo Pack- Head-Shaking Cat mBot Class mBot Add-On Pack If your mBot already has an mCore case, please keep it for later construction. Step 1 M4×25mm Brass Stud ×2 M4×8mm Screw ×2 Step 2 M4×8mm Screw ×2 Me RGB LED ×1... - Page 9 Step 3 Step 5 Plate I1-Blue ×1 Bracket 3×3 ×1 Me RJ25 Adapter Module ×1 M2.2×8mm Self-drilling Screw ×2 M4×8mm Screw ×4 Plastic Spacer 4×7×2mm ×2 M4 Nut ×2 Step 4 Please insert self-drilling screw through the hole Firstly, you should adjust servo to 90 degrees with software, marked red.
-
Page 10: Servo
Step 7 Step 8 Wire connections This is the reference picture of wire connections in construction M4×8mm Screw ×2 examples. You can also change the ports according to your own program. Me RGB LED Module If these two holes on your mBot are without thread, please fix the parts with M4 nuts. -
Page 11: Light-Emitting Cat
Light-Emitting Cat mBot Servo Pack- Light-Emitting Cat mBot Class mBot Add-On Pack If your mBot already has an mCore case, please keep it for later construction. Step 1 M4×25mm Brass Stud ×2 M4×8mm Screw ×2 Step 2 Firstly,you should adjust servo to 90 degrees with software, then install servo arm to the servo (pay attention to their angle). -
Page 12: M4×8Mm
Step 3 Step 5 Bracket 3×3 ×1 M4×8mm Screw ×2 M2.2×8mm ×2 Please insert self-drilling Self-drilling Screw screw through the hole marked red. Plastic Spacer 4×7×2mm ×2 If these two holes on your mBot are without thread, please fix the parts with M4 nuts. - Page 13 Step 7 Step 8 Wire connections This is the reference picture of wire connections in construction M4×8mm Screw ×2 examples. You can also change the ports according to your own program. Me RGB LED Module Me RJ25 Adapter Module Me Ultrasonic Sensor 9g Micro Servo Me Line-follower Sensor Good job !
