c）. Single click the icon
setting is used. When you find that drawing direction is incorrect, modify the selection
direction of stepping motor, and click Ok to confirm.

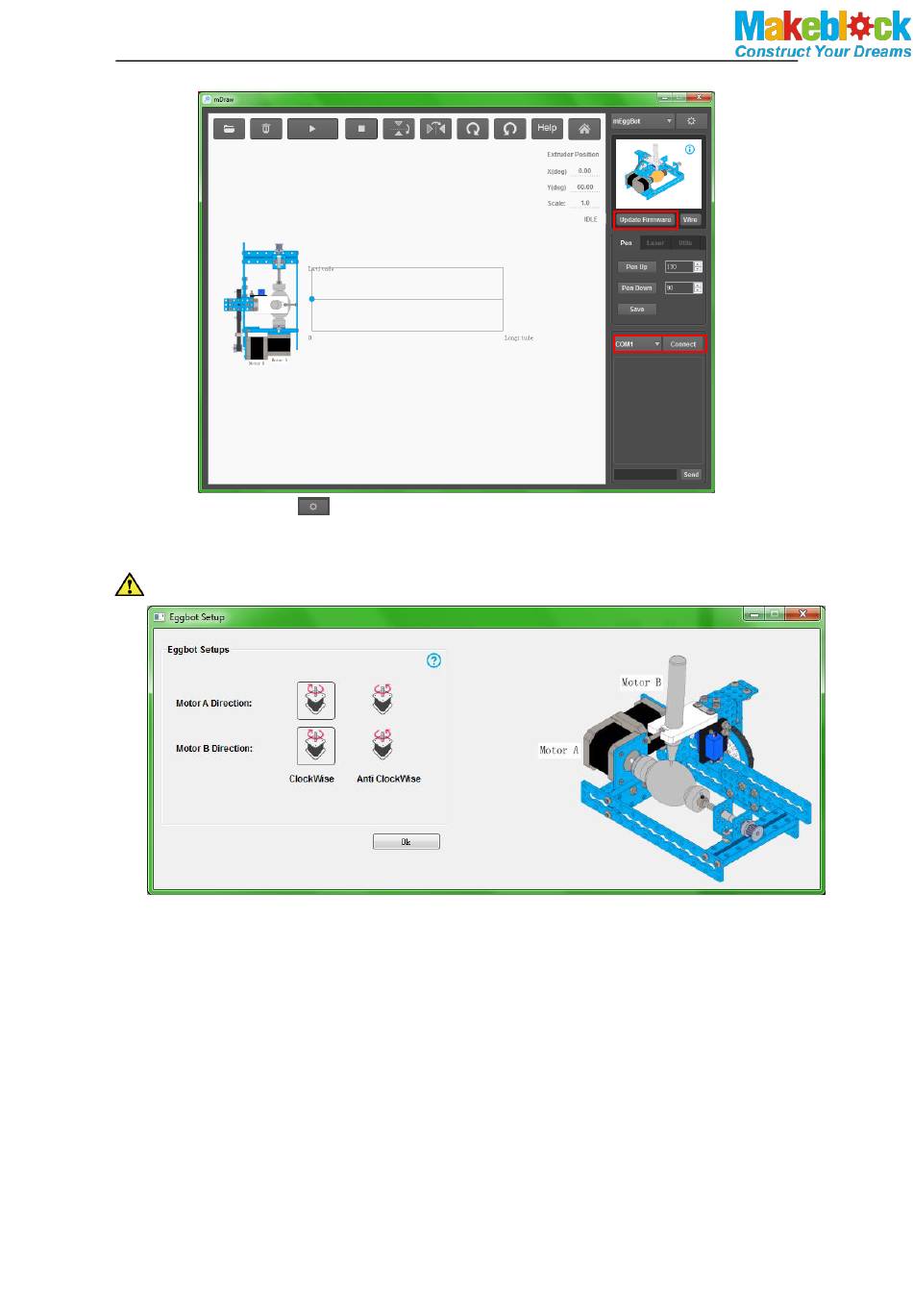

Meaning of axle view and software parameter
d）. Setting of steering engine pen lift and fall parameter
As shown in the figure, respectively enter the value by Pen up and Pen Down of the software,
click PenUp and PenDown. When the following effect is observe and obtained, it is possible to set
pen lift mechanism of the steering engine (note: If the rudder arm of the steering engine does
not have the following angle, remove the rudder arm by a cross screwdriver to adjust installation
angle, the rubber band is adjusted for degree of tightness according to requirement, and
pendown is subject to just contact with the
mEggBot User Guide
to access the setting interface Under general condition, default
paper.
