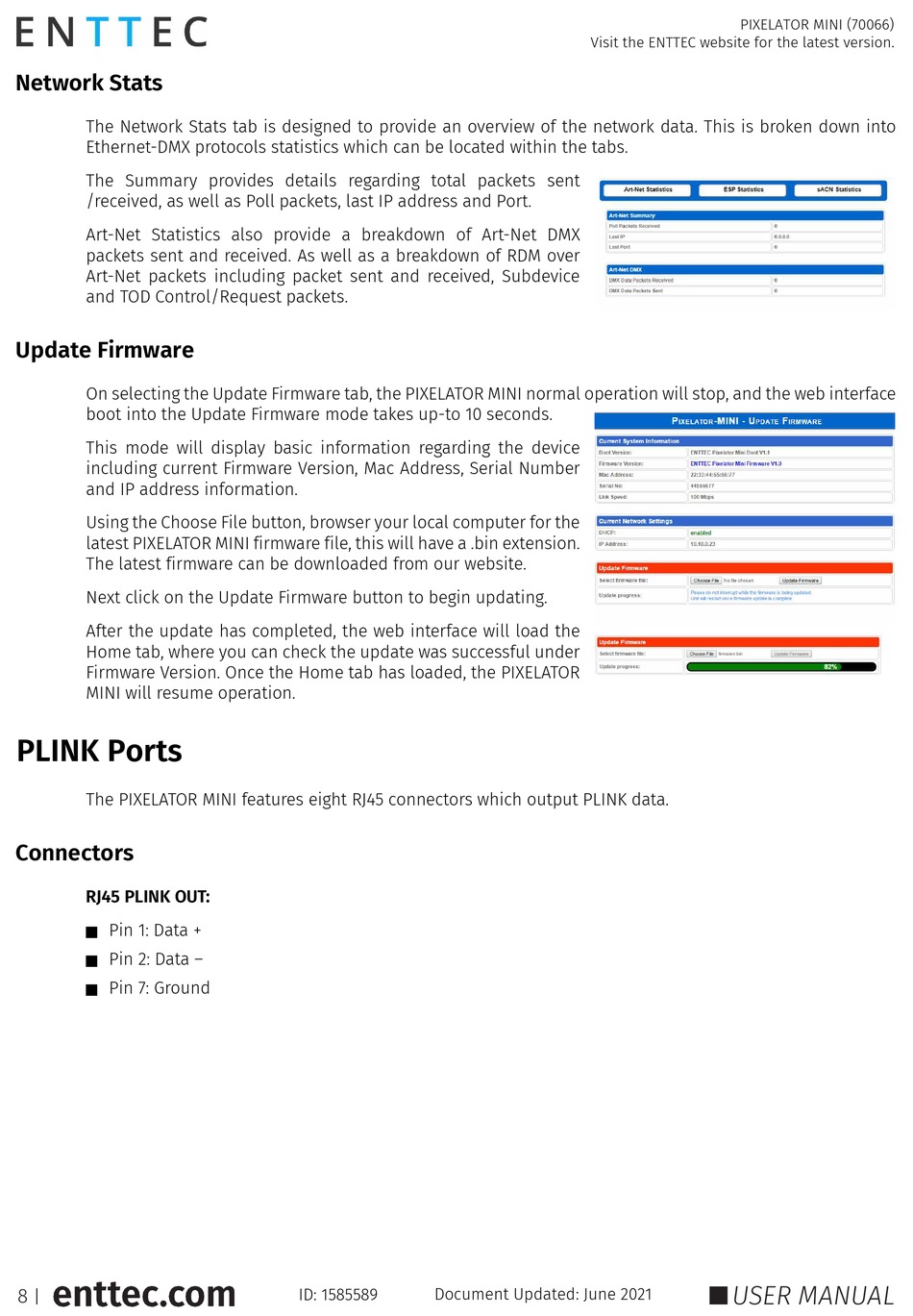

Network Stats

The Network Stats tab is designed to provide an overview of the network data. This is broken down into
Ethernet-DMX protocols statistics which can be located within the tabs.
The Summary provides details regarding total packets sent
/received, as well as Poll packets, last IP address and Port.
Art-Net Statistics also provide a breakdown of Art-Net DMX
packets sent and received. As well as a breakdown of RDM over
Art-Net packets including packet sent and received, Subdevice
and TOD Control/Request packets.

Update Firmware

On selecting the Update Firmware tab, the PIXELATOR MINI normal operation will stop, and the web interface
boot into the Update Firmware mode takes up-to 10 seconds.
This mode will display basic information regarding the device
including current Firmware Version, Mac Address, Serial Number
and IP address information.
Using the Choose File button, browser your local computer for the
latest PIXELATOR MINI firmware file, this will have a .bin extension.
The latest firmware can be downloaded from our website.
Next click on the Update Firmware button to begin updating.
After the update has completed, the web interface will load the
Home tab, where you can check the update was successful under
Firmware Version. Once the Home tab has loaded, the PIXELATOR
MINI will resume operation.

PLINK Ports

The PIXELATOR MINI features eight RJ45 connectors which output PLINK data.

Connectors

RJ45 PLINK OUT:
Pin 1: Data +

Pin 2: Data –

Pin 7: Ground

