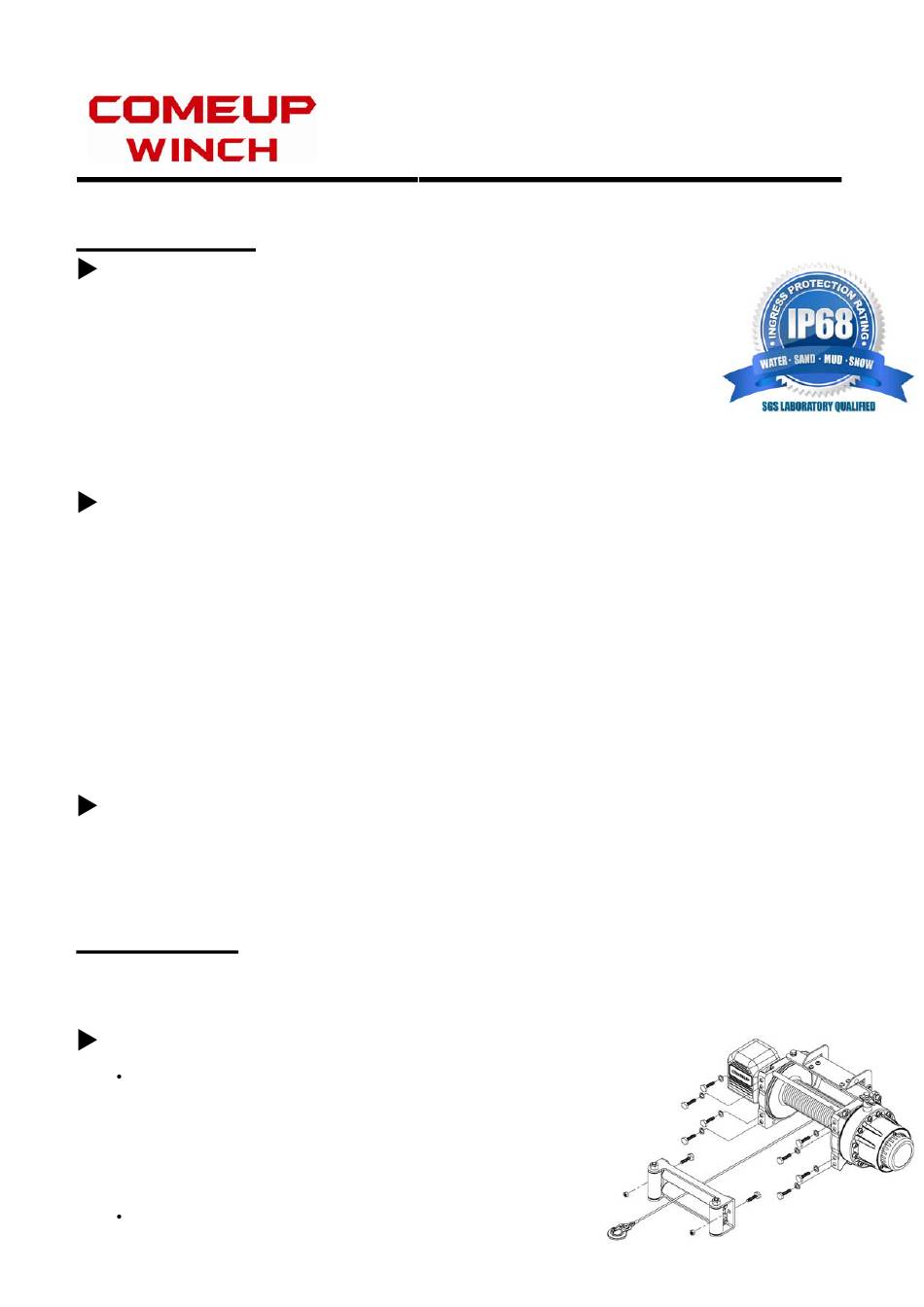

Introduction
Feature
Line pull:
9,072 kg / 20,000 lb wire rope first layer
Wire rope:
12.7 mm × 25 m (1/2"×82') 6 × 29 - IWRC
Brake:
Patented cone brake holds full load
Clutch:
Turn the T-handle for rapid wire rope payout
Control:
Handheld pendant switch powers the winch
Unpacking
．Winch assembly................................................................... 1 pc
．Potted contro box.. .................................................................... 1 pc
．Remote control.................................................................... 1 pc
．Wire rope with hook.............................................................. 1 pc
．Roller fairlead...................................................................... 1 pc
． Cable Tensioner..................................................................... 1 pc
．1.8 m (6') 2 gauge battery lead............................................... 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
Winch and roller fairlead mountings
It is very important that the winch will be
mounted on a flat and hard surface of
mounting channel in order to make sure the
motor, drum and gearbox housing are aligned
correctly.
Roller fairlead does not mount to the winch

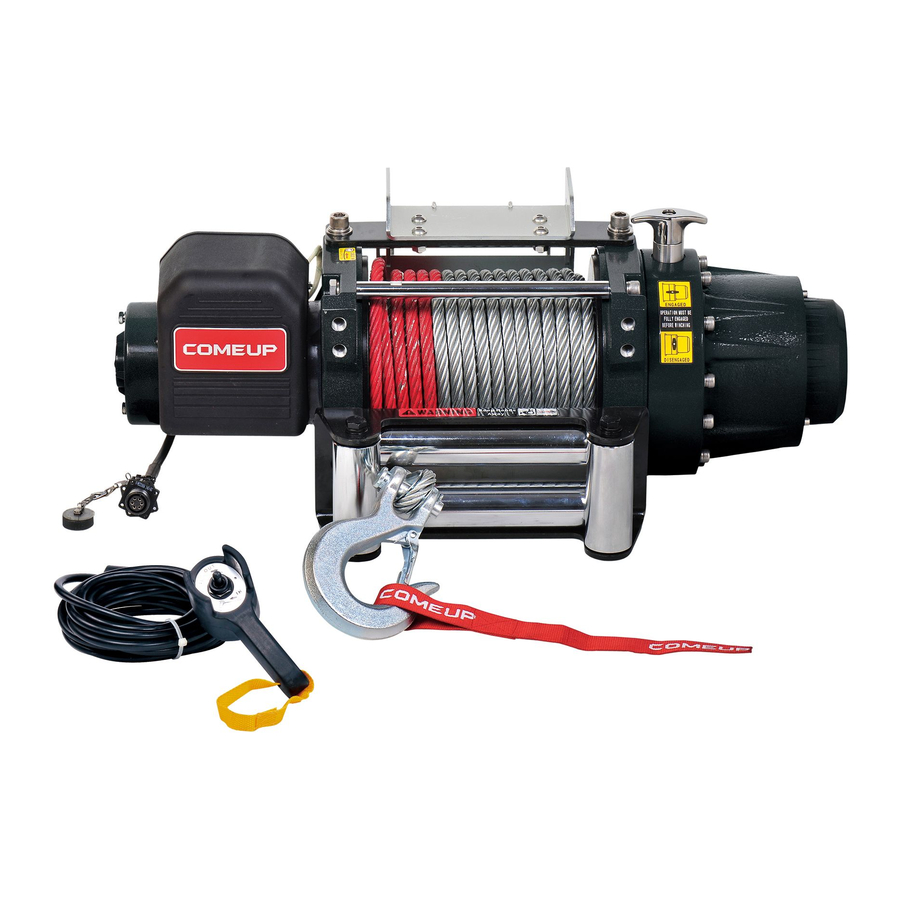

Self-Recovery Winch
Walrus 20.0
Model:
PN: 282020 282024 24V
Advertisement
Table of Contents
Related Manuals for Comeup Walrus 20.0
Summary of Contents for Comeup Walrus 20.0
- Page 1 Self-Recovery Winch Walrus 20.0 Model: PN: 282020 282024 24V Introduction Feature Line pull: 9,072 kg / 20,000 lb wire rope first layer Wire rope: 12.7 mm × 25 m (1/2"×82′) 6 × 29 - IWRC Brake: Patented cone brake holds full load...
- Page 2 directly. The wire rope shall be wound in an under-wound orientation only. Eight (8) M12 x 1.75 pitch 8.8 grade w/76 N-m torque setting (maximum) high tensile steel bolts must be used in order to sustain the loads imposed on the winch mounting. Two (2) M12 x 1.75 pitch 8.8 grade w/76 N-m torque setting (maximum) high tensile steel bolts must be used for fastening the roller fairlead into the mounting channel.
- Page 3 Warning ． The winch is not intended to be used in any manner for the movement or lifting of personnel. ．The rated line pull shown is based on the first layer of rope on the drum. ． The rope winding on the drum shall remain 5 wraps from the drum. Parts List Item No.
- Page 4 Winch Assembly...
