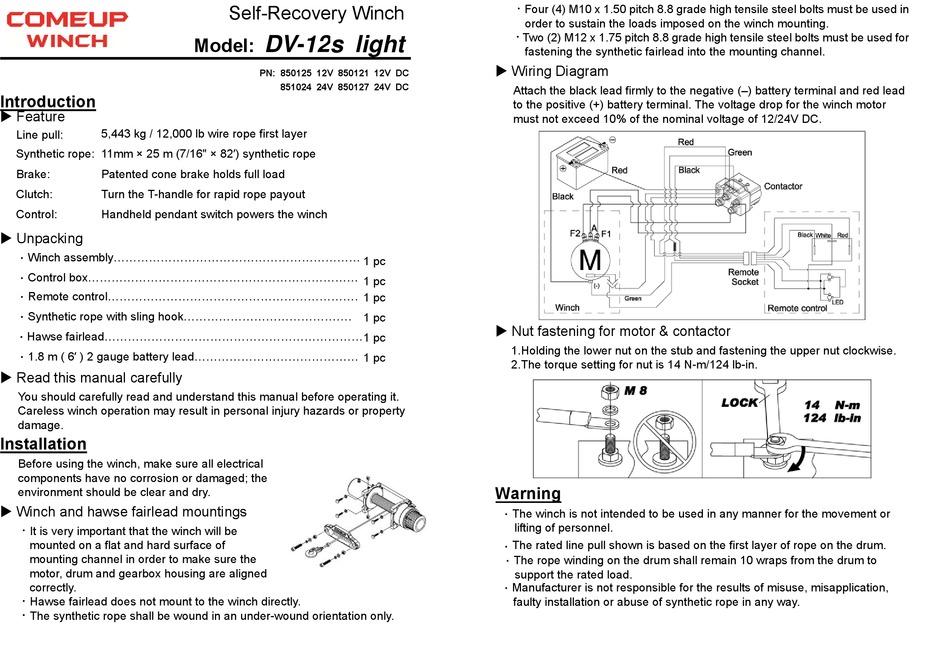

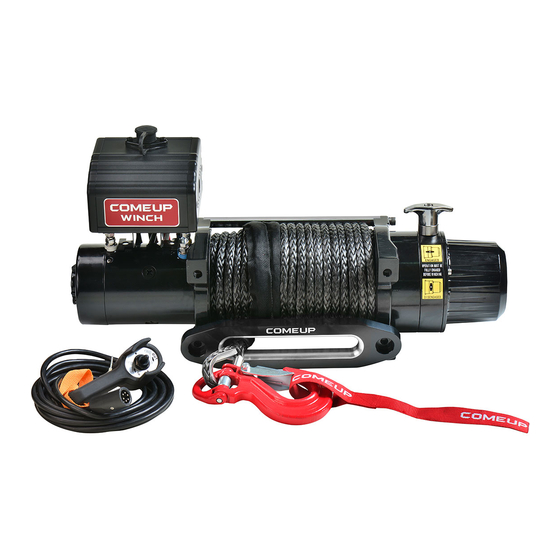

Comeup DV-12s light Manual

Introduction
 Feature
5,443 kg / 12,000 lb wire rope first layer
Line pull:
Synthetic rope: 11mm × 25 m (7/16" × 82') synthetic rope
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid rope payout
Control: Handheld pendant switch powers the winch
 Unpacking
．Winch assembly............................................................... 1 pc
．Control box..................................................................... 1 pc
．Remote control................................................................ 1 pc
．Synthetic rope with sling hook........................................... 1 pc
．Hawse fairlead.................................................................. 1 pc
．1.8 m ( 6' ) 2 gauge battery lead.......................................... 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Installation
Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.
 Winch and hawse fairlead mountings
． It is very important that the winch will be
mounted on a flat and hard surface of
mounting channel in order to make sure the
motor, drum and gearbox housing are aligned
correctly.
． Hawse fairlead does not mount to the winch directly.
． The synthetic rope shall be wound in an under-wound orientation only.
Self-Recovery Winch
Model: DV-12s light
PN: 850125 12V 850121 12V DC
851024 24V 850127 24V DC
． Four (4) M10 x 1.50 pitch 8.8 grade high tensile steel bolts must be used in
order to sustain the loads imposed on the winch mounting.
． Two (2) M12 x 1.75 pitch 8.8 grade high tensile steel bolts must be used for
fastening the synthetic fairlead into the mounting channel.
 Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12/24V DC.
 Nut fastening for motor & contactor
1.Holding the lower nut on the stub and fastening the upper nut clockwise.
2.The torque setting for nut is 14 N-m/124 lb-in.
Warning
．The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The rated line pull shown is based on the first layer of rope on the drum.
．The rope winding on the drum shall remain 10 wraps from the drum to
support the rated load.
．Manufacturer is not responsible for the results of misuse, misapplication,
faulty installation or abuse of synthetic rope in any way.
