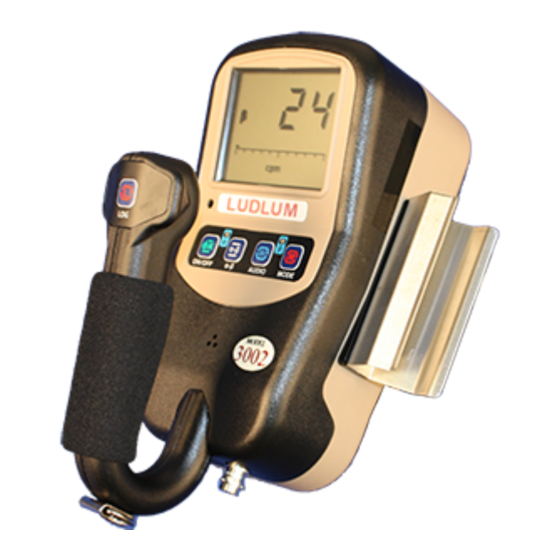

Model 3002 Digital Survey Meter
Ludlum Measurements
December 2021
Serial Number: 25017740 and Succeeding
Firmware: n20.1790 and Higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ludlum Measurements 3002

Summary of Contents for Ludlum Measurements 3002

  • Page 1 Model 3002 Digital Survey Meter Ludlum Measurements December 2021 Serial Number: 25017740 and Succeeding Firmware: n20.1790 and Higher...
  • Page 3 Model 3002 Digital Survey Meter Ludlum Measurements December 2021 Serial Number: 25017740 and Succeeding Firmware: n20.1790 and Higher...
  • Page 5 STATEMENT OF WARRANTY Ludlum Measurements, Inc. warrants the products covered in this manual to be free of de- fects due to workmanship, material, and design for a period of twelve months from the date of delivery. The calibration of a product is warranted to be within its specified accuracy lim- its at the time of shipment.

  • Page 11: Table Of Contents

    Setup Mode Operation ....... . . 30 Model 3002 List of Parameters (in order) ..... . . 31 Setup Page 1 .
  • Page 12 AuxCom Setting - Encryption ......67 A.4.6 AuxCom Setting - Auto Mode Interval ....68 Ludlum Measurements, Inc.

  • Page 13: List Of Figures

    IST OF IGURES Startup Display (All Segments Shown) ......12 Firmware Version Display ........12 Battery Voltage Display .

  • Page 15: List Of Tables

    IST OF ABLES COUNT Mode Units and Result ......22 Setup Parameters ........29 Response Time Based on Count Rate .

  • Page 17: Introduction

    Setup of the instrument is accomplished through the front-panel buttons, or through Lumic 2 software available from Ludlum Measurements. Front-panel setup can be disabled via the internal switch on the Model 3002 in order to pro- tect settings from inadvertent changes. When the settings are protected, the user can view the settings or modify a limited number of settings as defined with the Lumic software.
  • Page 18 The unit can log up to 1000 alpha and beta measurements simultaneously, and it adds a date/time stamp to each measurement. There are several options for the Model 3002 , including a headphone jack (for listening to clicks in noisy environments), a storage or shipping case to securely transport or store your instrument, and an optional set of rings to fasten a shoulder strap to the instrument for easier carrying.

  • Page 19: Getting Started

    Check individual item serial numbers and ensure calibration certificates match between instruments and de- tectors (if applicable). The Model 3002 serial number is located on a label on the front side of the unit.

  • Page 20: Instrument Operational Test

    Instead, use the following table to determine which main processor board is installed in the instrument: • 1 tick - 5498-901 • 2 ticks - 5519-063 • 3 ticks - 5519-270 Ludlum Measurements, Inc.

  • Page 21: Battery Voltage Display

    2.3. INSTRUMENT OPERATIONAL TEST • 4 ticks - 5519-797 The instrument then displays the battery voltage. Please see Figure below. Figure 2.3: Battery Voltage Display The instrument then displays the number of stored records if datalogging is enabled. Please refer to the figure below. Note: The instrument may display "- - -"...

  • Page 22: Detector Failure Diagnostics

    Rate Units 2.4 Detector Failure Diagnostics Note that the Model 3002 has its own diagnostic tests to ensure that the detector is function- ing correctly. 2.4.1 Detector Loss of Count If the detector stops detecting radiation for a settable number of seconds, the Model 3002 will flash the display and the LED for the specific radiation type to indicate a fault while...

  • Page 23: Detector Overload

    With four front-panel buttons and one handle button (as seen in front-panel drawing in front of manual), the Ludlum Model 3002 is simple and easy to use with minimal training required. Default operation is RATE mode, and the display shows the current count rate. Pressing the button will switch between alpha and beta and alpha+beta rate units.

  • Page 24: On/Off Button

    By default, the majority of functions are assigned to short presses of the buttons. 2.5.1 ON/OFF Button: Used to power the Model 3002 ON and OFF. • Power On: Press for approximately one second and release. • Power Off: Press and hold for approximately five seconds. The display will show a 3, 2, 1 countdown after the second beep.

  • Page 25: Alpha-Beta Button

    2.5. INSTRUMENT USE AND CONTROLS Extra-Long Press (press and release after two beeps): • Currently has no effect. 2.5.2 Alpha-Beta Button: In default operation, the display shows the current count/activity rate using the Primary radiation type. A short press of the button will switch between alpha, beta and alpha + beta units.

  • Page 26: Mode Button

    Button Mapping, please refer to Section 7.6. The default operation of the LOG button is as follows: Short Press (press and release before one beep): • In RATE mode, it will log the current rate reading if datalogging is enabled. Ludlum Measurements, Inc.

  • Page 27: Rate Mode Operation

    2.6. RATE MODE OPERATION • In MAX mode, it will log the current MAX value if datalogging is enabled. • In COUNT mode, it will: – If COUNT mode is ready: Initiate a count. Upon completion, the result will be logged if datalogging is enabled.

  • Page 28: Max Mode Operation

    If other operational modes are available, a short press of the MODE button will move to the next available operational mode. By default, a short press of the LOG button, if datalogging is enabled, will log the currently displayed MAX value. Figure 2.9: MAX Mode Display With ALARM Indication Ludlum Measurements, Inc.

  • Page 29: Count Mode Operation

    2.8. COUNT MODE OPERATION 2.8 COUNT Mode Operation When entering COUNT Mode from another operational mode, the currently selected COUNT radiation type will be displayed for approximately one second. The purpose of COUNT mode is to count for a predetermined amount of time, and to display the results on the display. Pre- defined count times of 6 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, and 10 min- utes are available as well as a user-defined count time and continuous counting operation (count time displayed as 0 or the minimum display).

  • Page 30: Count Mode Units And Result

    (If the count unit is an averaged rate, it is possible for the ALARM icon to come on during the count, but if the averaged rate falls below the alarm threshold by the end of the count, no ALARM will be active.) Ludlum Measurements, Inc.
  • Page 31 2.8. COUNT MODE OPERATION • If other operational modes are available, a short press of the MODE button will cancel the current Count Timer and move to the next available operational mode. • By default, the LOG button is unused during a count. When the Count Timer has Finished: •...

  • Page 33: Specifications

    PECIFICATIONS Detector: alpha beta scintillator or gas proportional HV Range: 400-2200 Vdc Beta Threshold Range: -2 to -99.9 mVdc, measured by Ludlum Model 500 Series Pulser. Beta Window Range: -2 to -350 mVdc, measured by Ludlum Model 500 Series Pulser. Alpha Threshold Range: -2 to -500 mVdc, measured by Ludlum Model 500 Series Pulser.
  • Page 34 Environmental Rating: NEMA (National Electrical Manufacturers Association) rating of 5 or IP (Ingress Protection) rating of 53 Size: 16.5 x 11.4 x 21.6 cm (6.5 x 4.5 x 8.5 in.) (H x W x L) Weight: 0.9 kg (1.6 lb) (excluding detectors and clips) Ludlum Measurements, Inc.

  • Page 35: Setup Mode

    4.1 Setup Overview Your instrument has been shipped from Ludlum Measurements only after passing electronic checkout, a 24-hour burn-in process, and a careful calibration process. Calibration papers are supplied with each instrument shipped from Ludlum Measurements.

  • Page 36: Setup Parameters

    P4-2 Millivolts Threshold P4-3 Unit 2 - Pulser Window 30.0 Millivolts Unit 2 - RATE/ MAX 5.00 P4-4 000 = disabled Mode Alarm kcpm Unit 2 - COUNT Mode P4-5 5.00 kc 000 = disabled Alarm Point Ludlum Measurements, Inc.

  • Page 37: Entering Setup Mode

    Table 4.1: Setup Parameters 4.3 Entering Setup Mode To enter Setup Mode, power down the Model 3002 then turn the unit back ON. When the instrument has begun normal operation, three short presses of the MODE button will place the instrument into Setup mode.

  • Page 38: Setup Mode Operation

    Lumic 2.0 Calibration Software. 4.4 Setup Mode Operation Once the Model 3002 is in Setup mode, setup page selection will be displayed on the LCD and the Page number will be blinking indicating it as the selected item. The number of available parameters per Setup Page will be displayed using the graph where the number of segments indicates the number of parameters.

  • Page 39: Model 3002 List Of Parameters (In Order)

    4.5. MODEL 3002 LIST OF PARAMETERS (IN ORDER) eters. If more than one parmeter can be changed on the page, short press the ON/OFF to advance through the available parameters then used the MODE to change the parameter. For example: Rate Mode Alarm Value to 150 cpm.
  • Page 40 • Beta Pulser Window • Beta RATE/MAX Model Alarm Point • Beta Count Mode Alarm Point • Beta Loss of Count Time Page 5 • Datalogging Mode • Real Time Clock Month • Real Time Clock Day Ludlum Measurements, Inc.

  • Page 41: Setup

    4.6. SETUP PAGE 1 • Real Time Clock Year • Real Time Clock Hour • Real Time Clock Minute • Real Time Clock Second Parameters on Page 5 are not user editable using the instrument Setup Mode. To edit these parameters, please use the Ludlum Lumic Calibration or Lumic Datalogging Software.

  • Page 42: Response Time Based On Count Rate

    CHAPTER 4. SETUP MODE Response Time to 0 will enable the Auto-Response mode for the Model 3002 (see the next parameter). Available values(in seconds) are: • Ones Place (0-9) • Tens Place (0-6, 6 forces max Response Time of 60) Auto-Response Rate (Default S) - A short press of MODE to to select Fast (F) or Slow (S).

  • Page 43: Setup

    4.7. SETUP PAGE 2 • Tens Place (0-6, 6 only available if minutes value is 9) • Hundreds Place (0-9) Auto Shutdown Time (Default 0 - off ) - A short press of MODE to adjust the value. Available values are: •...

  • Page 44: Units And Multipliers

    Available values are: • 0 – , , and + Channels • 1 – and Channels only • 2 – and + Channels only • 3 – and + Channels only • 4 – Channel only Ludlum Measurements, Inc.

  • Page 45: Setup

    Model 3002 display. But if the user desires to have the Model 3002 show results in terms of dpm/100 cm2, the user could manipulate the efficiency to produce this result by multiplying the efficiency times the ratio of the detector area to 100 cm2.
  • Page 46 Alpha Loss of Count Alarm Time (Default 600 seconds) - A short press of ON/OFF to select the value to adjust, and MODE to adjust the value. Setting the Loss of Count Alarm Time to 0 disables the alarm. Value is in seconds. Available values are: Ludlum Measurements, Inc.

  • Page 47: Setup

    Model 3002 display. But if the user desires to have the Model 3002 show results in terms of dpm/100 cm2, the user could manipulate the efficiency to produce this result by multiplying the efficiency times the ratio of the detector area to 100 cm2.
  • Page 48 Beta Loss of Count Alarm Time (Default 60 seconds) - A short press of ON/OFF to select the value to adjust, and MODE to adjust the value. Setting the Loss of Count Alarm Time to 0 disables the alarm. Value is in seconds. Available values are: Ludlum Measurements, Inc.

  • Page 49: Setup

    4.10. SETUP PAGE 5 • Ones Place (0-9) • Tens Place (0-9) • Hundreds Place (0-9) 4.10 Setup Page 5 Datalogging Mode - Displays the current Datalogging Mode selection for the device. Valid values are 1 - 2. Month - Displays the month of the Real Time Clock. Valid values are 1 - 12. Day - Displays the day of the Real Time Clock.

  • Page 51: Datalogging

    The datalogging feature of the Model 3002 allows the user to log radiation readings with the use of a handle-mounted LOG button. Data can be logged in any of the Model 3002’s oper- ational modes (RATE, MAX, and COUNT). Up to 1000 data points can be taken and stored internally.

  • Page 52: Datalogging Operation - Mode 2

    Mode 1. • The LCD display will show a possible Location ID Table index for the user. The index will be auto-incremented from the previously used index. Figure 5.2: Displaying Datalog Location ID Table Index of 36 Ludlum Measurements, Inc.

  • Page 53: Data Log Operation

    5.3. DATA LOG OPERATION • The number will be blinking, indicating a changeable value. The user may then enter the preferred Location ID Table index by a short press of the MODE (to increment the value) as in Setup mode. •...
  • Page 54 • Mode (1 Byte) • Detector Number (1 Byte) • Status (1 Byte) • Reserved (2 Bytes) • Elapsed Count Time in seconds (4 Bytes) • Count Mode Time in seconds (4 Bytes) • Location ID (32 Bytes) Ludlum Measurements, Inc.

  • Page 55: Software

    OFTWARE 6.1 Connecting to Software The Model 3002 software is sent with a standard two-meter cable. (A five-meter cable can be provided if requested. However, any cable longer than two meters may have issues with some USB hubs and computers, typically laptops.) To connect an instrument to the computer, please connect one end of the USB cable to the instrument first, and then the other end to the computer.

  • Page 57: Advanced Features

    DVANCED EATURES 7.1 Software Calibration Tools Lumic Calibration software includes wizards that will assist in calibrating and plateauing detectors. After configuring the wizard for a specific detector, the wizard will automate much of the data collection and calculation required for calibration. 7.2 Instrument Calibration This instrument provides the ability to digitally enter a voltage for both high voltage and threshold.

  • Page 58: Battery Life

    • Change Units - Changes to the next available radiation type. This is similar to a short press of the button. • Toggle Click Audio - Changes the audio level. This is similar to a short press of the AUDIO button. Ludlum Measurements, Inc.

  • Page 59: Cps Offset

    7.7. CPS OFFSET • Change Modes - Changes to the next available mode of operation. This is similar to a short press of the MODE button. • Toggle Count Display (COUNT mode only) - In COUNT mode, if the count is active, this will switch between the count timer and the count display.

  • Page 61: Safety Considerations

    Not certified for use in an explosive atmosphere 8.2 Warning Markings and Symbols The Model 3002 Survey meter is marked with the following symbols: CAUTION (per ISO 3864, No. B.3.1): designates hazardous live voltage and risk of electric shock. During normal use, internal components are hazardous live.

  • Page 62: Cleaning And Maintenance Precautions

    Ludlum Mea- surements, Inc. 8.3 Cleaning and Maintenance Precautions The Model 3002 may be cleaned externally with a damp cloth, using only water as the wetting agent. Observe the following precautions when cleaning or performing maintenance on the instru- ment: •...

  • Page 63: Revision History

    EVISION ISTORY This section of the manual will be updated with each revision of the Model 3002 in order to document changes over time. Ludlum Measurements’ policy is to provide for free, the latest firmware release for an instrument for the life of that instrument.
  • Page 64 Added explanation of feature to identify the board installed in the in- strument. Clarified the audio alert which occurs when the data log buffer is full. Corrected the beep description associated with button presses. Added clarification of the delay related to searching log record size on power-up. Ludlum Measurements, Inc.

  • Page 65: Recycling

    To this end, Ludlum Measurements, Inc. strives to supply the consumer of its goods with information regarding reuse and recycling of the many different types of materials used in its products.

  • Page 67: Options

    It allows administrators to adjust device datalogging parameters. Headphone Jack (part # 4498-555): This provides the Model 3000 series of instruments with a jack and circuitry required for a standard headphone plug. Ludlum Measurements also offers mono/stereo headphones with volume control.
  • Page 68 RS-232 Serial Port (part # 4519-490): This option adds a true RS-232 serial port connector. TTL Serial Port: (part # 4519-155): This option adds a TTL 3.3 V serial port connector. Available modes are instrument independent. Contact LMI for more information on config- uration options. Ludlum Measurements, Inc.

  • Page 69: Standard Parts List

    Part Number Model 3002 Digital Survey Meter 48-4037 Model 3002 Main Board 5519-270 Model 3002 Bezel Assembly 4498-881 Model 3002 Main Keypad Membrane Switch 7498-877 HV Shield 7498-996 Model 3000 Battery Holder Modified 7498-458 Model 3000 Unimorph with Harness 8498-542-01 LCD 82 mm x 61.64 mm...

  • Page 71: A Auxiliary Communications

    UXILIARY OMMUNICATIONS A.1 AuxCom Overview AuxCom, short for Auxiliary Communications, is a feature included on certain Ludlum in- struments. An AuxCom port allows the instrument to expand its capabilities with a variety of external devices through a standard serial interface. A.2 Requirements In order to take advantage of the AuxCom functionality, you will need the following: •...

  • Page 72: Auxcom Usage - Pairing

    4. Use 2-second Enable hot key to turn on WiFi. 5. Select “Scan” in App/Software. 6. When instrument is found by mobile device, select device in list and then “Pair.” 7. Enter PIN in App/Software from Step 2. Ludlum Measurements, Inc.
  • Page 73 A.3. USAGE Figure A.1: Example – Device Selection In Figure A.2: Example – Pairing Lumic Linker App (iOS) Figure A.3: Example – Model 3000 series Figure A.4: Example – Entering PIN In Lu- Found in Lumic Linker App (iOS) mic Linker App (iOS) December 2021...

  • Page 74: Settings

    A.4.2 AuxCom Setting - Off Time This setting defines the number of minutes the AuxCom port will sit idle before turning off. The primary use for this parameter is to save power while using Bluetooth® by turning off Ludlum Measurements, Inc.

  • Page 75: Auxcom Setting - Pwr Mode

    A.4. SETTINGS the Bluetooth® module if there is no connection. The table below shows valid settings. Setting Description Disabled Inactivity minutes before auto off Table A.2: AuxCom Auto Off Time A.4.3 AuxCom Setting - Pwr Mode This setting determines whether or not the AuxCom module is turned on when the instru- ment is powered on.

  • Page 76: Auxcom Setting - Auto Mode Interval

    The table below shows valid settings. This setting only applies to Raw Counts mode as of this writing. Setting Description As fast as possible (1/4 second on Model 3000 series) 1-255 n-Seconds Table A.6: AuxCom Auto Mode Interval Ludlum Measurements, Inc.
