Ludlum Measurements 3002 Quick Start Manual

Features

• Large Backlit LCD for Ease of Reading
• Autoranging, Dual Tone Audio Clicks
• All-Digital Calibration
• Rate, Max, and Count Modes of Operation
• Alpha, Beta, or Alpha + Beta Measurements
• 4-Button Intuitive Interface for Easy Operation
• Splash-Resistant Construction for Outdoor Use

Introduction

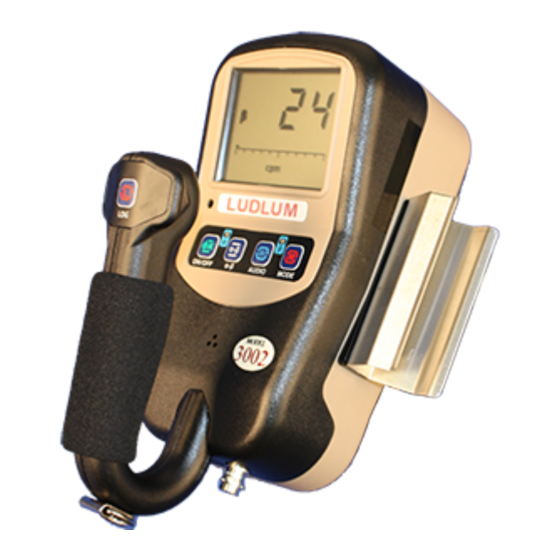

The Model 3002 is a durable, lightweight instrument designed for alpha and beta radiation survey with an
external detector. It features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple
five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the
instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the
MODE button. Measurements can be collected in cps, cpm, Bq, or dpm units. Pressing the α-β button switches
between alpha, beta, or alpha + beta measurements. When enabled with the optional Lumic Data Logger Kit
(PN: 4498-1019), data can be logged in any of the operational modes using the LOG button on the handle. Up
to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls or via the Lumic Calibration Kit (PN: 4498-
1018). The Model 3002 is shipped ready to use with batteries and a calibration certificate.
Ludlum Measurements, Inc. P.O. Box 810, Sweetwater, Texas 79556
Web: http://www.ludlums.com Tel: 800-622-0828 / 325-235-5494 / Fax: 325-235-4672 / Email: sales@ludlums.com
Note: specifications subject to change without notification. We are not responsible for errors or omissions.
Model 3002
Alpha-Beta Survey Meter
Oct 2021
