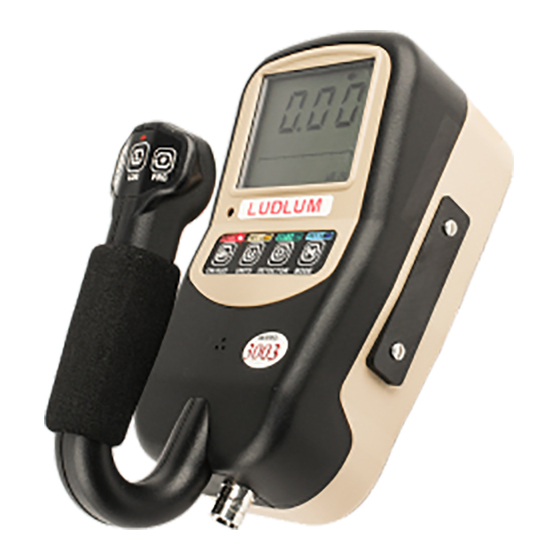

Model 3003 Multi-Detector Survey Meter/SCA
Ludlum Measurements
May 2021
Serial Number: 25020730 and Succeeding
Firmware: F.3.0.1059 and Higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3003 and is the answer not in the manual?

Questions and answers

Related Manuals for Ludlum Measurements 3003

Summary of Contents for Ludlum Measurements 3003

  • Page 1 Model 3003 Multi-Detector Survey Meter/SCA Ludlum Measurements May 2021 Serial Number: 25020730 and Succeeding Firmware: F.3.0.1059 and Higher...
  • Page 3 Model 3003 Multi-Detector Survey Meter/SCA Ludlum Measurements May 2021 Serial Number: 25020730 and Succeeding Firmware: F.3.0.1059 and Higher...
  • Page 5 STATEMENT OF WARRANTY Ludlum Measurements, Inc. warrants the products covered in this manual to be free of de- fects due to workmanship, material, and design for a period of twelve months from the date of delivery. The calibration of a product is warranted to be within its specified accuracy lim- its at the time of shipment.

  • Page 7: Table Of Contents

    ONTENTS Contents List of Figures List of Tables 1 Introduction 2 Getting Started Unpacking and Repacking ....... 13 Battery Installation .
  • Page 8 CONTENTS Model 3003 List of Parameters (in order) ..... . . 43 Page 1 - Device ........46 Page 2 - Datalogging .
  • Page 9 CONTENTS A.4 Settings ......... . 96 A.4.1 AuxComm Setting - Mode .

  • Page 11: List Of Figures

    IST OF IGURES Startup Display (All Segments Shown) ......14 Hardware Revision Levels ........14 Firmware Version Display .

  • Page 13: List Of Tables

    IST OF ABLES COUNT Mode Units and Result ......29 Features That Affect Units in All Modes ......82 A.1 AuxComm Mode .

  • Page 15: Introduction

    The DETECTOR button is used to select the active detector. The Model 3003i version has all the features of the Model 3003 plus the addition of an internal detector for tracking user exposure rate or dose, but both instruments will hereafter be referred to as “Model 3003”.
  • Page 16 It is located to the left of the detector connector. If a headphone jack is not in use, the Model 3003 may optionally be provided with a RS232 serial output for connection to PC or other electronic device.

  • Page 17: Getting Started

    Check individual item serial numbers and ensure calibration certificates match between instruments and de- tectors (if applicable). The Model 3003 serial number is located on a label on the front side of the unit.

  • Page 18: Turning The Instrument On

    The instrument then displays the current revision level of each board installed in the system: main board, internal detector high-voltage board, and auxiliary communications board. Figure 2.2: Hardware Revision Levels A revision level of 0 indicates that the board is not installed or detected. Next, the instrument displays the firmware version. Ludlum Measurements, Inc.

  • Page 19: Firmware Version Display

    2.3. TURNING THE INSTRUMENT ON Figure 2.3: Firmware Version Display The first character defines the firmware type, the second character defines the major version level, and the third character defines the revision level. The build version is not displayed. The instrument then displays the battery voltage. The low-battery indicator is only displayed to indicate that the value displayed is related to the battery voltage and not that the battery voltage is low.

  • Page 20: Instrument Diagnostics

    To acknowledge this condition, a short press of the ACK/RST button will silence the alarm, clear the screen, and resume normal instrument operation. A ’FAULT’ message will remain on the screen as a reminder until the instrument power is cycled. Ludlum Measurements, Inc.

  • Page 21: Definitions

    2.4. INSTRUMENT DIAGNOSTICS Time and date are necessary when the instrument is configured for data logging as each log record is time/date stamped. Additionally, time and date are crucial when the instrument is configured to report that a new calibration is due. 2.4.2 Definitions If the instrument displays the definitions reset message, this indicates that the memory which maintains the detector definitions has been reset.

  • Page 22: Instrument Operational Test

    If desired, multiple readings may be taken at different distances and/or with different sources so that other scales are checked. Example of a Check Source reading: Check Source # Rate Units Once this procedure has been completed, the instrument is ready for use. Ludlum Measurements, Inc.

  • Page 23: Sigma Audio

    2.7 Detector Failure Diagnostic Note that the Model 3003 has its own diagnostic tests to ensure that the detector is function- ing correctly. The Model 3003 can detect when the radiation detector is malfunctioning and will flash the display to indicate a fault.

  • Page 24: Detector Over Max

    Figure 2.11: Detector Over Range (Display Will Flash) 2.7.4 Detector Overload As another diagnostic test, the Model 3003 monitors the HV supply’s detector current. A current overload threshold can be set via Setup Mode. (A setting of 0 disables this alarm.) In general, this alarm setting can be used to detect when there is some detector failure, a cable failure, or a possible high level of radiation.

  • Page 25: Instrument Use And Controls

    By default, the majority of functions are assigned to short presses of the buttons. 2.8.1 ON/AUD Button: Used to power the Model 3003 ON and OFF and adjust the audio level (mute, low, medium, or high). • Power On: Press for approximately one second and release (all LCD segments will ac- tivate and firmware version will be shown).

  • Page 26: Units Button

    Long Press (press and release after two beeps): • Currently has no effect. Extra-Long Press (press and release after three beeps): • Enables/disables the Auxiliary Communications as indicated by a wifi symbol on the top of the LCD screen. Ludlum Measurements, Inc.

  • Page 27: Detector Button

    2.8. INSTRUMENT USE AND CONTROLS Figure 2.13: WiFi Symbol 2.8.3 DETECTOR Button: The Detector button’s primary function is to switch between available enabled detectors. Short Press (press and release after one beep): • Used to select the active detector, as evidenced by the corresponding DET1, DET2, DET3, or DET4 LED.

  • Page 28: Ack/Rst Button

    Short Press (press and release after one beep): • In RATE mode, it will log the current rate reading if datalogging is enabled. • In MAX mode, it will log the current MAX value if datalogging is enabled. Ludlum Measurements, Inc.

  • Page 29: Prg Button

    2.8. INSTRUMENT USE AND CONTROLS • In COUNT mode, it will: – If COUNT mode is ready: Initiate a count. Upon completion, the result will be logged if datalogging is enabled. – If COUNT mode is in progress: Button has no effect. –...

  • Page 30: Rate Mode Operation

    A short press of the UNITS button will switch the displayed value between the Primary and Secondary Units (Tertiary Units if the detector is configured for alpha/beta). A short press of the ON/AUD button will cycle through the “click” audio volume levels. When Ludlum Measurements, Inc.

  • Page 31: Count Mode Operation

    2.11. COUNT MODE OPERATION Sigma Audio is enabled, a short press of the ON/AUD will toggle the Sigma Audio volume levels. If multi-level audio is disabled, a short press of the ON/AUD button will toggle audio between Off and On. Under a non-alarm or alarm condition, an extra-long press of the ACK/RST button will reset the display.
  • Page 32 Other choices are to have count mode units of R/h or Sv/h, in which case the COUNT mode result is an averaged exposure or dose rate. But if count mode units of R or Sv are chosen, the Ludlum Measurements, Inc.
  • Page 33 2.11. COUNT MODE OPERATION result is shown in accumulated exposure or accumulated dose over the chosen count time. The following tables lists the possibilities: Table 2.1: COUNT Mode Units and Result UNITS RESULT counts per count time disintegrations per count time cpm, cps count rate averaged over the count time dpm, Bq...

  • Page 34: Count Mode Displaying Count Timer Of 5 Minutes, 30 Seconds

    ACK/RST button is required. • If other operational modes are available, a short press of the MODE button will move to the next available operational mode. Figure 2.16: COUNT Mode Displaying COUNT Timer of 5 Minutes, 30 Seconds Ludlum Measurements, Inc.

  • Page 35: Dose Mode Operation

    2.12. DOSE MODE OPERATION Figure 2.17: COUNT Mode Displaying COUNT Timer of 100k Seconds 2.12 DOSE Mode Operation While in DOSE mode, the current accumulated dose will be shown. The icon INTG will be displayed when in DOSE mode. A short press of the UNITS button will switch the displayed value between the Primary and Secondary Units (Tertiary Units if the detector is configured for alpha/beta).

  • Page 36: Dose Mode Operation Display

    CHAPTER 2. GETTING STARTED Figure 2.18: DOSE Mode Operation Display Ludlum Measurements, Inc.
  • Page 37 PECIFICATIONS External Detector: may be Geiger-Mueller (GM), scintillator, proportional, or neutron; supports optional internal GM or scintillation detector Internal Detector (If installed): one energy-compensated GM tube Energy Response: within 25% of true value from 60 keV to 3 MeV Linearity: readings within 10% of true value LCD Display: three-digit LCD with bar graph, 13 units, five multipliers, two mode icons, three alarm levels, and four fault messages, as well as USB, wireless, audio, and low-battery icons...

  • Page 38: Specifications

    Environmental Rating: NEMA (National Electrical Manufacturers Association) rating of 3x or IP (Ingress Protection) rating of 53 Size: 16.5 x 11.4 x 21.6 cm (6.5 x 4.5 x 8.5 in.) (H x W x L) Weight: 0.9 kg (2.0 lb) (excluding detectors and clips) Ludlum Measurements, Inc.

  • Page 39: Setup Mode

    4.1 Setup Overview Your instrument has been shipped from Ludlum Measurements only after passing electronic checkout, a 24-hour burn-in process, and a careful calibration process. Calibration papers are supplied with each instrument shipped from Ludlum Measurements.

  • Page 40: Setup Parameters

    Calibration Constant Exponent Dead Time 36 e-6 10 e-6 5 e-6 5 e-6 80 e-6 Correction 1 Dead Time Correction 2 Mantissa Dead Time Correction 2 Exponent Detector Current Overload Threshold Detector Adjustable 0 (continuous) Scaler Count Ludlum Measurements, Inc.
  • Page 41 4.2. SETUP PARAMETERS Model Model Alpha Model Internal Setting Setup Parameter 133-6 44-2 or Beta 42-31H Detector Detector Active Area Channel 1 – 0.035 0.035 0.0035 0.004 0.035 Threshold (V) Channel 1 - Window 0 (max value) 0.03 0 (max value) Channel 1 - Efficiency Channel 1 - Loss of...
  • Page 42 0 (No unit) 0 (No unit) Display Unit 3 - RATE / MAX 10.0 0 (No unit) 0 (No unit) Maximum Display Mcpm Unit 3 - RATE / MAX 2.00 0 (No unit) 0 (No unit) Alarm 1 kcpm Ludlum Measurements, Inc.

  • Page 43: Entering Setup Mode

    4.3. ENTERING SETUP MODE Model Model Alpha Model Internal Setting Setup Parameter 133-6 44-2 or Beta 42-31H Detector Unit 3 - RATE / MAX 5.00 0 (No unit) 0 (No unit) Alarm 2 kcpm Unit 3 - RATE / MAX 8.00 0 (No unit) 0 (No unit)

  • Page 44: Backlight/Setup Protect Dipswitch

    SETUP PROTECT: The Model 3003 parameters can be protected from unauthorized changes via the internal switch located on the Model 3003 circuit board. To change the switch, open the battery compartment and remove the batteries from the Model 3003. Next, loosen the six pan-head screws that fasten the bottom cover.

  • Page 45: Setup Mode Operation

    Lumic 2.0 Calibration Software. 4.4 Setup Mode Operation Once the Model 3003 is in Setup mode, setup page selection will be displayed on the LCD. Short press the PRG or ACK/RST button to choose the Setup Page you are interested in. Once the desired Setup Page is shown, short press the LOG button to cycle down to the first pa-...

  • Page 46: Setup Page Selection Display (Showing Page 4-Cal)

    LOG button for 2 seconds to return to the page selection menu. Press the LOG button for 2 seconds to exit Setup. The list below shows the nine setup pages and the parameters in order, on each page. Ludlum Measurements, Inc.

  • Page 47: Model 3003 List Of Parameters (In Order)

    4.5. MODEL 3003 LIST OF PARAMETERS (IN ORDER) 4.5 Model 3003 List of Parameters (in order) Page 1 - dev • Multi-level Audio • Backlight Threshold • Auto Shutdown Time • Auxiliary COM • Real Time Clock Month • Real Time Clock Day •...
  • Page 48 • Channel 2 - Efficiency • Channel 2 - Loss of Count Alarm Time • Channel 2 - Icon Page 7 - U-1 • Unit 1 - RATE/MAX Units and Minimum Display • Unit 1 - RATE/MAX Maximum Display Ludlum Measurements, Inc.
  • Page 49 4.5. MODEL 3003 LIST OF PARAMETERS (IN ORDER) • Unit 1 - RATE/MAX Alarm 1 • Unit 1 - RATE/MAX Alarm 2 • Unit 1 - RATE/MAX Alarm 3 • Unit 1 - COUNT Units and Minimum Display • Unit 1 - COUNT Alarm 1 •...

  • Page 50: Device

    Finally, extra-long pressing the LOG button will complete the modification. Default settings are in bold. Multi-level Audio - Upon entry into Multi-level Audio, the parameter will be selected (flash- ing) indicating the state of the parameter. • on (audio selection: off/low/med/high) • off (audio selection: off/on) Ludlum Measurements, Inc.
  • Page 51 4.6. PAGE 1 - DEVICE Use the PRG and ACK/RST buttons to scroll through the available parameter options. Backlight Threshold - Upon entry into the Backlight Threshold, the parameter will be se- lected (flashing) indicating the state of the parameter. •...
  • Page 52 • 00 - 59 (seconds of the minute) Use the PRG and ACK/RST buttons to scroll through the parameter options. Please note that when exiting the parameter, even if no changes were made, the seconds parameter will automatically be reassigned the frozen value. Ludlum Measurements, Inc.

  • Page 53: Datalogging

    4.7. PAGE 2 - DATALOGGING 4.7 Page 2 - Datalogging To begin adjusting a device parameter, short press the PRG and ACK/RST to scroll through the available device parameters. To begin, short press LOG to begin modifying the parameter chosen. Finally, extra-long pressing the LOG button will complete the modification. Default settings are in bold.

  • Page 54: Configuration

    If no modes were enabled rate mode will automatically be enabled for external detectors, and dose mode will be enabled for internal detectors. Ludlum Measurements, Inc.
  • Page 55 4.8. PAGE 3 - CONFIGURATION Bar Graph Mode - Upon entry into Bar Graph Mode, the parameter will be selected (flashing) indicating the state of the parameter. • off (no bar graphing) • Std (standard bar graphing mode - decade) •...

  • Page 56: Calibration

    High Voltage - Upon entry into High Voltage, one of the following parameters will be selected (flashing). • Ones Place (0-9) • Tens Place (0-9) • Hundreds Place (0-9) • /k Multiplier with all digits flashing (on/off) Ludlum Measurements, Inc.
  • Page 57 4.9. PAGE 4 - CALIBRATION Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options. The k multiplier also activates left-most decimal point. If k multiplier is used, Hundreds Place becomes the Thousands Place, Tens Place becomes the Hun- dreds Place, and Ones Place becomes the Tens Place.
  • Page 58 Detector Adjustable Scaler Count Time - Upon entry into Detector Adjustable Scaler Count Time, one of the following parameters will be selected (flashing). • Rightmost Digit (0-9) • Middle Digit (0-9) • Leftmost digit (0-9) • <>/k/M Multiplier with all digits flashing (adjustable from xxx to xxx M) Ludlum Measurements, Inc.

  • Page 59: Channel 1

    4.10. PAGE 5 - CHANNEL 1 Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options. Detector Active Area - Upon entry into Detector Active Area, one of the following parameters will be selected (flashing).
  • Page 60 Channel 1 - Icon - Upon entry into Channel 1 Icon, one of the following parameters will be selected (flashing). • – Alpha icon • – Beta icon • – Gamma icon • n - Neutron icon • • Ludlum Measurements, Inc.

  • Page 61: Channel 2

    4.11. PAGE 6 - CHANNEL 2 • • , , & • • • , , & n • • , , & n • , , & n • , , , & n • 0FF – No icon Use the PRG and ACK/RST buttons to scroll through the available parameter options.
  • Page 62 Channel 2 - Icon - Upon entry into Channel 2 Icon, one of the following parameters will be selected (flashing). • – Alpha icon • – Beta icon • – Gamma icon • n - Neutron icon • Ludlum Measurements, Inc.

  • Page 63: Unit 1

    4.12. PAGE 7 - UNIT 1 • • • , , & • • • , , & n • • , , & n • , , & n • , , , & n • 0FF – No icon Use the PRG and ACK/RST buttons to scroll through the available parameter options.
  • Page 64 Unit 1 - RATE/MAX Alarm 3 - Upon entry into Unit 1 RATE/MAX Alarm 3, one of the following parameters will be selected (flashing). • Rightmost Digit (0-9) • Middle Digit (0-9) Ludlum Measurements, Inc.
  • Page 65 4.12. PAGE 7 - UNIT 1 • Leftmost Digit (0-9) • Multiplier with all digits flashing (adjustable from x.xx to xxx M depending on unit selected) Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options.
  • Page 66 Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options. Unit 1 - DOSE Alarm 2 - Upon entry into Unit 1 Dose Alarm 2, one of the following parame- ters will be selected (flashing). Ludlum Measurements, Inc.
  • Page 67 4.13. PAGE 8 - UNIT 2 • Rightmost Digit (0-9) • Middle Digit (0-9) • Leftmost Digit (0-9) • Multiplier with all digits flashing (adjustable from x.xx to xxx M depending on unit selected) Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options.

  • Page 68: Unit 2

    Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options. Unit 2 - RATE/MAX Alarm 2 - Upon entry into Unit 2 RATE/MAX Alarm 2, one of the following parameters will be selected (flashing). Ludlum Measurements, Inc.
  • Page 69 4.13. PAGE 8 - UNIT 2 • Rightmost Digit (0-9) • Middle Digit (0-9) • Leftmost Digit (0-9) • Multiplier with all digits flashing (adjustable from x.xx to xxx M depending on unit selected) Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options.
  • Page 70 Display, one of the following parameters will be selected (flashing). Note: Select Unit first before selecting multiplier. • Multiplier with all digits flashing (adjustable from x.xx to xxx M depending on unit selected) • Unit (off, d, c, Rem, R, Sv) Ludlum Measurements, Inc.
  • Page 71 4.13. PAGE 8 - UNIT 2 Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options. Unit 2 - DOSE Alarm 1 - Upon entry into Unit 2 Dose Alarm 1, one of the following parame- ters will be selected (flashing).

  • Page 72: Unit 3 (If Supported)

    Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options. Unit 3 - RATE/MAX Maximum Display - Upon entry into Unit 3 RATE/MAX Units Maximum Display, one of the following parameters will be selected (flashing). • Rightmost Digit (0-9) Ludlum Measurements, Inc.
  • Page 73 4.14. PAGE 9 - UNIT 3 (IF SUPPORTED) • Middle Digit (0-9) • Leftmost digit (0-9) • Multiplier with all digits flashing (adjustable from x.xx to x.xx k) Use the LOG button to select the appropriate parameter, and use the PRG and ACK/RST buttons to scroll through the parameter options.
  • Page 74 Unit 3 - COUNT Alarm 2 - Upon entry into Unit 3 Count Alarm 2, one of the following pa- rameters will be selected (flashing). • Rightmost Digit (0-9) • Middle Digit (0-9) • Leftmost digit (0-9) • Multiplier with all digits flashing (adjustable from x.xx to xxx M depending on unit selected) Ludlum Measurements, Inc.
  • Page 75 4.14. PAGE 9 - UNIT 3 (IF SUPPORTED) Use the LOG button to select the appropriate parameter and use the PRG and ACK/RST but- tons to scroll through the parameter options. Unit 3 - COUNT Alarm 3 - Upon entry into Unit 3 Count Alarm 3, one of the following pa- rameters will be selected (flashing).
  • Page 76 • — (Internal Detector Only) • 1 2 (Channel 1 + Channel 2) • 1-2 (Channel 1 - Channel 2) • 2-1 (Channel 2 - Channel 1) Use the PRG and ACK/RST buttons to scroll through the parameter options. Ludlum Measurements, Inc.

  • Page 77: Reset (Warning!!!)

    4.15. PAGE 10 - RESET (WARNING!!!) 4.15 Page 10 - Reset (WARNING!!!) In the event of an instrument issue that requires major modification to the stored instru- ment values, an instrument reset has been incorporated, which will wipe out all stored in- formation in the device with the exception of hardware calibration information from the fac- tory.

  • Page 79: Datalogging

    The datalogging feature of the Model 3003 allows the user to log radiation readings with the use of a handle-mounted LOG button. Data can be logged in any of the Model 3003’s oper- ational modes (RATE, MAX, and COUNT). Up to 1000 data points can be taken and stored internally.

  • Page 80: Datalogging Operation - Mode 2

    – For a continuous Scaler count (Scaler time is 0), the LOG button is enabled at all times. • The LCD display will show a possible Location ID Table index for the user. The index will be auto-incremented from the previously used index. Ludlum Measurements, Inc.

  • Page 81: Datalogging Operation - Mode 3

    5.3. DATALOGGING OPERATION – MODE 3 Figure 5.2: Displaying Datalog Location ID Table Index of 36 • The number will be blinking, indicating a changeable value. The user may then enter the preferred Location ID Table index by a short press of the PRG (to increment the value) or ACK/RST (to decrement the value) buttons as in Setup mode.

  • Page 82: Format

    • Mode (1 Byte) • Detector Number (1 Byte) • Status (1 Byte) • Reserved (2 Bytes) • Elapsed Count Time in seconds (4 Bytes) • Scaler Count Time in seconds (4 Bytes) • Location ID (32 Bytes) Ludlum Measurements, Inc.

  • Page 83: Software

    OFTWARE 6.1 Connecting to Software The Model 3003 software is sent with a standard two-meter cable. (A five-meter cable can be provided if requested. However, any cable longer than two meters may have issues with some USB hubs and computers, typically laptops.) To connect an instrument to the computer, please connect one end of the USB cable to the instrument first, and then the other end to the computer.

  • Page 85: Advanced Features

    DVANCED EATURES 7.1 Dead Time Correction All pulse counting detectors have a “dead time” in which the detector is unable to register another event. In relatively low fields this is not an issue. However, as the field strength approaches the high end of the detector’s range, dead time causes the pulse rate to become non-linear with respect to the real radiation field.

  • Page 86: R To Sv Conversion

    However, if calibration is required (due to board rework, etc.) the calibration settings are available in Lumic Calibra- tion software. 7.6 Other Device Data The following parameters on the instrument allow recording import device information within the device: Ludlum Measurements, Inc.

  • Page 87: Battery Life

    7.7. BATTERY LIFE Firmware Version: This is a read-only presentation of the firmware version. With a firmware version of F.x.y.zzzz, the F.x.y will show up on the device screen during the power-on sequence and signifies the released version. Device – Model Name: This should match the model name on the front face of the instrument.

  • Page 89: Safety Considerations

    Not certified for use in an explosive atmosphere 8.2 Warning Markings and Symbols The Model 3003 Survey meter is marked with the following symbols: CAUTION (per ISO 3864, No. B.3.1): designates hazardous live voltage and risk of electric shock. During normal use, internal components are hazardous live.

  • Page 90: Cleaning And Maintenance Precautions

    Ludlum Mea- surements, Inc. 8.3 Cleaning and Maintenance Precautions The Model 3003 may be cleaned externally with a damp cloth, using only water as the wetting agent. Observe the following precautions when cleaning or performing maintenance on the instru- ment: •...

  • Page 91: Revision History

    EVISION ISTORY This section of the manual will be updated with each revision of theModel 3003 in order to document changes over time. Ludlum Measurements’ policy is to provide free software upgrades to instruments for the life of the instrument.

  • Page 93: Recycling

    To this end, Ludlum Measurements, Inc. strives to supply the consumer of its goods with information regarding reuse and recycling of the many different types of materials used in its products.

  • Page 95: Options

    It allows administrators to adjust device datalogging parameters. Headphone Option (part # 4498-555): This provides the Model 3000 series of instruments with a jack and circuitry required for a standard headphone plug. Ludlum Measurements also offers mono/stereo headphones with volume control.

  • Page 97: A Auxiliary Communications

    UXILIARY OMMUNICATIONS A.1 AuxComm Overview AuxComm, short for Auxiliary Communications, is a feature included on certain Ludlum in- struments. An AuxComm port allows the instrument to expand its capabilities with a variety of external devices through a standard serial interface. A.2 Requirements In order to take advantage of the AuxComm functionality, you will need the following: •...

  • Page 98: Auxcomm Usage - Pairing

    4. Use 2-second Enable hot key to turn on WiFi. 5. Select “Scan” in App/Software. 6. When instrument is found by mobile device, select device in list and then “Pair.” 7. Enter PIN in App/Software from Step 2. Ludlum Measurements, Inc.
  • Page 99 A.3. USAGE Figure A.1: Example – Device Selection Figure A.2: Example – Pairing In Lumic Linker App (iOS) Figure A.3: Example – Model 3000 series Figure A.4: Example – Entering PIN In Found in Lumic Linker App (iOS) Lumic Linker App (iOS) May 2021...

  • Page 100: Settings

    Raw Count: Mode that automatically transmits raw, uncorrected counts. The count interval is based on the AuxComm Auto Mode Interval variable. The output value is the cumulative counts that occurred in the previous interval on all enabled channels. Ludlum Measurements, Inc.

  • Page 101: Auxcomm Setting - Off Time

    A.4. SETTINGS CPM: Mode that automatically transmits the CPM (counts per minute) for the external de- tector no matter what detector or mode is currently being displayed. The count interval is based on the AuxComm Auto Mode Interval variable. Display: Mode that automatically transmits the numeric value as well as units prefix, units, and units suffix for the currently displayed screen.

  • Page 102: Auxcomm Setting - Encryption

    The table below shows valid settings. This setting only applies to Raw Counts mode as of this writing. Table A.6: AuxComm Auto Mode Interval Setting Description As fast as possible (1/4 second on Model 3000 series) 1-255 n-Seconds Ludlum Measurements, Inc.
