September 2021
Eagle™ Operator Manual
5069300
Revision 21-01
Original Instructions

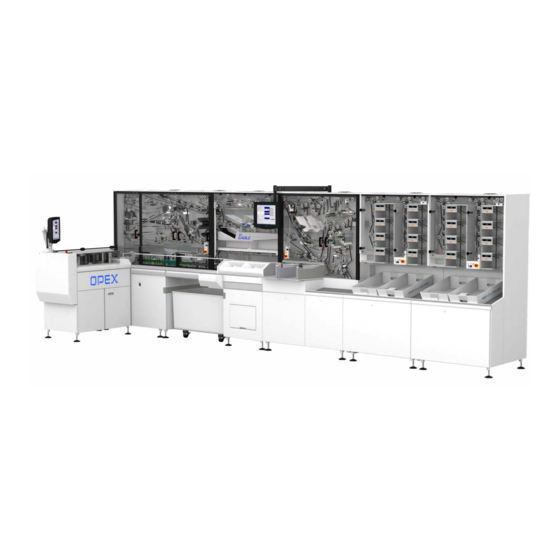

Eagle™ Remittance Processor
WARNING
Read this manual thoroughly before attempting to operate or service this
equipment. Keep a current copy for your reference.
®
© 2021 OPEX
Corporation
All rights reserved. This document is provided by OPEX for use by their customers, partners and dealers. No portion
of these materials may be reproduced, published, or stored in a database or retrieval system, other than for its
intended use without the express, written consent of OPEX Corporation.
