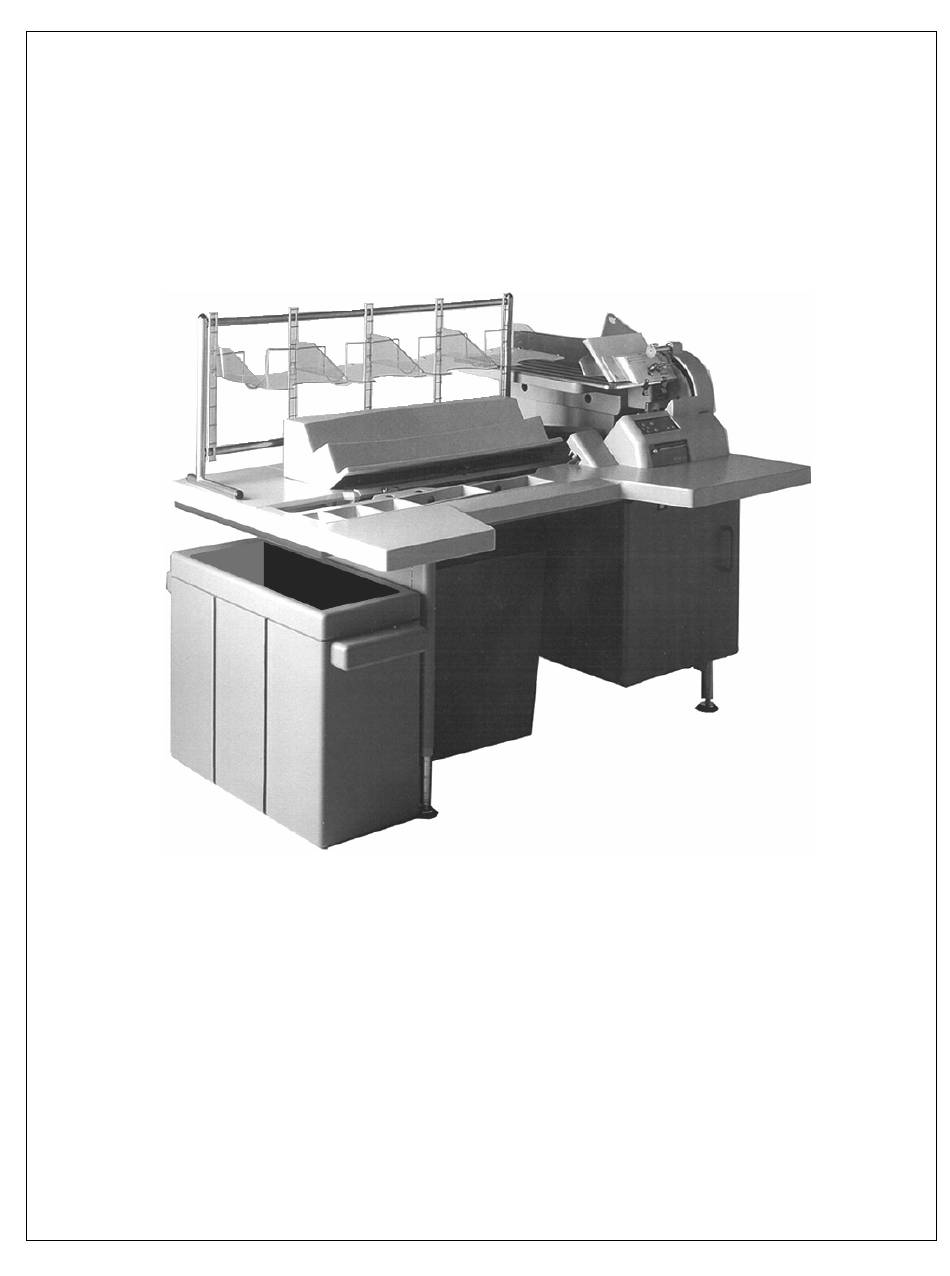

- Page 1 M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N OPEX MODEL 51 RAPID EXTRACTION DESK OPERATOR’S MANUAL...
-
Page 2: From The President Of Opex Corporation
We’ve placed an equal emphasis on speedy repairs. Twenty minutes, on average, is all the time it takes for an OPEX technician to complete a repair on a Rapid Extraction Desk, thanks to comprehensive training and some of the best diagnostic software in the industry. -
Page 3: Table Of Contents
Overview of Machine Operation ................8 Machine Controls ....................9 Operating Instructions..................10 PCC (Performance Control Center) Operator Screens ........11 Operating the Model 51 with PCC ..............12-13 Non-PCC Operation..................... 13 Troubleshooting ..................... 15, 16 Available Options for your Model 51............... 16-18 Ergonomic Chair Adjustments ................ -
Page 4: Safety Information
5. If you are under 5’ in height and your Model 51 is equipped with the optional pneumatic height adjustment, adjust the height of the Desk so that your feet rest on the floor. If your Model 51 is not equipped with the pneumatic adjustment, you may wish to place your feet on a footrest to provide greater comfort while operating the machine. - Page 5 M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N Be Safe! Don’t wear loose fitting clothing or jewelry when operating the OPEX Model 51. Keep hands, hair, loose clothing and jewelry away from moving parts.
-
Page 6: Functional Description
After an extraction is complete, the Model 51 can check the envelope to make sure that all contents have been removed. The Model 51 is typically equipped with adjustable shelves and a moveable content sort tray. Several... -
Page 7: Envelope Specifications
M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N ENVELOPE SPECIFICATIONS: • Maximum Envelope Height: ” • Maximum Envelope Length: 11 ½”... -
Page 8: Desktop Height Adjustment
O P E X C O R P O R AT I O N MODEL 51 DESKTOP HEIGHT ADJUSTMENT OPTION The Model 51 hydraulic height adjustment option allows you to set the height of the desktop work surface at precisely the right level for you! To raise or lower the desk, use the toggle switch located under the desktop on your right. -
Page 9: Machine Controls
The height of the Desk may be adjusted using the pneumatic height adjustment switch located to the right of the seated operator, and beneath the desktop. The Model 51 controls are located on the keypad to the right of the operator as indicated in the illustration below. -
Page 10: Operating Instructions
Pusher. Model 50 / 51 difference: The Model 51 does not require the mail to be justified to the left edge when loading. -
Page 11: Pcc (Performance Control Center) Operator Screens
O P E X C O R P O R AT I O N PERFORMANCE CONTROL CENTER (PCC) OPERATOR SCREENS The following screens are accessible by the Model 51 operator. An overview of these screens is listed below. Screens are described in detail on the following pages of this manual. -
Page 12: Operating The Model 51 With Pcc
Model 50 / 51 difference: Operator names may be sorted and displayed alphabetically on the Model 51. Up to 200 operators to be displayed on the Operator List. The same is true for Job List. Using the Input Buttons, move the cursor to highlight the desired operator. Press Enter. The new operator’s name will be displayed on the “Operator Main Menu”... -
Page 13: Non-Pcc Operation
NON-PCC OPERATION If your Model 51 is not equipped with the Performance Control Center, only the count will be displayed. When a jam occurs… If a jam occurs on your machine, the Jam Error screen will be displayed, followed by the Run screen shown... - Page 14 Model 50 / 51 difference: Heavily printed envelopes or privacy envelopes can be easily candled on the Model 51. The Model 51 candler verifier uses an actual thickness profile of the envelope to determine that the envelope is empty of contents. The candler on the Model 51 is supervisor adjustable by job.
-
Page 15: Troubleshooting
M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N TROUBLESHOOTING When the machine stops for a reason other than the operator canceling out of a job, the PCC will display an error message. -
Page 16: Available Options For Your Model 51
AVAILABLE ACCESSORIES FOR YOUR MODEL 51 Please Note: All of the accessories listed below may be purchased from OPEX and retrofit to Model 51s in the field. For a current pricing proposal, please call your OPEX Sales Engineer at (609) 727-1100. Accessories are described in detail below. -
Page 17: Ergonomic Chair Adjustments
Printer Paper (refill) Package of five rolls. (Part No. P24976-01) The OPEX Network Solution ONS links your OPEX mail-handling equipment to a Novell fileserver for remote access to your data. ™ This Windows -based program allows you to retrieve, consolidate, manipulate and format data. - Page 18 Mail Caddy holds four trays of mail inside a sleek, professional cabinet. Trays are in view of the Model 51 operator, immediately available as needed. The four shelves have the capacity to hold 5,000 pieces of mail.
-
Page 19: Certifications (Safety, Emissions, Generic Immunity)
M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N CERTIFICATIONS: PRODUCT SAFETY: USA/CANADA: UL 1955, 3rd Edition / CSA C22.2 No. 950-95, "Safety of Information Technology Equipment Including Electrical Business Equipment". -
Page 20: Declaration Of Conformity (Europe)
Carrington, Urmston Manchester M31 4DD England Type of Equipment: ..................Information Technology Equipment Model Number:..........................RED Model 51 Serial Number: ................................ Year of Manufacture: ............................. I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s). - Page 21 M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N N O T E S...
- Page 22 M O D E L 5 1 O P E R AT O R M AN U AL O P E X C O R P O R AT I O N N O T E S...
