Opex Pitnew Bowes Omation 2100 Operator's Manual

Cutter Adjustment
The 2100 will arrive with the cutter preset from the factory.
However, the cutter can be adjusted to accomodate differ-
ent mail thicknesses by turning the Cutter Adjustment Screw
(which can be accessed through the access hole- See pic
below). Turn off power to the 2100. Insert the supplied 5/32"
long-arm hex wrench through the small hole and engage the
Cutter Adjustment Screw. Turning the Cutter Adjustment Screw
clockwise will increase the depth of cut, turning the screw
counter-clockwise will decrease the depth of cut.
Cutter Adjustment Screw
Upper Transport Cover Removal/Replacement
The Upper Transport Cover (See Pic Below) may be removed
to facilitate cleaning of the 2100. To remove the Upper Trans-
port Cover, turn the machine off. Grasp the right end of the
Upper Transport Cover, pull upwards and remove. Reverse the
procedure to re-install the Upper Transport Cover. The 2100
will not operate until the Upper Transport Cover is properly
installed.
Upper Transport Cover
Adjusting the Separator Stones
The separator stones facilitate feeding and help to prevent
double-feeds. For most envelopes, set the stone pair .010 inch
above the top of feed belt level. You should be able to see light
between the stones and the belt. Set the stones slightly higher
for thick envelopes or slightly below the belt level for thin enve-
lopes.
1. Place yourself eye level with the belt and stones.
2. Find the access hole for adjusting screw in the centre
of the letter tray plate in the feed hopper (See pic in
next column).
3. Use a 5/32-inch hex key to adjust the separator
stones (See Pic Below).
Stone Adjustment Screw
Maintenance
Cleaning the 2100
Cleaning the 2100 should be performed daily after use.
1. Unplug the power cord.
2. Remove the Upper Transport Cover (See
previous column).
3. Remove and Empty the Chip Bin (See Chip
Bin Full information on previous page).
4. Vacuum loose paper chips from the machine.
5. Use a cloth moistened with liquid cleaner to
wipe down the exterior of the machine.
NOTE: Do not apply liquid cleaner directly to
the 2100.
6. Re-install Chip Bin and Upper Transport
Cover.
Specifi cations
Length: 102cm
Depth: 39cm
Height: 36cm
Weight: 28Kg
Power: 220-240 VAC, 50Hz, 3 Amps.
Speed: 400 Envelopes per minute
Envelopes Supported: All Main Envelope Sizes
Thickness: Up to 5mm
Depth of Cut: 0.25-2.5mm
Noise Level: <80 dBA
It is certified that the system complies with all
applicable Directives of the European Union.

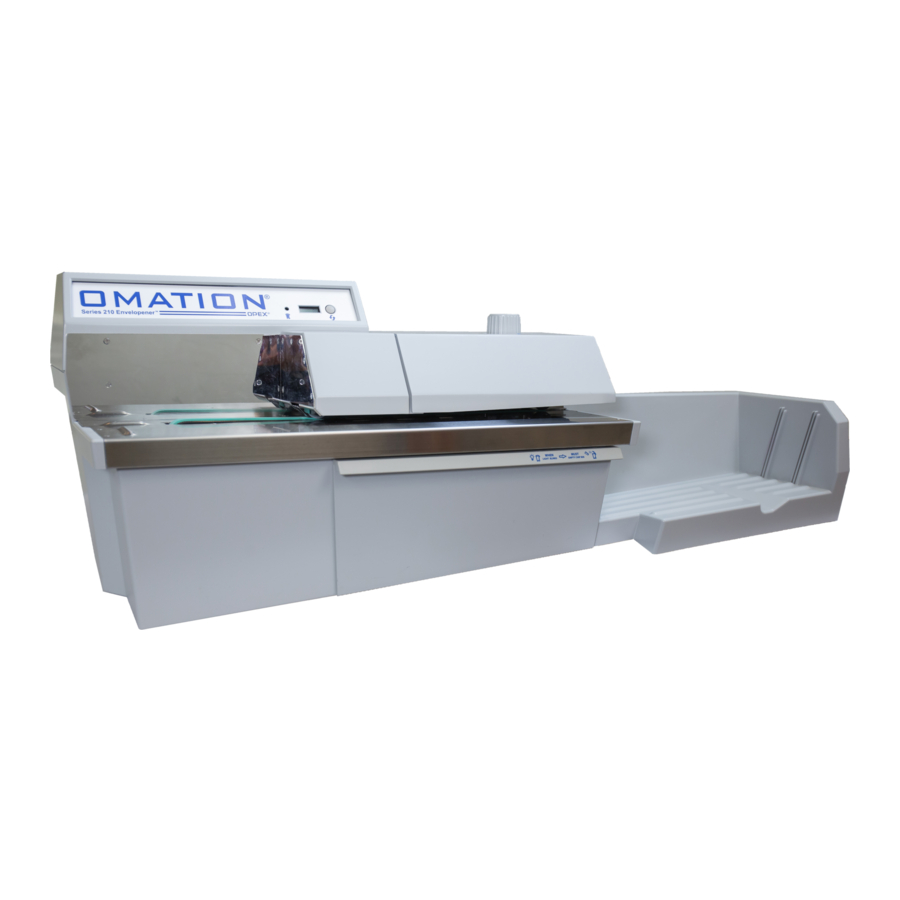

Opex Omation 2100
Letter Opener
Operator Guide
