IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Headboard
1 pc.
D.
Post
1 pc.
Hardware List
Wrench
1 pc.
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05507 0501

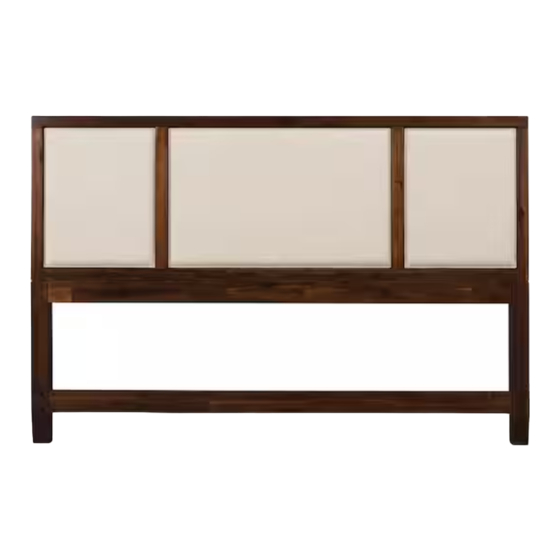

Queen Headboard
M8x80
Hex Wrench
Bolt
1 pc.
4 pcs. (+1 extra)
Small Hex Wrench
1 pc.
B.
Upper Stretcher
1 pc.
C.
Lower Stretcher
1 pc.
E.
Post
1 pc.
M8x60
Head Cap Bolt
6 pcs. (+1 extra)
Nut
Shaped Washer
4 pcs. (+1 extra)
10 pcs. (+1 extra)
888-680-7460, 877-831-0319
F.
Support
3 pcs.
M6x30
Head Cap Bolt (short)
12 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 20 05507 0501
Summary of Contents for Homestyles 20 05507 0501
- Page 1 12 pcs. (+1 extra) 1 pc. 4 pcs. (+1 extra) 6 pcs. (+1 extra) Wrench Small Hex Wrench Shaped Washer 1 pc. 1 pc. 4 pcs. (+1 extra) 10 pcs. (+1 extra) Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Wrench and Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 Shaped Washer STEP 4 Attach Headboard (A) to unit with Shaped Washers and Nuts, then tighten. (See Figure 3) Figure 3 Head Cap Bolt (short) STEP 5 Attach Supports (F) to unit with Head Cap Bolts (short), then tighten. (See Figure 4) Figure 4...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
