IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
D.
Rail
1 pc.
F.
Back Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05186 0015

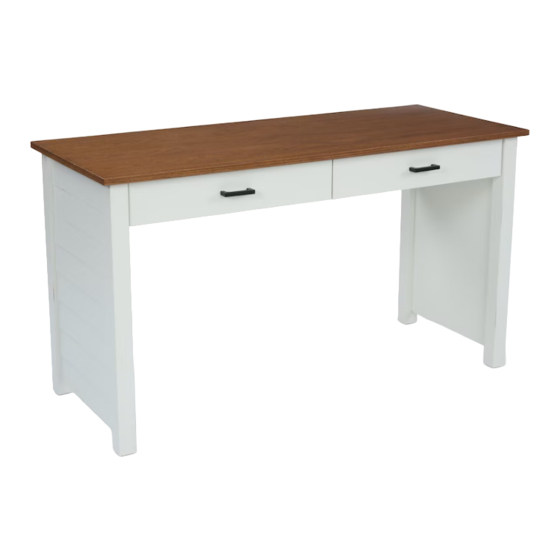

Writing Desk
E.
Divider
1 pc.
G.
Drawer
1 pc.
Refer to later page(s) of these instructions for drawer assembly.
M6x32
Head Cap Bolt
14 pcs. (+1 extra)
M3.5x25
Wood Screw
17 pcs. (+1 extra)
B.
Side Panel
1 pc.
H.
Drawer
1 pc.
Spring Washer
14 pcs. (+1 extra)
M5x32
Machine Screw
4 pcs.
888-680-7460, 877-831-0319
C.
Side Panel
1 pc.
Flat Washer
14 pcs. (+1 extra)
Handle
2 pcs.
Advertisement
Table of Contents
Related Manuals for Homestyles 20 05186 0015
Summary of Contents for Homestyles 20 05186 0015
- Page 1 14 pcs. (+1 extra) 14 pcs. (+1 extra) M5x32 M3.5x25 Small Hex Wrench Wood Screw Machine Screw Handle 1 pc. 17 pcs. (+1 extra) 4 pcs. 2 pcs. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/6 Lock Figure 2 Figure 3 Flat Washer Spring Washer Head Cap Bolt Wood Screw STEP 3 Attach Rail (D) to unit with Wood Screw, then flip Lock. (See Figures 2 and 3) Attach Side Panel (C) to unit with Head Cap Bolts, Spring Washers and Flat Washers, then flip Lock.
- Page 4 Assembly Instructions 4/6 Drawer (G) STEP 5 Attach Drawer Sides (G3) and (G4) to Drawer Back (G2) with Wood Screws. Roller at back Wood Screw STEP 6 Slide Drawer Bottom (G5) into groove. Attach Drawer Front (G1) to unit with Wood Screws.
- Page 5 Assembly Instructions 5/6 Drawer (H) STEP 8 Attach Drawer Sides (G3) and (G4) to Drawer Back (G2) with Wood Screws. Roller at back Wood Screw STEP 9 Slide Drawer Bottom (G5) into groove. Attach Drawer Front (H1) to unit with Wood Screws.
- Page 6 Assembly Instructions 6/6 STEP 11 Turn unit from Step 4 over to its upright position. Slide Drawers (G) and (H) into position. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 4) Note: Unit must be level to work properly.
- Page 7 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
