IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
B.
Base
1 pc.
I.
Top
1 pc.
J.
Shelf
1 pc.
O.
Back Rail
1 pc.
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05170 0049

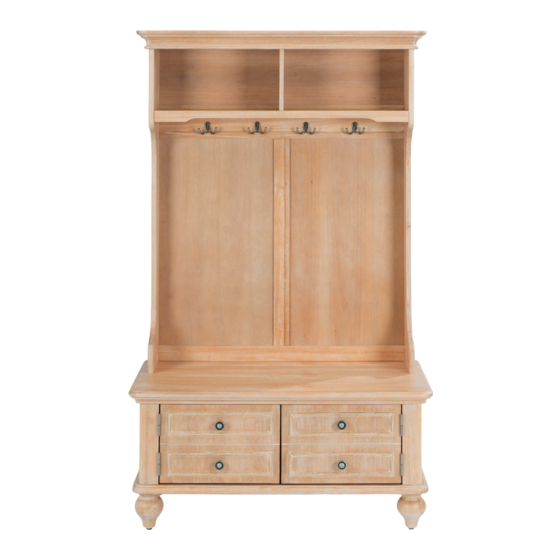

Hall Tree
E.
Back Panel
1 pc.
P.
Back Rail
1 pc.
Q.
Back Panel
1 pc.
C.
D.
Side Panel
Side Panel
1 pc.
1 pc.
Cam Lock Screw
14 pcs. (+1 extra)
M3x14
Wood Screw
Cam Lock
for Hook
14 pcs. (+2 extra)
8 pcs. (+1 extra)
K.
Side Panel
1 pc.
F.
Door
1 pc.
M6x45
Hook
Head Cap Bolt
4 pcs.
4 pcs. (+1 extra)
Magnet
1 pc.
888-680-7460, 877-831-0319
N.
Back Upright
1 pc.
L.
Side Panel
1 pc.
R.
G.
Back Panel
Door
1 pc.
2 pcs.
M3x14
Wood Screw
for Magnet
2 pcs. (+1 extra)
M4x22
Machine Screw
4 pcs.
M.
Divider
1 pc.
H.
Foot
4 pcs.
Knob
4 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05170 0049
Summary of Contents for Homestyles 20 05170 0049
- Page 1 Magnet Machine Screw 1 pc. 14 pcs. (+2 extra) 8 pcs. (+1 extra) 1 pc. 4 pcs. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/7 STEP 3 Turn unit to its’ upright position. Attach Doors (F) and (G) to unit by sliding door hinges into side panel hinges. (See Figure 3) Attach Knobs to Doors (F) and (G) with Machine Screws. (See Figure 4) Figure 3 Machine Screw Knob...
- Page 4 Assembly Instructions 4/7 STEP 5 Wood Screw for Hook Attach Hooks to Back Rail (O) with Wood Screws for Hook. (See Figure 6) Hook Figure 6 STEP 6 Attach Shelf (J) and Back Rails (O), (P) to Side Panel (K) with Cam Locks. (See Figure 7) Cam Lock Figure 7...
- Page 5 Assembly Instructions 5/7 Cam Lock STEP 8 Attach Side Panel (L) to unit with Cam Locks. STEP 9 Attach Seat (A) to unit with Head Cap Bolts. (See Figure 8) Attach Magnet to unit with Wood Screws for Magnet into pre-drilled holes. (See Figure 9) Figure 8 Figure 9 Magnet...
- Page 6 Assembly Instructions 6/7 STEP 10 Turn unit to its’ upright position. Attach unit to unit from Step 3, then flip the locks. Lock STEP 11 Attach Divider (M) to unit. Attach Top (I) to unit with Cam Locks. Cam Lock Level unit by adjusting the adjustable levelers on bottom of unit.
- Page 7 Assembly Instructions 7/7 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 12 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...
- Page 8 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
