IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

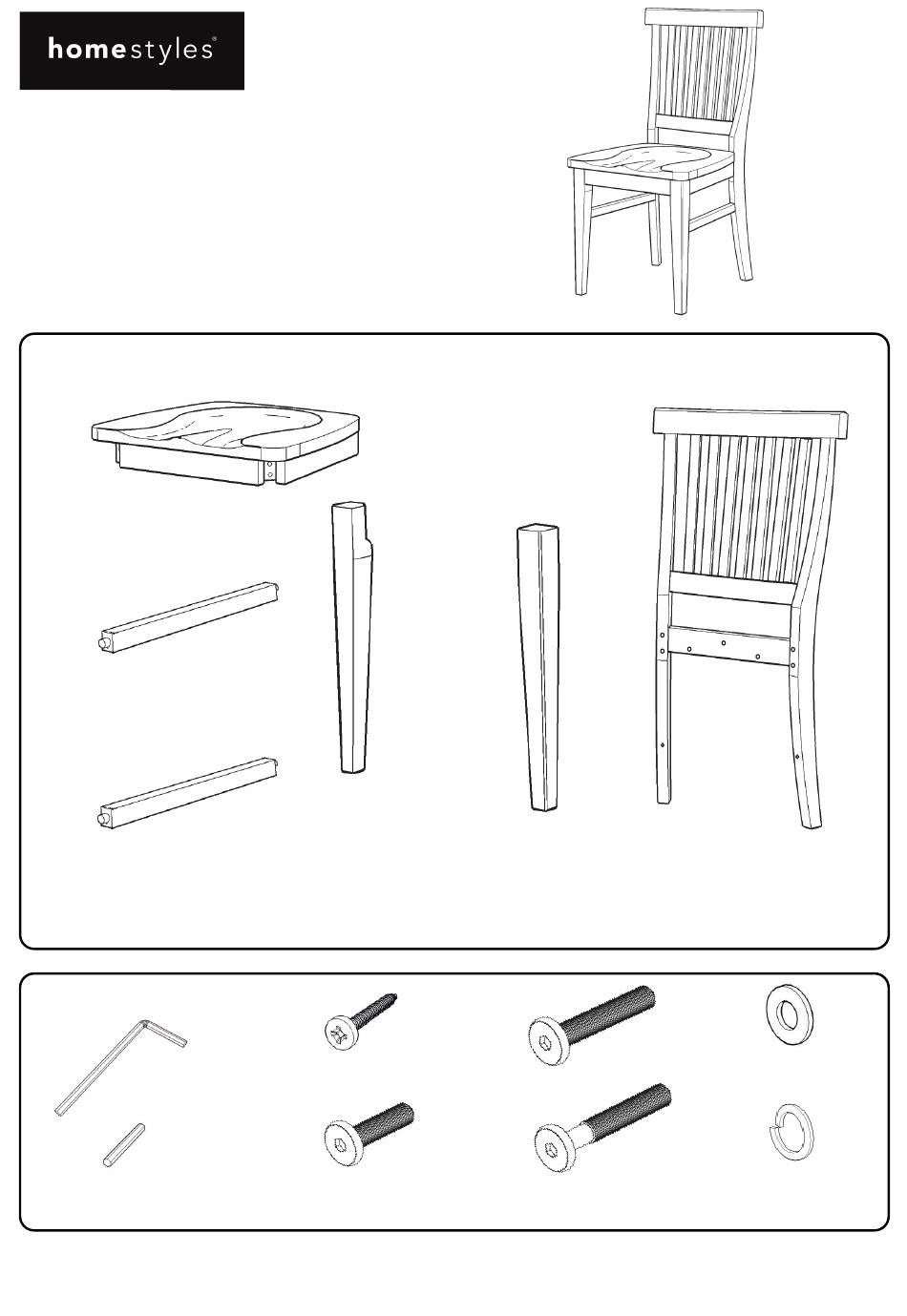

Part List
A.
Seat
1 pc.
E.
Side Stretcher
1 pc.
F.
Side Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly:
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05180 0080
Side Chair
B.
Leg
1 pc.
M3.5x40
Wood Screw
4 pcs. (+1 extra)
M6x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
Phillips screwdriver
C.
Leg
1 pc.
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Back Frame
1 pc.
Flat Washer
11 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)
