IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Back
2 pcs.
Hardware List
Hex Wrench
1 pc.
home
6801-401

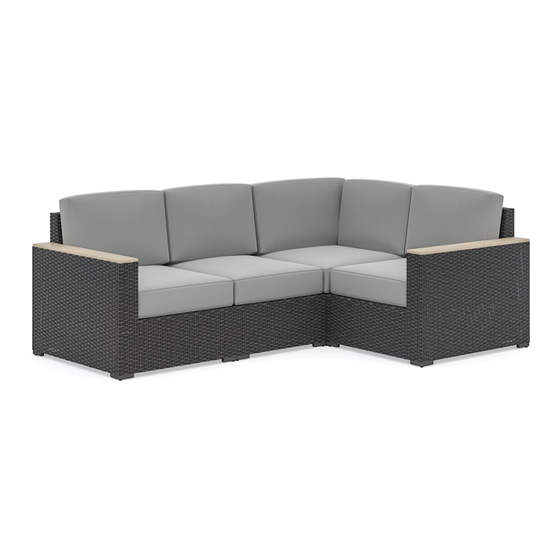

Sectional
B.
Seat
2 pcs.
C.
Side
2 pcs.
Small
Hex Wrench
1 pc.
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
O.
Back
1 pc.
D.
Frame
4 pcs.
M6x35
Head Cap Bolt
Spring Washer
64 pcs. (+1 extra)
64 pcs. (+1 extra)
888-680-7460
P.
Seat
1 pc.
E.
Foot
12 pcs.
Flat Washer
64 pcs. (+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 6801-401
Summary of Contents for Homestyles 6801-401
- Page 1 6801-401 Sectional IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions / 3 7 STEP 3 Attach Frame (D) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Tighten all bolts used in Steps 1, 2 and 3. Flat Washer Spring Washer Head Cap Bolt Head Cap Bolt Spring Washer Flat Washer...
- Page 4 Assembly Instructions / 4 7 Right Unit STEP 5 Attach Seat (B) to Back (A) with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Flat Washer Spring Washer Head Cap Bolt STEP 6 Attach unit to Side (C) with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
- Page 5 Assembly Instructions / 5 7 STEP 7 Attach Frame (D) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Tighten all bolts used in Steps , 6 and 7. Flat Washer Spring Washer Head Cap Bolt Head Cap Bolt Spring Washer Flat Washer...
- Page 6 Assembly Instructions / 6 7 Middle Unit STEP 9 Attach Seat (P) to Back (O) with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Flat Washer Spring Washer Head Cap Bolt STEP 10 Attach Frame (D) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
- Page 7 Assembly Instructions / 7 7 STEP 11 Attach Frame (D) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Tighten all bolts used in Steps 9, 10 and 11. Flat Washer Spring Washer Head Cap Bolt Head Cap Bolt Spring Washer Flat Washer...
- Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
