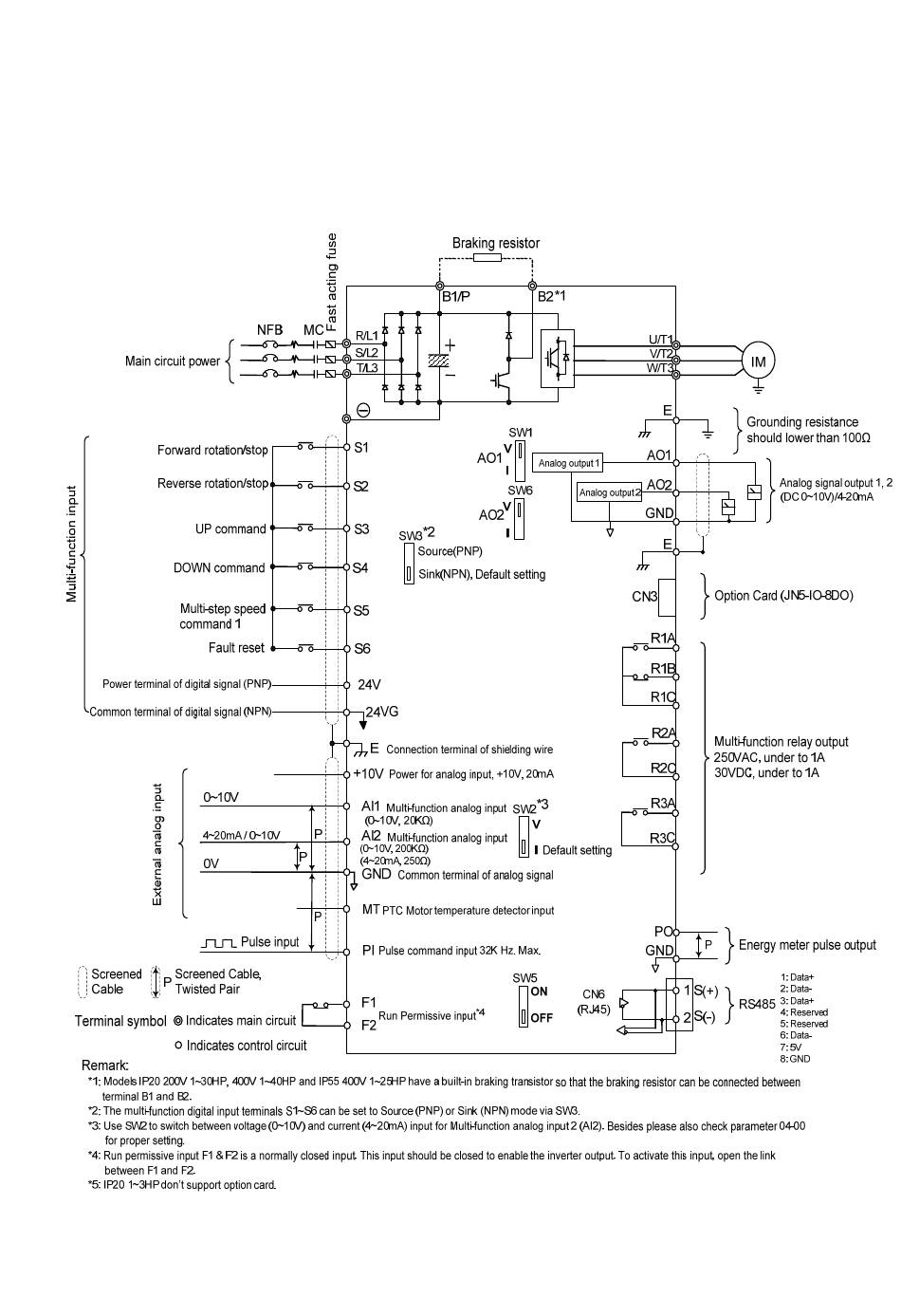

2.2 General Wiring Diagram
The following is the standard wiring diagram for the F510 inverter (◎ indicates main
circuit terminals and ○ indicates control circuit terminals ). Locations and symbols of the
wiring terminal block might be different due to different models of F510. The description of
control circuit terminals and main circuit terminals can be referred to Table 2.1, 2.2 and 2.3
5
