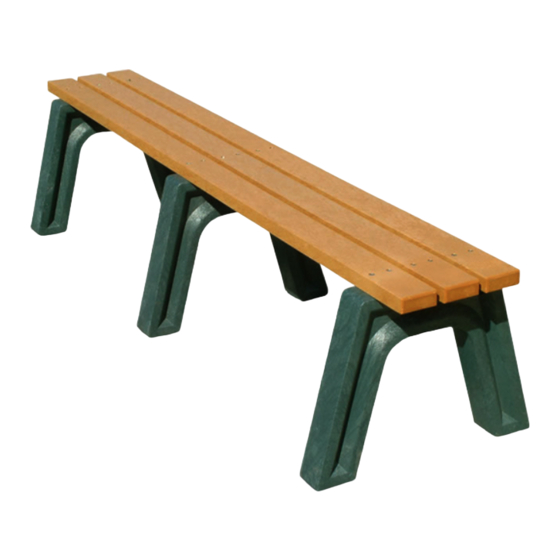

- Page 1 627 Amersale Drive Naperville, IL 60563 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # PLS6NB-P Instructions Sheet ECONO-MIZER BENCH www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK A - BENCH END ( 3 ) - BENCH END B - BENCH ( 3 ) - THREE BENCH BOARDS www.belson.com...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 18 - #12 X 2 1/2” FLAT HEAD PHILLIPS SCREW ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS: 1 - #3 PHILLIPS DRIVE BIT www.belson.com...
- Page 4 #12 X 2 1/2” FLAT HEAD PHILLIPS SCREW STEP #1: PLACE ( 1 ) ONE BENCH END IN POSITION AS SHOWN ABOVE BEING SURE TO ALIGN THE PRE-DRILLED HOLES TO THE PILOT HOLES IN THE BENCH BOARDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 2 1/2”...
- Page 5 #12 X 2 1/2” FLAT HEAD PHILLIPS SCREW STEP #2: REPEAT STEP #1 FOR THE REMAINING ( 2 ) TWO BENCH ENDS IN THE POSITIONS SHOWN ABOVE BEING SURE TO ALIGN THE PILOT HOLES TO THE PRE-DRILLED HOLES IN THE BENCH BOARDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 2 1/2”...
- Page 6 #12 X 2 1/2” FLAT HEAD PHILLIPS SCREW STEP 3: REPEAT STEPS #1 AND #2 TO FASTEN THE REMAINING ( 2 ) TWO BENCH BOARDS IN POSITION AS SHOWN ABOVE. BE SURE TO ALIGN THE PRE-DRILLED HOLES TO THE PILOT HOLES IN THE BENCH ENDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 1/2”...
