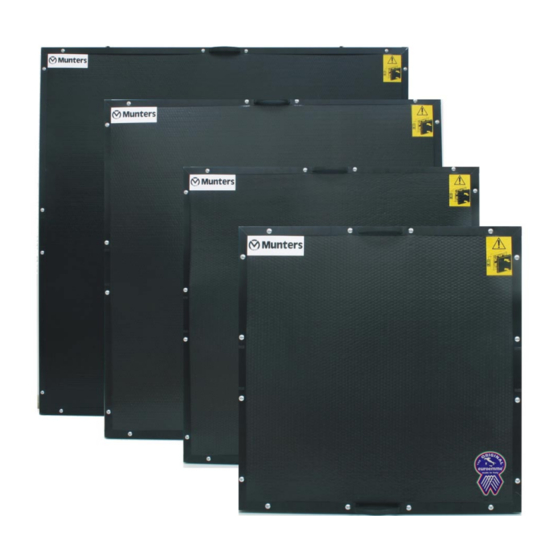

- Page 1 User’s Guide panels FI fan insulation panels HC/MIT/UgGB-0560-11/05 © Munters Europe AB 2005...
-
Page 2: Table Of Contents
Technical specifications....................9 Dimensions........................9 Warranty..........................10 HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 1(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 3: Introduction
Avoid using sharp objects for opening the packaging. HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 2(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 4: Structure
Four quick release latches are used for mounting HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 3(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 5: Installation Of The Panels
Figure 2 Figure 3 Figure 4 HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 4(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 6: Mounting Of The Panels
With the other hand, place the ring of the latch over the hook installed on the fan as shown in figure 10. HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 5(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 7: Mounting Of Drainage Seals
4. A tight seal should be formed as shown in figure 15. HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 6(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 8: Dismounting Of The Panels
5. Store the panel in a safe place until the next season. HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 7(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 9: Safety Aspects
This will eliminated the possibility of a controller switching on the fans while the panels are mounted. HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 8(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 10: Technical Data
FI50 Dimensions [mm] 1092 1382 1092 1382 HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 9(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... -
Page 11: Warranty
HC/MIT/UgGB-0560-11/05 User’s Guide – FI Fan Insulation Panels 10(12) © Munters Europe AB, 2005 Munters reserves the right to make alterations to specifications, quantities, etc. for production or other reasons, subsequent to publication... - Page 12 Sweden, Phone +46 (0)8-626 63 00, Fax +46 (0)8-754 56 66, Finland Munters Oy, Phone +358 (0)9-83 86 0330, Fax +358 (0)9-83 86 0336, France Munters France S.A., Phone +33 (0)1-34 11 57 50, Fax +33 (0)1-34 11 57 51, Germany Munters Euroform GmbH, Phone +49 (0)241-89 000, Fax +49 (0)241-89 005 189, Italy Munters Italy S.p.A., Phone +39 0183-52 11, Fax +39 0183-521 333, Kingdom of Saudi Arabia and Middle East Hawa Munters, c/o Hawa United Cooling Syst.
