Professional Radio Control
204
•
Ready to Use Remote Control
•
4, 8/16 Channel Systems
•
Range:
Upto 200 metres at 433MHz
Upto 1,000 metres at 433MHzNB.
•
Relay Outputs: Momentary, Latching, Timed
•
Receiver IP65

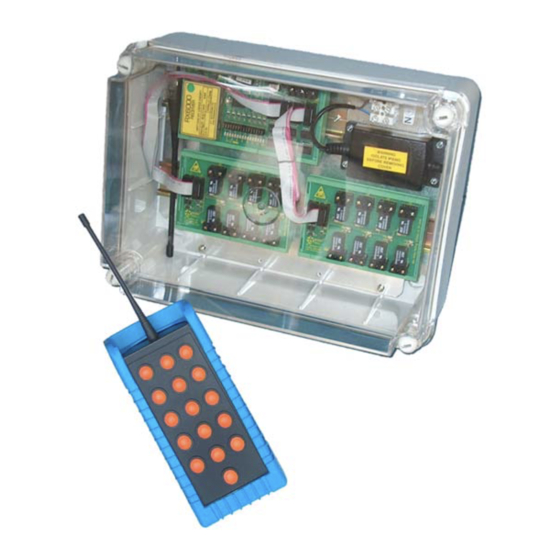

Available as 4 - 16 channels The professional Range are ready to operate general purpose
remote control systems using a highly secure transmission protocol for reliable operation.
The receiver unit consists IP65 enclosure with power supply. All circuitry is industrial standard
'DIN Rail' Modules (interchangeable). Other modules with higher switching capability are
available.
The relay outputs may be user set to operate as latching or momentary. Output 1 may be set to
timed from 1-15minutes.
Additional transmitters are easily added using the easy learn procedure. Any transmitter switch
can be mapped to any individual or combination of receiver output(s).
DS200PRO-1 Aug '05
©2005 RF Solutions Ltd, www.rfsolutions.co.uk
205
Applications
•
Lighting Control
•
General Purpose Remote Switching
•
Door Control
•
Industrial remote Switching
•
Access Control
Page 1
PRO
Series
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS PRO Series
Summary of Contents for RF SOLUTIONS PRO Series

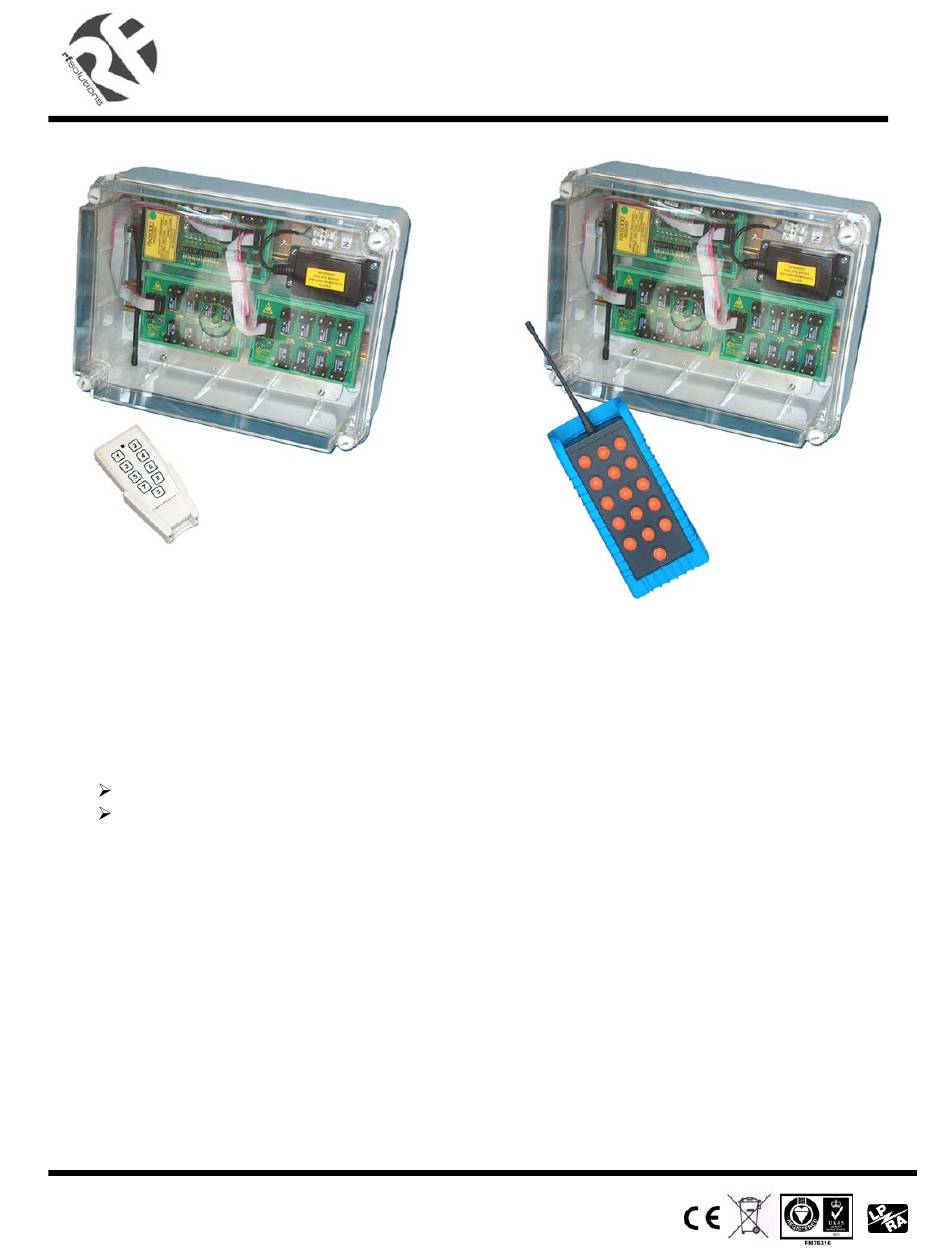

- Page 1 The relay outputs may be user set to operate as latching or momentary. Output 1 may be set to timed from 1-15minutes. Additional transmitters are easily added using the easy learn procedure. Any transmitter switch can be mapped to any individual or combination of receiver output(s). DS200PRO-1 Aug ’05 ©2005 RF Solutions Ltd, www.rfsolutions.co.uk Page 1...
- Page 2 Unit 21, Cliffe Industrial Estate, South Street, Lewes, E. Sussex, BN8 6JL, England Tel +44 (0)1273 898 000 Fax +44 (0)1273 480 661 Email sales@rfsolutions.co.uk http://www.rfsolutions.co.uk RF Solutions is a member of the Low Power Radio Association DS200PRO-1 Aug ’05 ©2005 RF Solutions Ltd, www.rfsolutions.co.uk Page 2...
- Page 3 Information contained in this document is believed to be accurate, however no representation or warranty is given and R.F. Solutions Ltd. assumes no liability with respect to the accuracy of such information. Use of R.F.Solutions as critical components in life support systems is not authorised except with express written approval from R.F.Solutions Ltd. DS200PRO-1 Aug ’05 ©2005 RF Solutions Ltd, www.rfsolutions.co.uk Page 3...
- Page 4 4. Release the learn button and all the output LED’s 1-16 will now flash alternately to indicate that all encoder data has been erased and the 21Rx has returned to factory default state. Note: It is not possible erase individual transmitters. DS200PRO-1 Aug ’05 ©2005 RF Solutions Ltd, www.rfsolutions.co.uk Page 4...
-
Page 5: Signal Integrity
In such circumstances it is the responsibility of the installer to ensure that the system performance is adequate for the purposes of the installation. DS200PRO-1 Aug ’05 ©2005 RF Solutions Ltd, www.rfsolutions.co.uk Page 5... -
Page 6: Technical Specifications
Supply Current : Quiescent Time from Tx Switch depressed to 210Rx output mSecs Time from Tx Switch release to Decoder output mSecs Switched output Voltage (I out = 1mA) Logic Low Logic High DS200PRO-1 Aug ’05 ©2005 RF Solutions Ltd, www.rfsolutions.co.uk Page 6...
