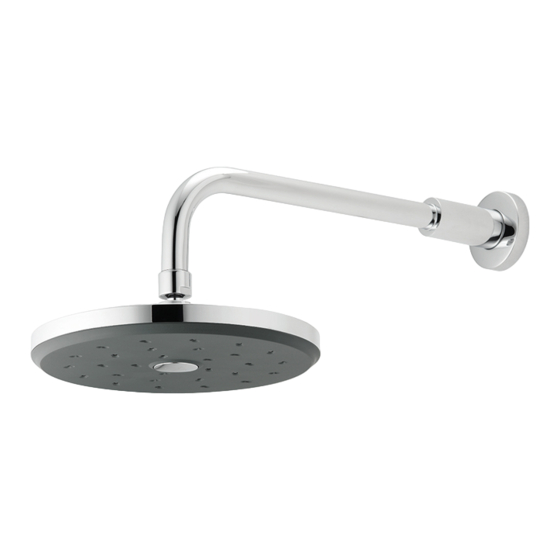

METHVEN KIRI SATINJET 13-7602 Installation Manual

NOTE - If assembling a showerhead to a pre-existing arm skip to step 3
4.
97-9536
Tilt and rotate the shower head to the desired position.
Methven Australia Pty Ltd
ABN 15 104 813 390
We recommend that this product is installed by a licensed plumber.
Melbourne, Australia
www.methven.com
1.
FOR WALL ARM - RECOMMENDED MINIMUM HEIGHT
2100mm FROM FLOOR LEVEL
Trim Ring
Arm
Wall
Slide chrome trim ring onto the appropriate end of
the arm. Screw the arm onto the ½" connection
using plumbers tape or similar to ensure a reliable
seal.
For ceiling instruction follow
same procedures.
July 2012
SATINJET WALL/CEILING DRENCHER
2.
INSTALLATION GUIDE
Vertical
13-7701
13-7602
Position the arm vertically and push trim ring into
place.
CLEANING
Water may contain lime which remains on the surface
after the water has evaporated. These lime deposits
can be prevented from forming by wiping
immediately after use.
Do not use any
sharp objects to
clean nozzles
THE METHVEN GUARANTEE
The warranty statement shall apply to all tapware & showers supplied by Methven
www.methven.com
For more information visit www.methven.com
THIS WARRANTY ISSUED BY: Methven Australia Pty Ltd, Melbourne Australia
3.
Filter Washer
Ball Joint
13-7503 OSQ230CPAU
Remove the protective cap from the showerhead ball
joint and screw the unit onto the wall/ceiling arm
ensuring the filter washer is in place.
To clean the chrome-plated surfaces use a soft
cloth, soap and warm water. Never use cleaning
agents that contain a corrosive acid or a scouring
additive.
Clean filter washer
periodically.
